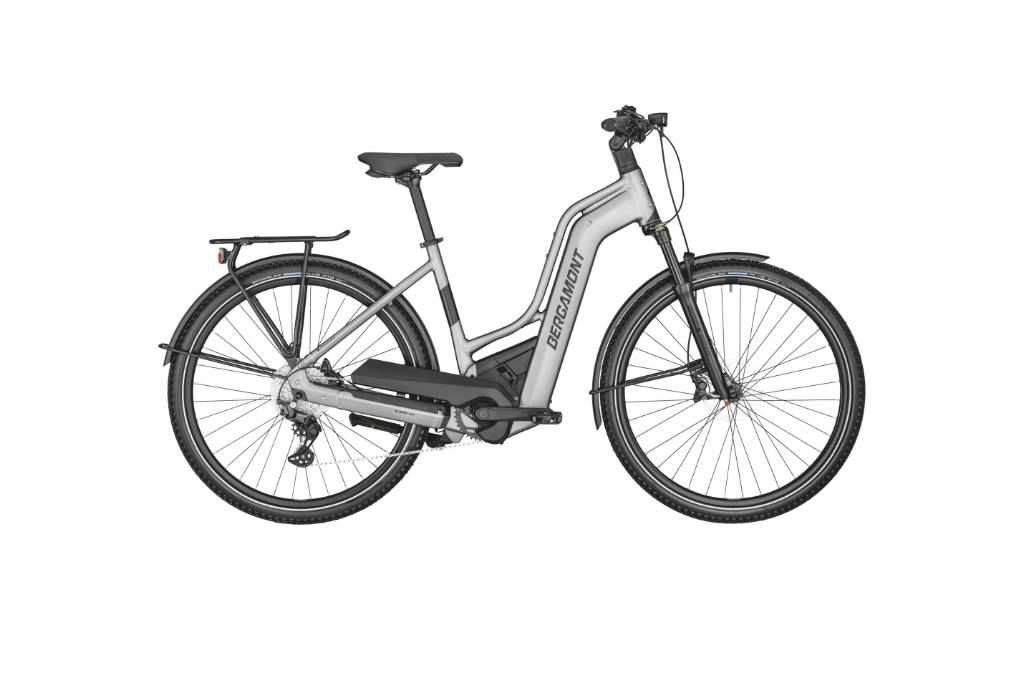

Bergamont E-Horizon Premium Suv Amsterdam
Bergamont E-Horizon Premium Suv Amsterdam
Bergamont E-Horizon Premium Suv Amsterdam
Think bigger, ride better: bigger battery, wider tires, seamless integration, unapologetic design: with the E-HORIZON PREMIUM SUV you ride an almighty bike with high-end technology and modern looks, perfectly at home on any terrain.
MAIN FEATURES
- The new frame design combines years of trekking and MTB know-how to create a versatile e-bike with excellent on- and off-road capabilities
- Dedicated groupset for Shimano Deore e-bikes with increased durability
- Shimano BR-MT420 4-piston hydraulic disc brake
- Schwalbe Marathon Plus MTB tyres, puncture-resistant and durable
- Marwi non-slip pedals
- The brand new Bosch Smart system with Performance Line CX drive unit
- Integrated 750 Wh Bosch battery
-
Bosch LED remote control
Specifications
-
CHASSIS
28", Super lite AL-6061 tubing, BES III, PowerTube battery
-
FORK
Suntour Mobie 25, RLR DS, 100 mm, 15x100 mm axle
-
MOTOR
Bosch Performance Line CX, Gen. 4, BES3, 250 W, 36 V, max. 25 km/h
-
DRUMS
Bosch PowerTube, 36V Li Ion, 750Wh
-
SCREEN
Bosch LED Remote
-
REAR DERAILLEUR
Shimano Deore Linkglide, RD-M5130, Shadow Plus
-
GEAR LEVERS
Shimano Deore Linkglide, SL-M5130, 1x10-speed, rapidfire plus-shifter
-
CRANKSET
FSA CK-320, 38t
-
CENTRAL MOVEMENT
Bosch, Isis
-
CHAIN
Shimano CN-LG500
-
CASSETTE
Shimano CS-LG600-10, 11-43t
-
BRAKE LEVERS
Shimano BL-MT402, hydraulic disc brake
-
BRAKES
Shimano BR-MT420, hydraulic disc brake, 4-piston
-
BRAKE DISC
Shimano SM-RT54, 180mm
-
HANDLEBAR
BGM Pro, riserbar, backsweep: 15°, rise: 5 mm
-
HANDLEBAR STEM
Satori Python, adjustable
-
SEAT POST
BGM Pro
-
SADDLE
Syncros Capilano Urban, gel
-
HEADSET
Acros, A-Headset, semi-integrated, 1.5", with integrated cable routing
-
FRONT HUB
Shimano HB-MT400, centerlock, disc, 15x100 mm axle
-
REAR HUB
Shimano, centerlock, disc, quick release
-
RAYS
Sapim Leader
-
CIRCLE
Ryde Rival 23 disc, eyelets
-
FRONT TIRE
Schwalbe Marathon Plus MTB, Smart Guard, Twin Skin, reflective stripe, 54-622
Tube: Schwalbe AV19
-
REAR TIRE
Schwalbe Marathon Plus MTB, Smart Guard, Twin Skin, reflective stripe, 54-622
Tube: Schwalbe AV19
-
LIGHTS
Front: B&M Myc, 50 Lux, LED
Rear: B&M Toplight Line brex, LED, with brakelight
-
LUGGAGE RACK AND FENDER
Fender: Racktime Alumee
Carrier: Racktime / BGM Trekking Pro, Snapit 2.0 System, integrated fender mount
-
PEDALS
Marwi SP-890 Sandblock
-
ACCESSORIES
Kickstand: Syncros
-
WEIGHT IN KG (APPROX.)
28.9
-
COLOR
chrome silver (matt)
-
FRAME SIZE
44/48/52/56 cm
-
CHAIN COVER
Integrated in motor cover
-
KNOBS
BGM Comfort, Ergo, double density, clamp version
-
TOTAL WEIGHT
160.0kg
The overall weight includes the bike, the rider, the equipment and possible additional luggage.
