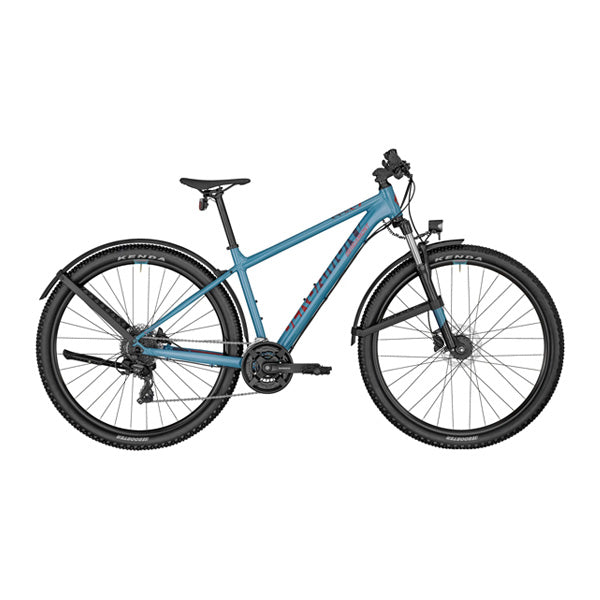

Bergamont Revox 3 EQ

Versatile hardtail mountain bike with high-end road-approved components. Revox frame with updated geometry, increased tire clearance and better fender and kickstand compatibility.

Specifications

29" frame in sizes XS and S (27.5"), lite AL-6061 tubing

---

Suntour XCE28 DS fork, 100 mm, preload adjust

---

Shimano RD-TX800 rear derailleur

---

Shimano FD-TY700 front derailleur

---

Shimano SL-M315 gear levers, 3x8-speed, rapidfire-plus-shifter

---

Shimano FC-TY301 crankset, 42/34/24t

---

Shimano BB-UN101 Bottom Bracket, BSA

---

KMC Z8 chain

---

Sunrace CS-M55 cassette, 11-34t

---

Shimano BL-MT200 brake levers, hydraulic disc brake

---

Shimano BR-MT200 brakes, hydraulic disc brake

---

Shimano SM-RT10 brake disc, 160 mm

---

BGM Comp handlebar, riser bar, width: 700 mm

---

BGM Comp stem, +/-6°

---

BGM Comp-E seatpost

---

Syncros Tofino 2.5 saddle

---

Headset BGM FP-H807B, A-Headset, semi-integrated, 1 1/8"

---

Front hub Shimano dynamo hub, DH-3D37, centerlock, disc

---

Shimano rear hub, centerlock, disc, quick release

---

Steel spokes, black

---

Alex X20 rim, disc, width: 20 mm

---

Front tire Kenda Booster, 29x2.40" (27.5x2.40")Tube: Impac SV29

---

Rear tire Kenda Booster, 29x2.40" (27.5x2.40")Tube: Impac SV27

---

Lights Front: Herrmans H-Black MR4, LED, standlightRear: Herrmans H-Trace, LED, standlight

---

Mudguard: Syncros

---

Feimin FP-803 PEDALS

---

Kickstand accessories: Atran Parko BGM, alloy, adjustable

---

Weight in kg (approx.) 16.4

---

Color Caribbean Blue (shiny)

---

Frame size XS7/S7/M7/M9/L9/XL9/XXL9

---

Syncros MTB grips

---

Permissible total weight 115.0 kg

-

We reserve the right to change information on the website without notice, including specifications, models, colors and materials.
