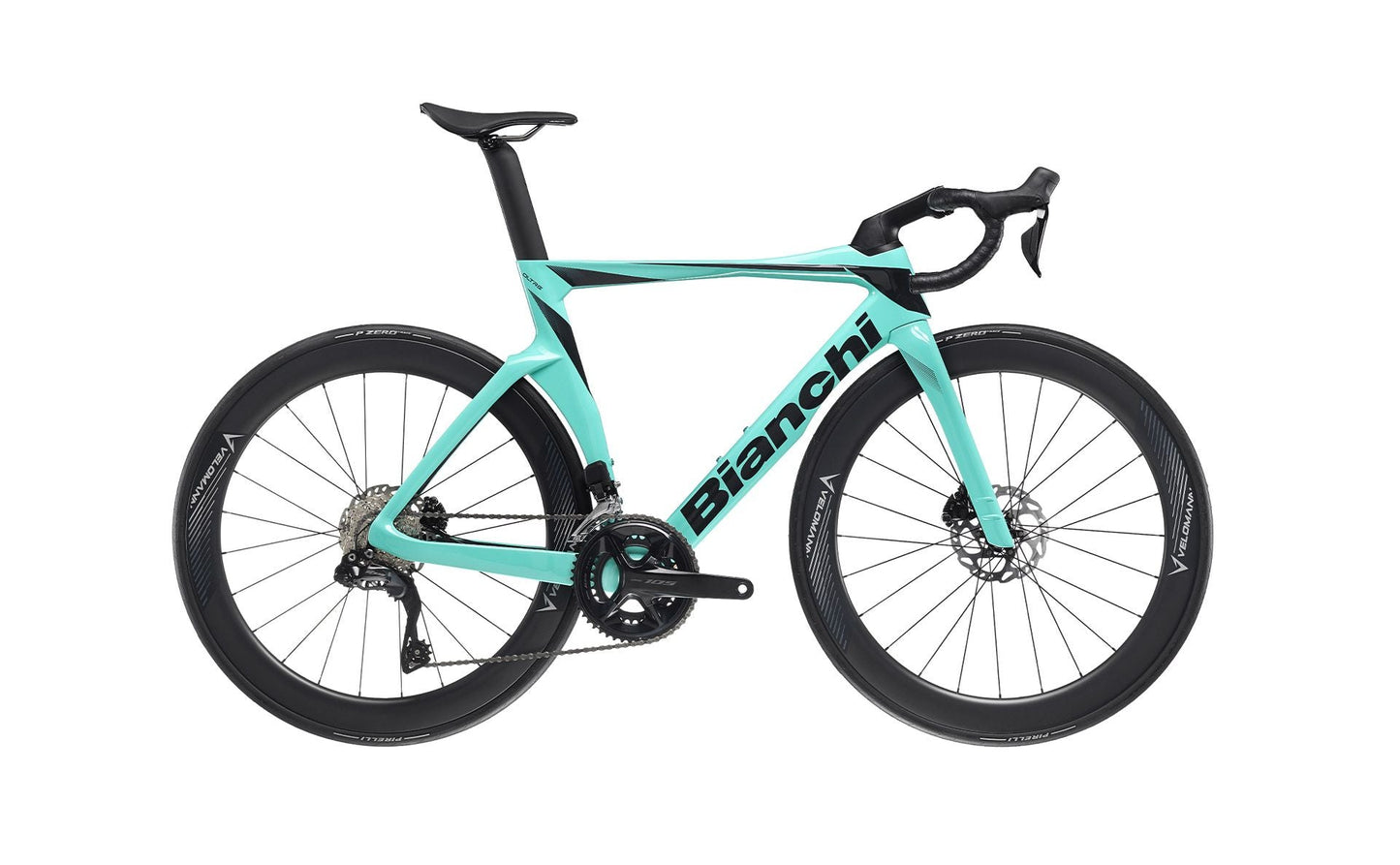

Bianchi Oltre Comp
Bianchi Oltre Comp
Oltre represents the gateway to Bianchi's newly created aero collection. Derived from the superior Pro and RC versions, the Oltre model is designed for a broader type of cyclist but always looking for the thrill of speed.
Pedaling beyond all limits. Designed for extreme competition performance, the carbon frames belonging to the Racing category ensure maximum power transmission with the best ratio between lightness and rigidity.
Specifications
FRAME SET
FRAME Oltre Comp, carbon, disc brakes, electronic and mechanical shifting compatible, internal cable routing 1.5-1.5 headset, BB-PressFit 86.5x41, flat mount brakes, 12x142mm thru axle sizes 47-50-53-55-57- 59cm
FORK Aero full carbon, disc brakes, 1.5" integrated head, 12x100mm thru axle, compatible with 700x30 tire
HEADPHONE Fsa TH-073E ACB 1.5" 51.8x40x8
TRANSMISSION
CHANGES Shimano 105 Di2 road hydraulic disc brake, ST-R7170, BR-R7170, for 160 mm rotor
REAR DERAILLEUR Shimano, 105 Di2 RD-R7150, 12 speed
FRONT DERAILLEUR Shimano 105 Di2, FD-R7150 12 speed
CRANKSET Shimano 105 12v, FC-R7100, Ultegra Hollowtech 2, for rear 12 speed, 50x34T, Crank length: 170mm-47/53cm, 172.5mm-55/59cm
LOWER BRACKET Shimano, SM-BB72-41B, road press fit, bearing, inner cover
CHAIN Shimano, 105 12 speed, CN-M7100
BRAKES
BRAKES Shimano BR-R8170 hydraulic disc brake, included in the gearbox
ROTOR Shimano rotor for center lock disc brake, 160mm
WHEELS
WHEELS Velomann Carbon V50R 50mm profile, 700x21c, HG body, UD carbon fiber, tubeless ready and clincher, internal width: 21 mm, weight per set: 1,630 g
TIRE Pirelli P7, 700x28c, 60TPI
STEM WELL Velomann Aero stem, alloy material, Oversize, 1.1/8", size: 90mm-47/50cm, 100mm-53cm, 110mm-55/57cm, 120mm-59cm
HANDLEBAR
Velomann Aero Compact handlebar, alloy diam. 31.8mm, 74mm reach, 116mm drop, for completely internal cable routing Dimensions: 400mm-47~53cm, 420mm-55~59cm
GRIPS Velo soft Velo soft Microfibre tape, black tape, black
SADDLE
SEAT POST Oltre Full Carbon Aero seat post special size, 20mm offset, length: 280mm-47cm, 300mm-50/53cm, 350mm-55/59cm
Velomann Mitora139 Hyper SADDLE, open flow, carbon rails, carbon reinforced nylon, Large 139mm Length 250mm
*The manufacturer reserves the right to change information on the website without notice, including specifications, models, colors and materials.
*Images are for indicative purposes only and may not correspond to the product description.
GEOMETRY
SIZE | TO | B1 | C | D | AND | F | G | G1 | H | THE | X | Y | WB |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
470 | 450 | 515 | 410 | 58 | 83 | 579 | 74.5° | 70.5° | 43 | 368 | 385 | 470 | 982 |
500 | 480 | 525 | 410 | 58 | 88 | 581 | 74.5° | 71.5° | 43 | 368 | 392 | 478 | 983 |
530 | 510 | 536 | 410 | 68 | 103 | 582 | 74° | 72° | 43 | 368 | 393 | 504 | 984 |
550 | 530 | 550 | 410 | 68 | 118 | 588 | 73.5° | 72.5° | 43 | 368 | 397 | 520 | 988 |
570 | 550 | 560 | 412 | 68 | 133 | 593 | 73.5° | 73° | 43 | 368 | 402 | 536 | 996 |
590 | 570 | 575 | 412 | 68 | 153 | 603 | 73° | 73° | 43 | 368 | 406 | 555 | 1005 |
