Cervelo

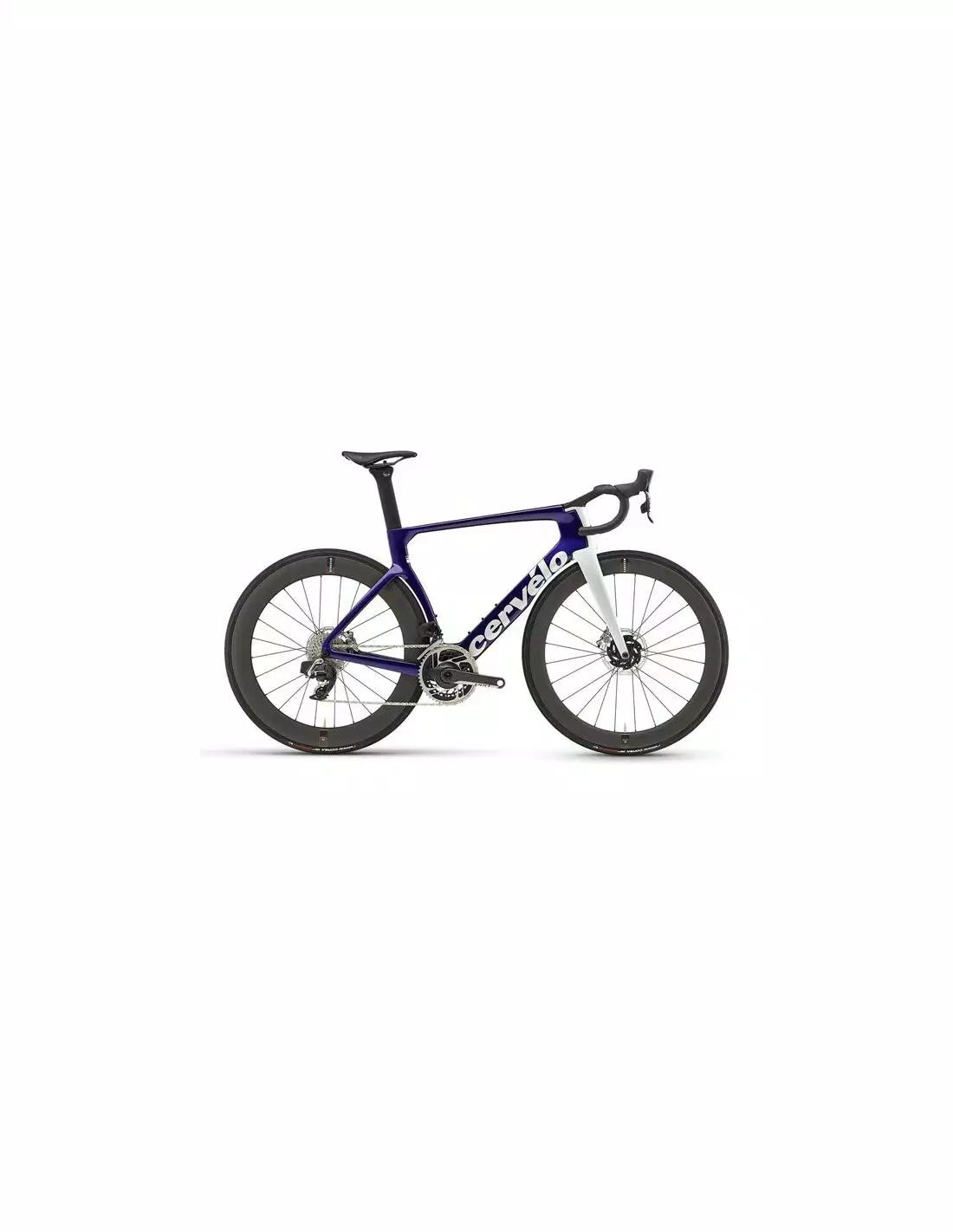

Cervelo S5 - Sram Red eTap AXS 12v
Cervelo S5 - Sram Red eTap AXS 12v
The new S5 has reduced drag by 65 grams and increased chassis surface area, while reducing overall weight. More pronounced frame sections maximize the shapes allowed by the UCI. The iconic V-mount has been further refined and the new fork has been designed to simplify the entire front end.
Additionally, a revolutionary new wheel design concept was developed in collaboration with Reserve to increase stability and reduce aerodynamic drag in turbulent conditions.
Specifications
Fork: Cervélo full carbon, tapered S5
Headset: FSA IS2 1-1/8 x 1-3/8
Thru axles: Cervelo Aero thru axles, 12x100/142
Wheels Rear: Reserve 63, 24.4mm IW, Zipp ZR1 SS, 12x142mm, XDR freehub, 24h, centerlock, tubeless compatible Front: Reserve 52, 25.4 IW, Zipp ZR1 SS, 24H, centerlock, tubeless compatible
Tyres: Vittoria Corsa TLR G 700x28c
Crankset: SRAM Red eTap AXS, 48/35T, DUB, with power meter
Bottom bracket: SRAM DUB Ceramic, BBluminous
Chain: SRAM Red, 12 speed
Front derailleur: SRAM Red eTap AXS, 12-speed
Rear derailleur: SRAM Red eTap AXS, 12-speed
Cassette: SRAM red, 10-33, 12-speed
Gear: SRAM Red eTap AXS, 12 speed
Handlebar: Cervelo HB14 Carbon
Stem: Cervelo ST35 Carbon
SRAM Red brake calipers
Saddle: Selle Italia NOVUS BOOST EVO SuperFlow Carbon
Seatpost: Cervelo SP20 Carbon
Brake Rotor: SRAM CLX R Centerlock
*The manufacturer reserves the right to change information on the website without notice, including specifications, models, colors and materials.
*Images are for indicative purposes only and may not correspond to the product description.
GEOMETRIES
48 | 51 | 54 | 56 | 58 | |
---|---|---|---|---|---|
Reach | mm | 367 | 376 | 384 | 392 | 401 |
Stacks | mm | 496 | 519 | 542 | 565 | 588 |
Head Tube Angle | 71st | 72° | 73° | 73.5° | 73.5° |
Front Center | mm | 579 | 580 | 581 | 588 | 604 |
Bottom Bracket Drop | mm | 72.5 | 72.5 | 70 | 70 | 67.5 |
Head Tube Length | mm | 69 | 87 | 109 | 130 | 157 |
Top Tube Length | mm | 520 | 535 | 550 | 565 | 581 |
Seat Tube Angle | 73° | 73° | 73° | 73° | 73° |
Standover Height | mm | 715 | 736 | 754 | 782 | 813 |
Trail | mm | 56.1 | 56.1 | 56.2 | 56.2 | 56.2 |
Wheel Size | 700C | 700C | 700C | 700C | 700C |
Fork Offset | mm | 58 | 52 | 46 | 43 | 43 |
Wheelbase | mm | 973 | 974 | 975 | 982 | 999 |
Chainstay Length | mm | 405 | 405 | 405 | 405 | 405 |
