Focus

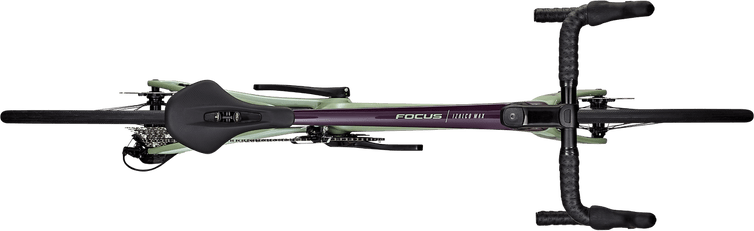

Focus Izalco Max 8.8
Focus Izalco Max 8.8
-
AERO IMPROVEMENTS
Wind tunnel-approved NACA (National Advisory Committee for Aeronautics) shapes make our frame highly aerodynamic. At the same time, the frame weighs just 1050g for the 8.series (size M) with an additional 400g for the fork. Our CIS hides the cables under the stem. It also comes with a built-in computer mount for both Wahoo and Garmin.
-
7 SIZES FOR A PERFECT FIT
IZALCO MAX is available in seven sizes. In combination with the stem, which we offer in six lengths from 70 to 120 mm, it really has all the sizes for each of you.
-
EFFORTLESS HANDLING AND MAXIMUM STIFFNESS
To help you get that extra power on the road, the bottom bracket is optimized for stiffness and the fork for lateral stiffness. Coupled with bold geometry for easier cornering, especially at high speeds, the IZALCO MAX is the road bike for all ambitions.
Specifications
GEOMETRIES
XXS | XS | S | M | L | XL | XXL | ||
---|---|---|---|---|---|---|---|---|
DIMENSION (MM) | 47 | 50 | 52 | 54 | 56 | 58 | 61 | |
CUT | 470 | 500 | 520 | 540 | 560 | 580 | 610 | |
HANDLEBAR WIDTH (MM) | 400 | 400 | 400 | 420 | 420 | 420 | 440 | |
HANDLEBAR STEM LENGTH | 80 | 90 | 100 | 110 | 110 | 120 | 120 | |
CRANK LENGTH (MM) | 165 | 165 | 170 | 172.5 | 172.5 | 175 | 175 | |
VERTICAL TUBE LENGTH | 360 | 360 | 360 | 360 | 360 | 360 | 360 | |
TO | SEAT TUBE LENGTH | 455 | 475 | 495 | 515 | 535 | 555 | 585 |
B | TOP TUBE LENGTH | 505 | 517 | 530 | 543 | 568 | 582 | 607 |
C | STEERING ANGLE (MM) | 70 | 71 | 72 | 72.5 | 72.5 | 73 | 73 |
D | VERTICAL TUBE ANGLE (MM) | 75 | 74.5 | 74 | 73.5 | 73.5 | 73 | 73 |
AND | REAR STAYS LENGTH | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
F | BOTTOM BRACKET HEIGHT | 72 | 72 | 72 | 72 | 72 | 72 | 72 |
G | HEAD TUBE LENGTH | 90 | 100 | 115 | 135 | 155 | 175 | 195 |
H | FORK HEIGHT | 371.5 | 371.5 | 371.5 | 371.5 | 371.5 | 371.5 | 371.5 |
THE | FORK PRE-LOAD | 46 | 46 | 46 | 46 | 46 | 46 | 46 |
J | STEP | 975 | 976 | 975 | 979 | 1004 | 1008 | 1033 |
K | STACK | 500 | 513 | 531 | 552 | 571 | 592 | 611 |
L | REACH | 370 | 375 | 378 | 380 | 399 | 401 | 420 |
