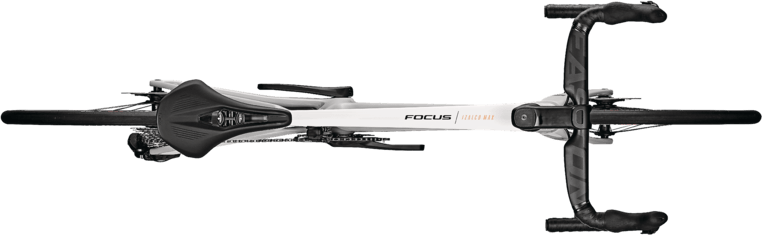

Focus Izalco Max 9.8

Focus Izalco Max 9.8

€5.799,00
€6.799,00 €5.799,00
Sale Sold out
Tax included. Shipping calculated at checkout.
Cut

IT MAKES YOU FASTER


We asked ourselves: what is the very essence of a road bike? Speed! Is this what IZALCO MAX stands for? Absolutely yes! Our goal is for you to be fast on IZALCO MAX. Therefore everything about IZALCO MAX is fast, without compromise.

Where the details count, we've built our fastest road bike ever! It's the perfect mix of aerodynamics, stiffness and weight for those who don't compromise on speed in every situation. With IZALCO MAX there are no slow rides. It truly is the essence of speed.

Main features

  • MAX AERO CARBON FRAME (865 G)
  • SHIMANO ELECTRONIC ULTEGRA DI2 2X12
  • DT SWISS ERC 1600 CARBON WHEELS

Specifications

CHASSIS
MAX technology carbon, disc, BB86, 142x12 mm thru axle, flat mount 160/140 mm, internal cable routing

FORK
MAX technology carbon, integrated cable routing, disc, 100x12 mm, flat mount

EXCHANGE
Shimano Ultegra R8150 Di2, 12-speed

FRONT DERAILLEUR
Shimano Ultegra Di2 R8150, 12-speed

REAR DERAILLEUR
Shimano Ultegra Di2, RD-R8150, 12-speed

SPROCKET PACK
Shimano Ultegra CS-R8100, 12-speed

CHAIN
Shimano XT CN-M8100, 12-speed

CRANKSET
Shimano Ultegra FC-R8100, 12-speed

TRANSMISSION
front: 52/36, rear: 11-30

CENTRAL MOVEMENT
Shimano Pressfit Road BB86

HANDLEBAR
Easton EC70 Aero, carbon, drop: 125 mm, reach: 80 mm

HANDLEBAR STEM
FOCUS CIS 2.0 integrated, 31.8 mm, aluminum, with Garmin / Wahoo-Mount

HEADSET
ACROS IS 52/286-IS52/40 (ICR), FOCUS integrated CIS

SADDLE
fi'zi:k Vento Argo R5

SEAT POST
FOCUS Aero Carbon, D-shape, 350 mm, set-back: 15 mm

BRAKES
Shimano Ultegra BR-R8170

BRAKE LEVERS DESCRIPTION
Shimano Ultegra R8170, Di2

BRAKES
Disk

WHEELS
DT Swiss ERC1600, carbon, 622-22, 12x100 mm / 12x142 mm, 45 mm height

TIRES
Vittoria Corsa, Next TLR, 28-622, Folding

EXCHANGE
24

WEIGHT OF THE BICYCLE BATTERY INCLUDED IN KG
7.75kg


* Subject to technical changes without notice. Errors and omissions excluded.

** Weight in size M, standard specs and without pedals.

GEOMETRY

XXS XS S M L XL XXL
DIMENSION (MM) 47 50 52 54 56 58 61
CUT 470 500 520 540 560 580 610
HANDLEBAR WIDTH (MM) 400 400 400 420 420 420 440
HANDLEBAR STEM LENGTH 80 90 100 110 110 120 120
CRANK LENGTH (MM) 165 165 170 172.5 172.5 175 175
VERTICAL TUBE LENGTH 360 360 360 360 360 360 360
TO SEAT TUBE LENGTH 455 475 495 515 535 555 585
B TOP TUBE LENGTH 505 517 530 543 568 582 607
C STEERING ANGLE (MM) 70 71 72 72.5 72.5 73 73
D VERTICAL TUBE ANGLE (MM) 75 74.5 74 73.5 73.5 73 73
AND REAR STAYS LENGTH 410 410 410 410 410 410 410
F BOTTOM BRACKET HEIGHT 72 72 72 72 72 72 72
G HEAD TUBE LENGTH 90 100 115 135 155 175 195
H FORK HEIGHT 371.5 371.5 371.5 371.5 371.5 371.5 371.5
THE FORK PRE-LOAD 46 46 46 46 46 46 46
J STEP 975 976 975 979 1004 1008 1033
K STACK 500 513 531 552 571 592 611
L REACH 370 375 378 380 399 401 420
