Focus
Focus Jam2 7.8
Focus Jam2 7.8
Regular price
€4.349,00
Regular price
€5.799,00
Sale price
€4.349,00
Unit price
/
per

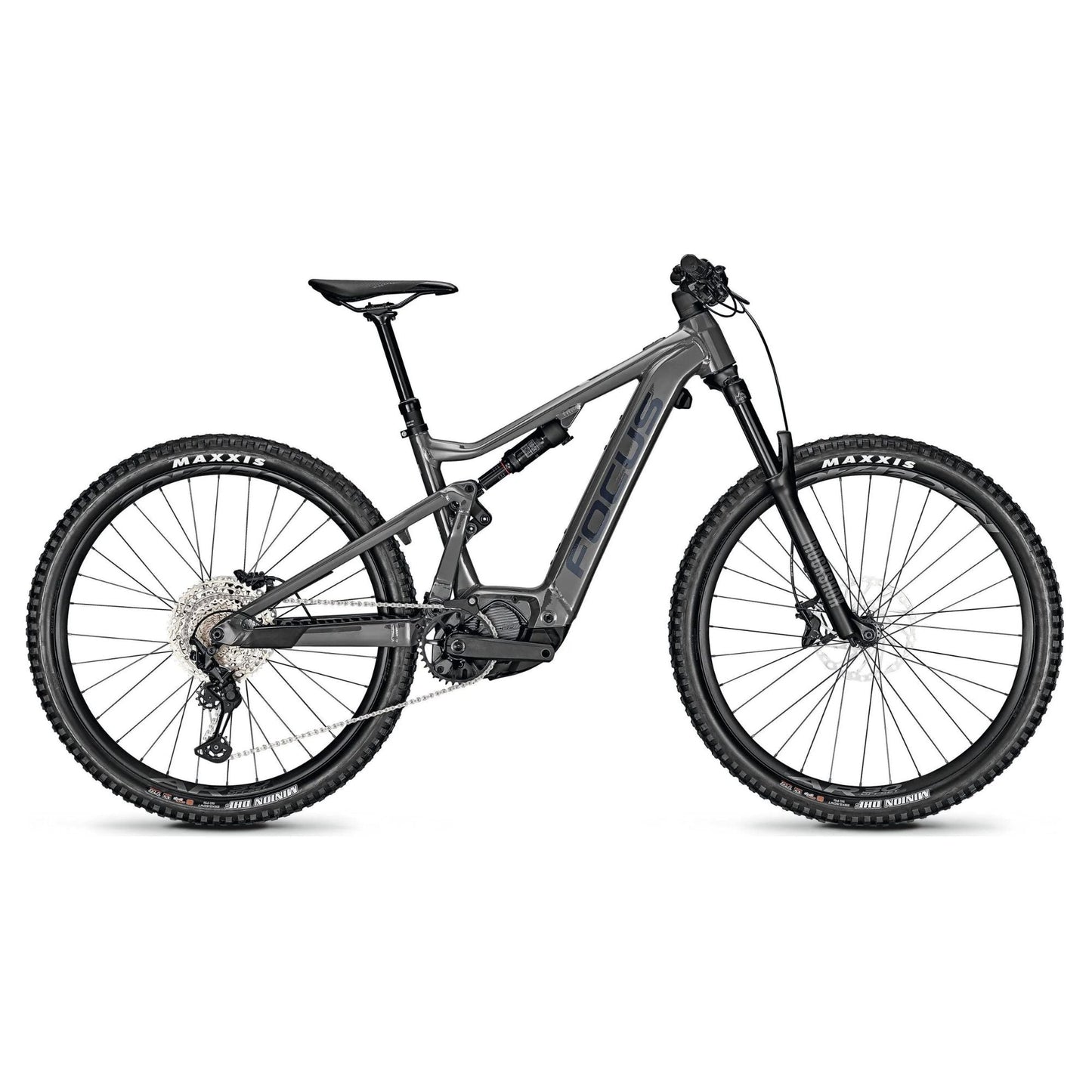

FOCUS JAM2 7.8
The Focus JAM² 7.8 will improve your rides, every time. Agile and fast geometries in a streamlined and compact design will push you on all types of trails, both technical and fluid. The FLIP CHIP on the linkage of your JAM² 7.8 can be used to adapt your geometry to an even more aggressive riding style. The small adjustment of the head angle from 65.5° to 65° and towards a longer reach changes the entire focus of your set-up making it even more downhill oriented. Furthermore, the CIS (Cockpit Integration Solution) ensures a clean cockpit and consistently smooth gear changes and braking. All cables run from the handlebars to the stem and through the headset to the frame. Plus, all your essentials fit in the tool bag between the top and bottom tubes. it is agile and easy to handle. In eMTB mode, the motor support automatically adapts to your riding power. The Bosch Powertube battery is seamlessly integrated into the down tube, but can also be removed at any time for charging. Of course you can also load it directly on the bicycle. Thanks to the battery capacity of 625 Wh, you can ride all your trails again and again.
SPECIFICATIONS
CHASSIS
7005 hydroformed aluminum, 3D forging, 150 mm FOLD GEN2 kinematics, 148x12 mm thru axle, internal cable routing, USB-C port, post mount 203 mm
FRAME MATERIAL
Aluminium
FORK
DVO Diamond E3, 110x15 mm, 44 mm rake
FORK PATH
150 mm
REAR SHOCK ABSORBER
Rock Shox Deluxe Select, 210/55 mm, hardware: 25.0 x 8.0 mm, no bushing
MOTOR
Shimano Steps EP8, 36V / 250 W / 85 Nm
BATTERY WATT-HOURS
720Wh
BATTERY AMPERE HOURS
20.8 Ah
SHOW
Shimano SC-E5003
EXCHANGE
Shimano SLX M7100, 12-speed
REAR DERAILLEUR
Shimano SLX M7100, 12-speed
SPROCKET PACK
Shimano Deore CS-M6100, 12-speed
CHAIN
Shimano CN-LG50
CRANKSET
Samox EC40 ISIS
CENTRAL MOVEMENT
Integrated in Drive Unit
TRANSMISSION
front: 36, rear: 10-51
HANDLEBAR
Aluminum, 800 mm, rise: 30 mm, backsweep: 9°
HANDLEBAR STEM
FOCUS CIS integrated, 50 mm, 0°, 35 mm, aluminium
HEADSET
ACROS ZS56/ZS66 (ICR), FOCUS CIS Integrated, 1.5/1.8" angle headset
SADDLE
FOCUS Race SL
SEAT POST
Post Moderne dropper post PM-214, 34.9 mm
BRAKES
Shimano MT520, hydraulic disc brake
BRAKE LEVERS DESCRIPTION
Shimano MT520
BRAKES
Disk
CIRCLE
RaceFace AR30 Offset
REAR HUB
Shimano MT410, 12x148 mm
FRONT HUB
Shimano MT410, 15x110 mm
TIRES
Maxxis Minion DHF, EXO, 63-622
EXCHANGE
12
WEIGHT OF THE BICYCLE BATTERY INCLUDED IN KG
25.0kg
DIMENSION
39,45,42,47
