Haibike AllMtn 4
Haibike AllMtn 4
Are you looking for a versatile eMTB that is at home on the most challenging trails? Then ALLMTN 4 is your ideal companion! The RockShox Yari air suspension fork offers more than enough reserve with 160mm of travel. Thanks to the reliable Shimano components for gears and brakes and the different 29"/27.5" wheels you can easily overcome all obstacles and always have full control of your eMTB. The high-performance Yamaha PW-X3 motor guarantees you power in the mountains and you will no longer have to worry about autonomy on long rides: with the optional Range Extender you can expand the battery capacity by 360 Wh and redefine your limits.
Specifications
-
-
ENGINE
Yamaha, PW-X3, 250W, 85Nm
-
DISPLAY
Yamaha, Side Switch, 1.7" LCD, 7 functions
-
BATTERY
InTube, 720 Wh
-
FRAME FAMILY
Haibike, AllMtn PW-X3, Aluminium
-
FORK
RockShox, Yari RC, Air, 160 mm travel, Aluminum steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
-
DAMPER
RockShox, Deluxe Select Plus, Air, Trunnion Mount
-
CRANK ARM
Haibike Components, The Crank ++, Aluminium
-
BRAKE (FRONT)
Shimano, M6120, Hydraulic disc brakes
-
BRAKE (REAR)
Shimano, M6120, Hydraulic disc brakes
-
TUBE
Loan valves
-
RIM
WTB, ST i30 TCS, Double Wall
-
CLAMPING RING
Internal hexagon, 38.1 mm
-
REAR DERAILLEUR
Shimano, SLX M7100
-
SHIFT LEVER
Shimano, Deore SLX M7100
-
BOTTOM BRACKET
integrated into the motor
-
SPROCKET
Shimano, M6100, 10 - 51 teeth
-
CHAIN
Shimano, CN-M6100
-
CHAINRING
Haibike Components, Aluminium, 36 teeth
-
CHAIN GUIDE
Directmount nylon
-
BRAKE LEVER
Shimano, Deore M6100, Aluminium
-
BRAKE DISC (FRONT)
Shimano, RT30-L, 203 mm
-
BRAKE DISC (REAR)
Shimano, RT EM300L, 203 mm
-
TIRE
Maxxis, Minion DHF II, 63-622, 29 x 2.5 inch
-
FRONT WHEEL HUB
Shimano, MT410-B, Centerlock
-
REAR WHEEL HUB
Shimano, MT410, Centerlock
-
SPOKES
Sapim, Race
-
HANDLEBAR
Haibike Components, TheBar +++, 780 mm
-
GRIPS
Haibike, MTB grips
-
STEM
Haibike Components, TheStem +++, 31.8 mm
-
HEADSET
Acros, BlockLock, Aluminium
-
SADDLE
Selle Royal, Vivo
-
REAR SEAT
Haibike Components, Dropper-Post Remote 34.9, Aluminium, Telescope, 34.9 mm
-
PEDALS
Freeridepedal, Aluminium, with Reflector
-
PERMITTED TOTAL WEIGHT
120.0kg
-
TIRE (REAR, IF DIFFERENT)
Maxxis, Minion DHR II, 66-584, 27.5 x 2.6 inch
-
RIM (REAR, IF DIFFERENT)
WTB, ST i35 TCS, Double Wall
-

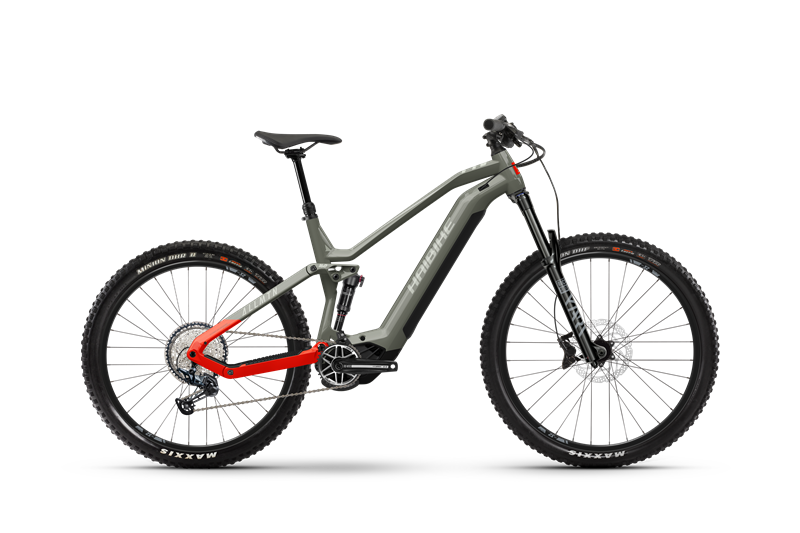

* The illustration above is an example. We reserve the right to replace individual parts with components of the same or higher quality provided that the type, suitability and purpose of the bicycle is not affected thereby. This may result in a slightly different bike being delivered. At the moment the use of different components is mainly caused by delivery problems due to the Coronavirus pandemic.
