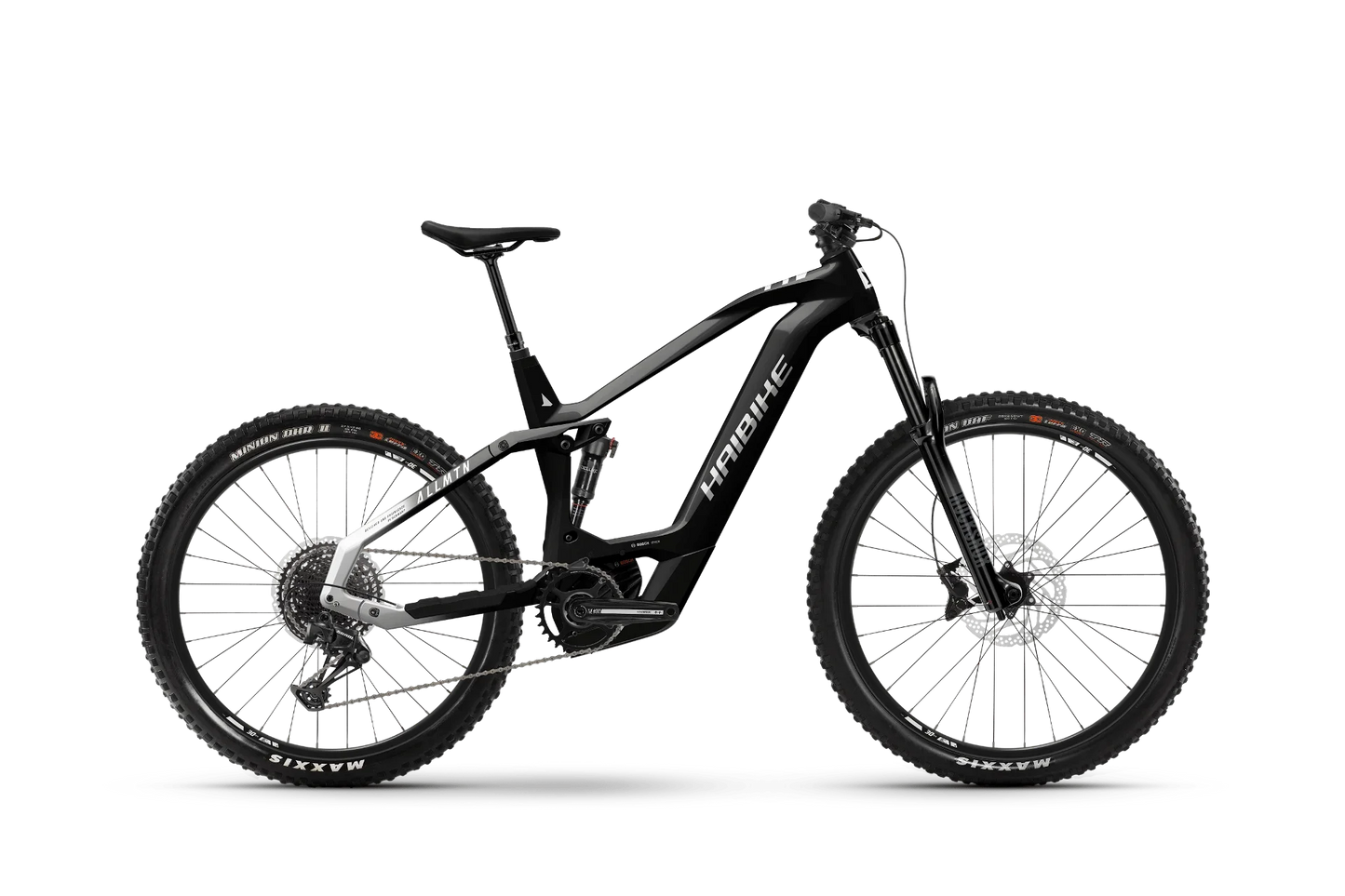

Haibike AllMtn CF 8
Haibike AllMtn CF 8
For tours that know no limits. Our ALLMTN CF 8 is a mountain goat straight out of a picture book and easily tackles all challenges in difficult terrain: steep climbs and technical descents, flowing trails and root passages, long rides and short adventures. The Bosch Performance CX Smart System motor pushes you forcefully even on the steepest sections. At the same time, thanks to the 750 Wh battery, you can extend your range further than ever. The lightweight carbon frame with aluminum rear triangle saves weight, while the subframe structure ensures high torsional rigidity. Thanks to 160 mm of travel at the front and rear, as well as high-quality gear components from Sram and Shimano or, optionally, from Sram and Magura, you will also have enough reserves to tackle the most demanding terrain. In short: an ideal companion for everyone who wants to experience the perfect ePerformance uphill and downhill - and tours that know no limits.
Specifications
Bosch ENGINE, Performance CX Smart system, 250 W, 85 Nm
Bosch SCREEN, Kiox 300 + remote control
LED BATTERY InTube, 750Wh
FORK RockShox, Yari RC, Air, travel= 160 mm, aluminum steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110 mm Boost thru axle
RockShox SHOCK, Deluxe Select Plus, air, axle mount
CRANK ARM Haibike Components, The Crank++, Aluminium
BRAKE (FRONT) Shimano, MT420, 4-piston disc brake
BRAKE (REAR) Shimano, MT420, 4-piston disc brake
Presta Valve TUBE RIM Rodi, Tryp 30, with eyelets, hollow edge, Aluminum
LOCKING RING Internal hex, 34.9 mm
REAR DERAILLEUR Sram, NX Eagle
SRAM SHIFT LEVER, SX Eagle, trigger switch, 12 speed
LOWER MOVEMENT integrated into the engine
SRAM SPROCKET, Eagle PG1210, 11 - 50 teeth, 12 speeds
CHAIN Sram, SX Eagle
CROWN Sram, aluminium, 36 teeth
CHAIN GUIDE Direct mounting in nylon
BRAKE LEVER Shimano, MT401, aluminium
BRAKE DISC (FRONT) Shimano, RT30-L, 203mm
BRAKE DISC (REAR) Shimano, RT30-L, 203mm
TIRE Maxxis, Minion DHF II, 65-622, 29" x 2.5"
FRONT WHEEL HUB Shimano, MT400-B, Centerlock
REAR WHEEL HUB Shimano, MT400-B, Centerlock
SPOKES Sapim, Leader, Black
HANDLEBAR Haibike Components, TheBar++, 780 mm
STEM Aluminium, head A, 31.8 mm
Acros HEADSET, Cable integration, Aluminium
SADDLE Sella Royal, Vivo
SEAT POST Remote with dropper seat post, aluminum, telescope, 31.6 mm
PEDALS Freeride pedal, aluminium, with reflector
TOTAL ALLOWED WEIGHT 120.0 kilograms
GEAR LEVER Shimano, Nesso
TIRE (REAR, IF DIFFERENT) Maxxis, Minion DHR II, 71-584, 27.5" x 2.8"
RIM (REAR, IF DIFFERENT) Rodi, Tryp 35, Aluminium, with eyelets, hollow edge
* The illustration above is an example. We reserve the right to replace individual parts with components of the same or higher quality provided that the type, suitability and purpose of the bicycle is not affected thereby. This may result in a slightly different bike being delivered. At the moment the use of different components is mainly caused by delivery problems due to the Coronavirus pandemic.
