Haibike AllTrail 6
Haibike AllTrail 6
Do you like riding sporty and more challenging trails? Then the ALLTRAIL 6 29 is an eFully for you with a high fun factor! The 29" wheels with Plus tires and the SR Suntour suspension with 140 mm travel at the front and rear ensure additional comfort, for an easy ride on the trails. If your batteries are running low, the new Yamaha PW-S2 motor will help you will ensure you don't run out of power. Shimano's reliable gear and brake components ensure optimal power transmission and downhill control and safety.
Specifications
Yamaha ENGINE, PW-S2, 250 W, 75 Nm
Yamaha SCREEN, side switch, 1.7" LCD, 7 functions
InTube BATTERY, 720Wh
FORK RockShox, 35 Gold RL, air, travel = 140 mm, aluminum steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110 mm Boost thru axle
RockShox SHOCK, Deluxe select plus, Air, Trunnion Mount
CRANK ARM Haibike Components, The Crank++, Aluminium
BRAKE (FRONT) Shimano, MT420, 4-piston disc brake
BRAKE (REAR) Shimano, MT420, 4-piston disc brake
Presta Valve TUBE
WTB RIM, ST i30 TCS, double wall
CLAMPING RING Internal hexagon, 38 mm
Shimano Deore M6100 REAR DERAILLEUR
SHIFTER LEVER Shimano, Deore M6100, trigger switch, 12 speed
LOWER MOVEMENT integrated into the engine
SPROCKET Shimano, M6100, 10 - 51 teeth, 12 speeds
CHAIN Shimano, CN-M6100
CROWN Steel, 38 teeth
CHAIN GUIDE Direct mounting in nylon
BRAKE LEVER Shimano, MT401, aluminium,
BRAKE DISC (FRONT) Shimano, RT EM300L, 203mm
BRAKE DISC (REAR) Shimano, RT30-L, 203mm
TIRE Schwalbe, Magic Mary Evo TLE, 65-622, 29" x 2.6"
FRONT WHEEL HUB Shimano, MT400-B, Centerlock
REAR WHEEL HUB Shimano, MT410, Centerlock
SPOKES Sapim, Race, Black
HANDLEBAR Haibike Components, TheBar++, 780 mm
STEM Alu, A-head
Acros HEADSET, BlockLock, Aluminium
SADDLE Sella Royal, Vivo
SEAT POST Haibike Components, Dropper-Post Remote 34.9, Aluminium, Telescope, 34.9 mm
PEDALS Freeride pedal, aluminium, with reflector
TOTAL ALLOWED WEIGHT 150.0 kilograms
GEAR LEVER Shimano, Nesso
TIRE (REAR, IF DIFFERENT) Schwalbe, Hans Dampf Evo TLE, 65-622, 29" x 2.6"

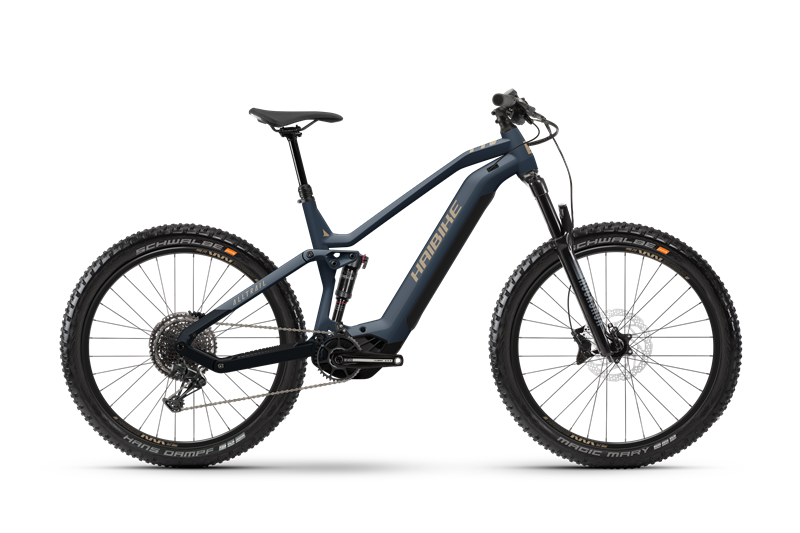

The illustration above is an example. We reserve the right to replace individual parts with components of the same or higher quality provided that the type, suitability and purpose of the bicycle is not affected thereby. This may result in a slightly different bike being delivered. At the moment the use of different components is mainly caused by delivery problems due to the Coronavirus pandemic.
