Look

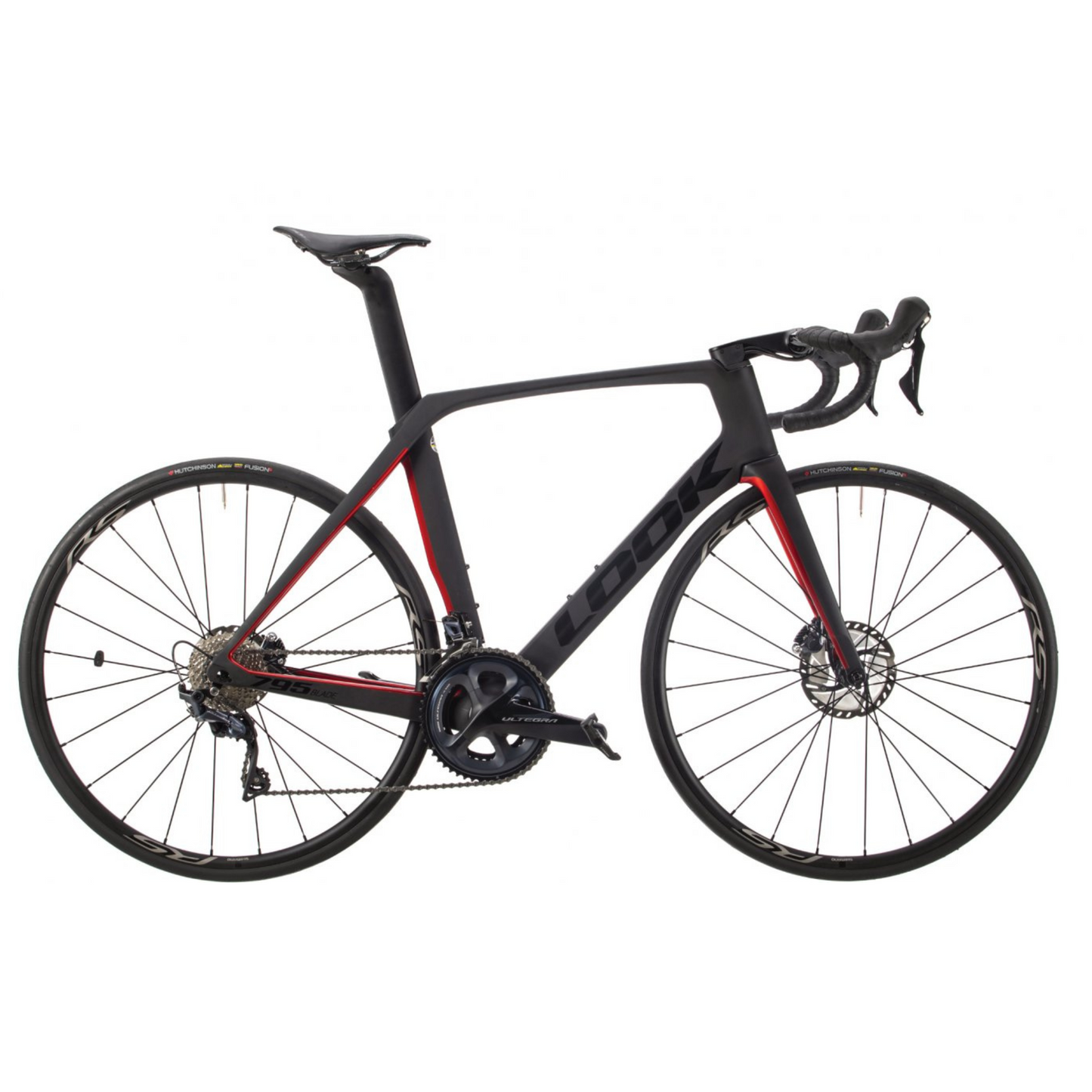

Schauen Sie sich die 795 Disc Ultegra R8000 mit 11 Geschwindigkeiten an
Schauen Sie sich die 795 Disc Ultegra R8000 mit 11 Geschwindigkeiten an
Couldn't load pickup availability
Specifications
Chassis
LOOK 795 BLADE disc
Seatpost
LOOK AEROPOST 3. CARBON 400 mm
Saddle
LOOK by S MARCO SHORT FIT DYNAMIC open fit
Attack
LOOK ADS (XS 90/S 100 / M – L 110 / XL 120)
Handlebar
LOOK LS2 ALLOY (XS – S 40 cm / ML 42 cm / XL 44 cm)
Wheels
SHIMANO WH RS 370 TUBELESS
Tyres
HUTCHINSON FUSION 5 TUBELESS READY 700 X 25
Crankset
SHIMANO ULTEGRA R8000 52 x 36 (XS-S 170/ML 172.5 /XL 175)
Chain
SHIMANO HG 601 11 SPEED
Central movement
BB 386 / Token Ninja Sram DUB
Cassette
SHIMANO ULTEGRA R8000 11 x 32
Commands
SHIMANO ULTEGRA
Derailleur
SHIMANO ULTEGRA R8000
Discs
SHIMANO RT RT800 F: 160 mm R: 140 mm
Seatpost
LOOK AEROPOST 3. CARBON 400 mm
Saddle
LOOK by S MARCO SHORT FIT DYNAMIC open fit
Attack
LOOK ADS (XS 90/S 100 / M – L 110 / XL 120)
Handlebar
LOOK LS2 ALLOY (XS – S 40 cm / ML 42 cm / XL 44 cm)
*The manufacturer reserves the right to change information on the website without notice, including specifications, models, colors and materials.
*Images are for indicative purposes only and may not correspond to the product description.GEOMETRIES
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Stacks | 505 | 529 | 553 | 578 | 601 |
| Reach | 367 | 377 | 386 | 396 | 406 |
| I - Head tube (°) | 71.8 | 71.8 | 73 | 73 | 73 |
| A - Seat tube | 445 | 469.7 | 494.4 | 519.2 | 544 |
| B - Top Tube horizontal | 494.1 | 510.1 | 526.2 | 545 | 558.3 |
| C - Front Center | 567.7 | 585.5 | 584.3 | 601.5 | 618.8 |
| D - Trail | 60.1 | 60.1 | 59.9 | 59.9 | 59.9 |
| F - Fork offset | 50 | 50 | 43 | 43 | 43 |
| G - Chainstays | 415 | 415 | 415 | 415 | 415 |
| K - Head tube | 111.9 | 137.1 | 155.7 | 180.8 | 205.9 |
| L - Fork | 368 | 368 | 368 | 368 | 368 |
| HAV | 65 | 65 | 65 | 65 | 65 |
| J - Seat tube (°) | 75.8 | 75.8 | 75.8 | 75.8 | 75.8 |
