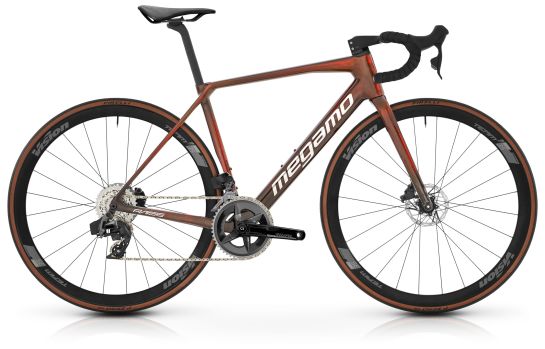

Megamo-Raise 10 (23)
Megamo-Raise 10 (23)
The Raise was designed for versatile cyclists, for those who want to experience new sensations on the asphalt and dominate the road. Its carbon frame and integrated handlebar give lightness and rigidity to a bike which, in addition to maintaining a clean and attractive aesthetic, allows you to travel long distances without sacrificing comfort.
If you want to enjoy a light, fast, comfortable and versatile bike, the Raise is undoubtedly the best option.
Specifications
Frame kit
Chassis
Carbon Advanced Composite frame, Full Internal Cable Routing, Flat Mount Disc Brakes 12x142
Fork
Carbon Advanced Composite fork, Full Internal Cable Routing, Flat Mount Disc Brakes 12x100
Headset
Integrated Internal Routing, 3 positions, 3 different heights
Rear derailleur
Shimano Ultegra R8000 11s
Derailleur
Shimano Ultegra R8000 11s
Cambiano handles
Shimano Ultegra R8020 11s
Crankset
Shimano Ultegra R8000 11s 50-34
Sprockets
Shimano Ultegra R8000 11-30t 11s
Brakes
Shimano Ultegra R8020 11s Hydraulic Disc
Tyres
Pirelli Road P7 700x26 / Vittoria Zaffiro V 700x25
Hub
Vision Team 35 Disc 12x100 / 12x142
Wheels
Vision Team 35 Disc
Handlebar
Megamo Fov Compact
Stem
Integrated Internal Routing
Seatpost
Megamo 27.2mm
Saddle
Sellie Italia Model X Superflow
We reserve the right to change information on the website without notice, including specifications, models, colors and materials.
GEOMETRY RAISE 10 (23)
XS | S | M | L | XL | ||
---|---|---|---|---|---|---|
TO
|
T/T | 507 | 523 | 541 | 559 | 576 |
B
|
C/S | 405 | 405 | 405 | 405 | 405 |
C
|
S/T | 422 | 453 | 473 | 499 | 525 |
D
|
H/T | 103 | 116 | 135 | 156 | 176 |
AND
|
REACH | 357 | 369 | 381 | 393 | 405 |
F
|
STACK | 505 | 522 | 541 | 560 | 580 |
G
|
BB HEIGHT | 270 | 270 | 270 | 270 | 270 |
H
|
FRONT ANGLE | 70.5º | 72nd | 72nd | 72nd | 72nd |
THE
|
REAR ANGLE | 73.5º | 73.5º | 73.5º | 73.5º | 73.5º |
FIT GUIDE | |
X-SMALL |
158 - 168
|
SMALL |
165 - 172
|
MEDIUM |
170 - 182
|
LARGE |
182 - 190
|
X-LARGE |
188 - 210
|
