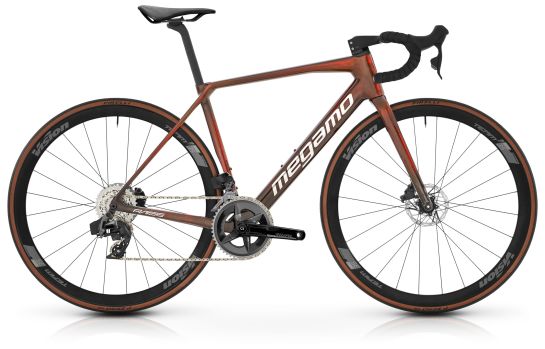

Megamo-Raise 20 (23)
Megamo-Raise 20 (23)
Regular price
€2.199,00
Regular price
€2.699,00
Sale price
€2.199,00
Unit price
/
per
The Raise was designed for versatile cyclists, for those who want to experience new sensations on the asphalt and dominate the road. Its carbon frame and integrated handlebar give lightness and rigidity to a bike which, in addition to maintaining a clean and attractive aesthetic, allows you to travel long distances without sacrificing comfort.
If you want to enjoy a light, fast, comfortable and versatile bike, the Raise is undoubtedly the best option.
Specifications
Frame kit
Chassis | Carbon Advanced Composite frame, Full Internal Cable Routing, Flat Mount Disc Brakes 12x142 | |
Fork | Carbon Advanced Composite fork, Full Internal Cable Routing, Flat Mount Disc Brakes 12x100 | |
Headset | Totally Internal Cable routing |
Transmission
Rear derailleur | Shimano 105 7000 11s | |
Derailleur | Shimano 105 7000 11s | |
Handles change | Shimano 105 7020 11s | |
Crankset | Shimano 105 7000 11s 50/34T | |
Boxes | Shimano 105 7000 11-30t 11s |
Brakes
Frenos | Shimano 105 Hydraulic Disc |
Route
Tyres | Pirelli Road P7 700x26 / Vittoria Zaffiro V 700x25 | |
Wheels | Fulcrum Racing 800 DB |
Components
Handlebar | Carbon Full Integrated Internal Cable Routing: 90/400 (XS), 100/400 (S), 110/420 (M,L), 120/440 (XL) | |
Stem | Integrated Internal Routing | |
Seatpost | Megamo 27.2mm | |
Site | Sellie Italia Model |
We reserve the right to change information on the website without notice, including specifications, models, colors and materials. |
GEOMETRY RAISE 20 (23)
XS | S | M | L | XL | ||
---|---|---|---|---|---|---|
A
|
T/T | 507 | 523 | 541 | 559 | 576 |
B
|
C/S | 405 | 405 | 405 | 405 | 405 |
C
|
S/T | 422 | 453 | 473 | 499 | 525 |
D
|
H/T | 103 | 116 | 135 | 156 | 176 |
AND
|
CAPACITY | 357 | 369 | 381 | 393 | 405 |
F
|
STACK | 505 | 522 | 541 | 560 | 580 |
G
|
HEIGHT BB | 270 | 270 | 270 | 270 | 270 |
H
|
FRONT ANGLE | 70.5º | 72nd | 72nd | 72nd | 72nd |
I
|
REAR CORNER | 73.5º | 73.5º | 73.5º | 73.5º | 73.5º |
FIT GUIDE | |
X-SMALL |
158-168
|
SMALL |
165-172
|
MEDIUM |
170-182
|
LARGE |
182-190
|
X-LARGE |
188-210
|
We reserve the right to change information on the website without notice, including specifications, models, colors and materials.
