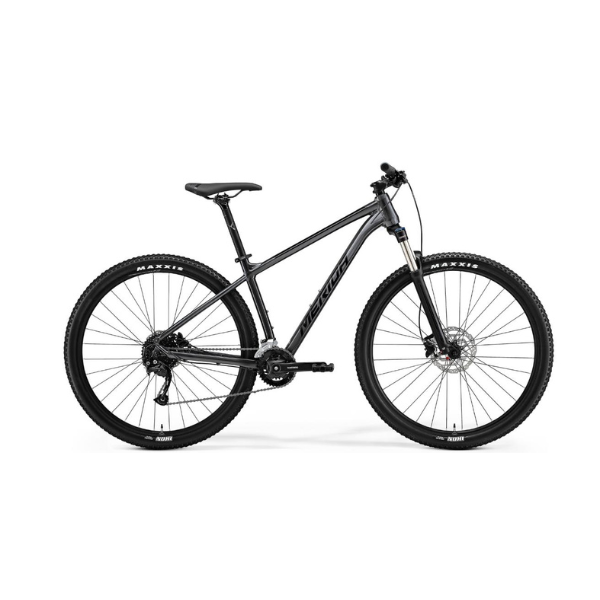

Merida Big.Nine 100 - 2X

Merida Big.Nine 100 - 2X

€599,00
€999,00 €599,00
Sale Sold out
Tax included. Shipping calculated at checkout.
Color
Cut

Merida Big.Nine 100 - 2X



SPECIFICATIONS



Measures L(18.5), M(17), S(14.5), XL(20), XXL(22)
Color DARK SILVER(BLACK), MATT EVERGREEN(CHAMPAGNE)
Chassis BIG.NINE TFS III; MAT aluminium; 29 WHS; 135x9 AST; BSA BBR
Fork Suntour XCR32 LOR; Air; 100 STR; Lockout; 46mm offset fork
Front brake Tektro M275; 2 pistons
Rear brake Tektro M275; 2 pistons
Chain KMC M99
Crankset Shimano MT101-2; 36-22 ATC
Exchange Shimano Alivio Shadow
Sprocket pack Shimano HG200; 11-36 ATC; 9 GER
Handlebar bend MERIDA EXPERT CC; MAT aluminum; 720 WHB; 10 RHB
Handlebar stem MERIDA COMP CC; MAT aluminum; 31.8 DSH; 6 ASD
Headset Merida M2345
Front hub Shimano TX505; 100x9 WHF; 32 SPH; Centerlock
Rear hub Shimano TX505; 135x9WHR; 32 SPH; Centerlock
Circles MERIDA COMP CC; 20 IWR; MAT aluminium
Saddle MERIDA COMP SL; V-mount
Seat post MERIDA COMP CC; MAT aluminum; 30.9 DSP; 0 SSB
Right command Shimano Altus
Left command Shimano Altus
Rays Black stainless
Tyres Maxxis Ikon; 29x2.2"; wire
Pedals VP VPE-891
Crank 170 mm-S, 175 mm-M up
Movement series FSA TH-7420ST Cartridge Bearing
Doorbell YWS-Alloy
Saddle clamp MERIDA comp QR
Knobs MERIDA Comp EC
Derailleur Shimano M2020-TS








GEOMETRIES



FS - Frame size (mm) S M L XL XXL
ST - Seat tube (mm) 370 430 470 510 560
TT - Top tube (mm) 570 590 610 630 650
HT - Head tube (mm) 100 115 130 145 160
HTA - Head tube angle (°) 70 70 70 70 70
STA - Seat tube angle (°) 73 73 73 73 73
CS - Chain stay length (mm) 440 440 440 440 440
BD - Bottom bracked drop (mm) 60 60 60 60 60
FO - Fork length (mm) 506 506 506 506 506
SH - Stand over height (mm) 679 727 763 800 843
S - Stack (mm) 614 628 642 656 670
R - Reach (mm) 382 398 414 429 445
WB - Wheel base (mm) 1069 1090 1110 1131 1152
