Merida Scultura Endurance 4000 CF3
Merida Scultura Endurance 4000 CF3
Regular price
€2.555,00
Regular price
€2.840,00
Sale price
€2.555,00
Unit price
/
per
Merida Scultura Endurance 4000 CF3

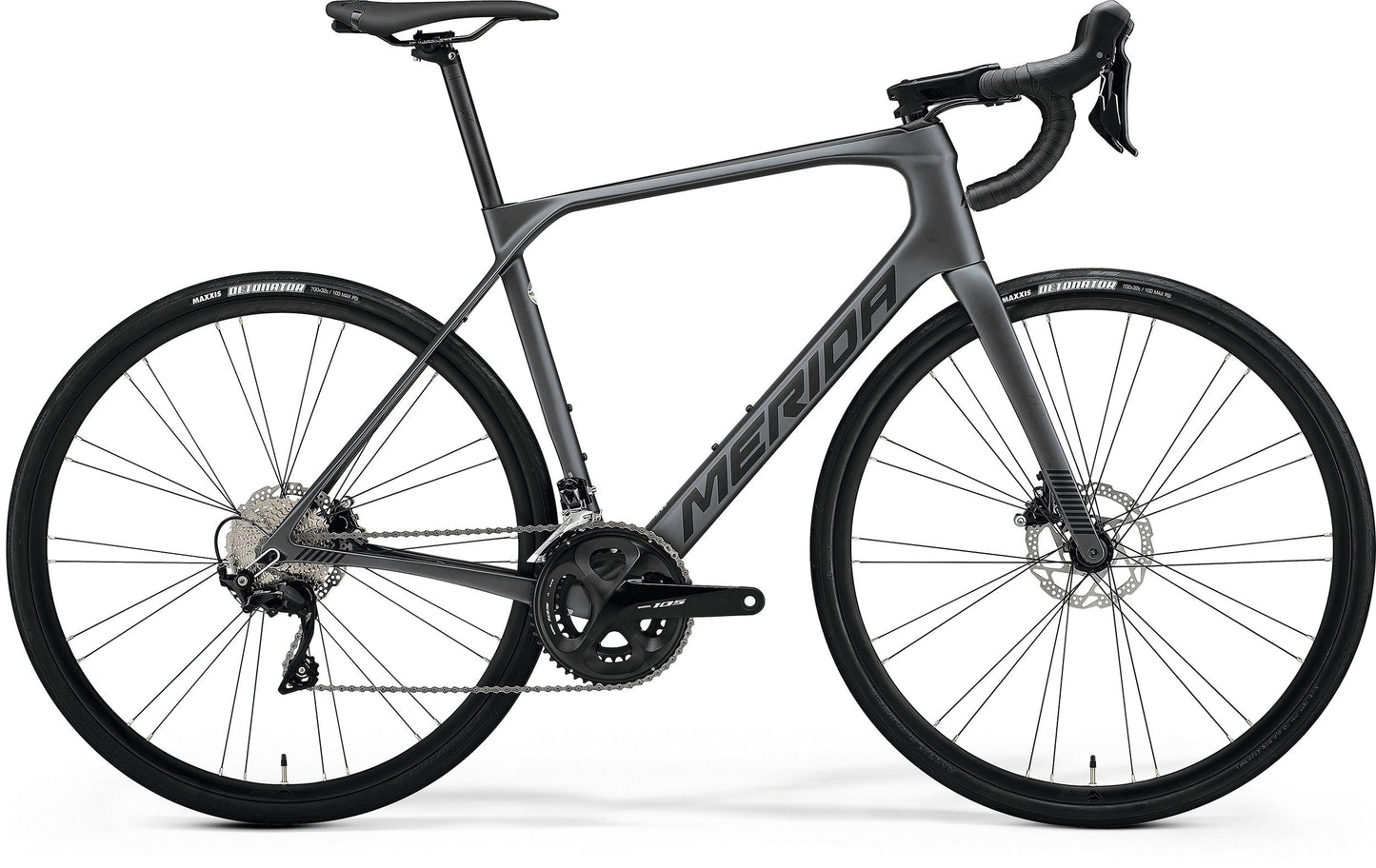

The Merida Scultura Endurance 4000 is a conventional entry-level carbon bicycle. CF3 carbon frame features the reliable Shimano 105 11-speed groupset that offers accurate shifting and precise braking. The proven WIRE PORT cable management system keeps the front free of cables and helps give the bike a super sleek overall look.
Specifications:
BRAKE LEVER Shimano 105
SCULPTURE ENDURANCE CF3 II FRAME
FRAME SIZE XXS, XS, S, M, L, XL
SCULPTURE ENDURANCE FORK CF3 Disc
BRAKES Shimano 105
Shimano RT54 DISCS
MERIDA 8151 HEADSET
MERIDA EXPERT SL HANDLEBAR BENDER
MERIDA EXPERT CW HANDLEBAR STEM
MERIDA ROAD Expert GRIPS
Shimano 105 derailleur
Shimano 105 gear shifter
CONTROLS Shimano 105 Disc
CRANKSET Shimano 105 (50-34T)
MERIDA EXPERT CC SEAT POST
MERIDA EXPERT SEAT POST CLAMP
MERIDA COMP SL SADDLE
KMC X11 CHAIN
Shimano CS-HG700 SPROCKET SET
MOVEMENT SERIES SM-BB71-41B, Pressfit 86.5
MERIDA EXPERT SL WHEELS
VP CLK170F / VP CLK270R HUBS
MERIDA EXPERT SL PINS
RAYS Double Butted Black stainless
Maxxis Detonator TIRES
TOTAL WEIGHT ALLOWED 120 kg
Geometries:
FS - Frame size (mm) | XXS | XS | S | M | L | XL |
ST - Seat tube (mm) | 440 | 470 | 490 | 510 | 530 | 560 |
TT - Top tube (mm) | 515 | 524 | 538 | 553 | 568 | 583 |
HT - Head tube (mm) | 140 | 152 | 161 | 177 | 197 | 222 |
HTA - Head tube angle (°) | 70.5 | 71 | 72 | 73 | 73 | 73.5 |
STA - Seat tube angle (°) | 74 | 74 | 74 | 73.5 | 73.5 | 73.5 |
CS - Chain stay length (mm) | 418 | 418 | 418 | 418 | 418 | 418 |
BD - Bottom bracked drop (mm) | 66 | 66 | 66 | 66 | 66 | 66 |
FO - Fork length (mm) | 380 | 380 | 380 | 380 | 380 | 380 |
SH - Stand over height (mm) | 742 | 767 | 785 | 803 | 823 | 852 |
S - Stack (mm) | 539 | 552 | 565 | 584 | 603 | 629 |
R - Reach (mm) | 360 | 366 | 376 | 380 | 389 | 397 |
WB - Wheel base (mm) | 992 | 997 | 1001 | 1001 | 1017 | 1026 |
To reduce production and delivery times, we are sometimes forced to make last minute specification changes. Please note that such changes may not be reflected in these product pages and images.
