Cut

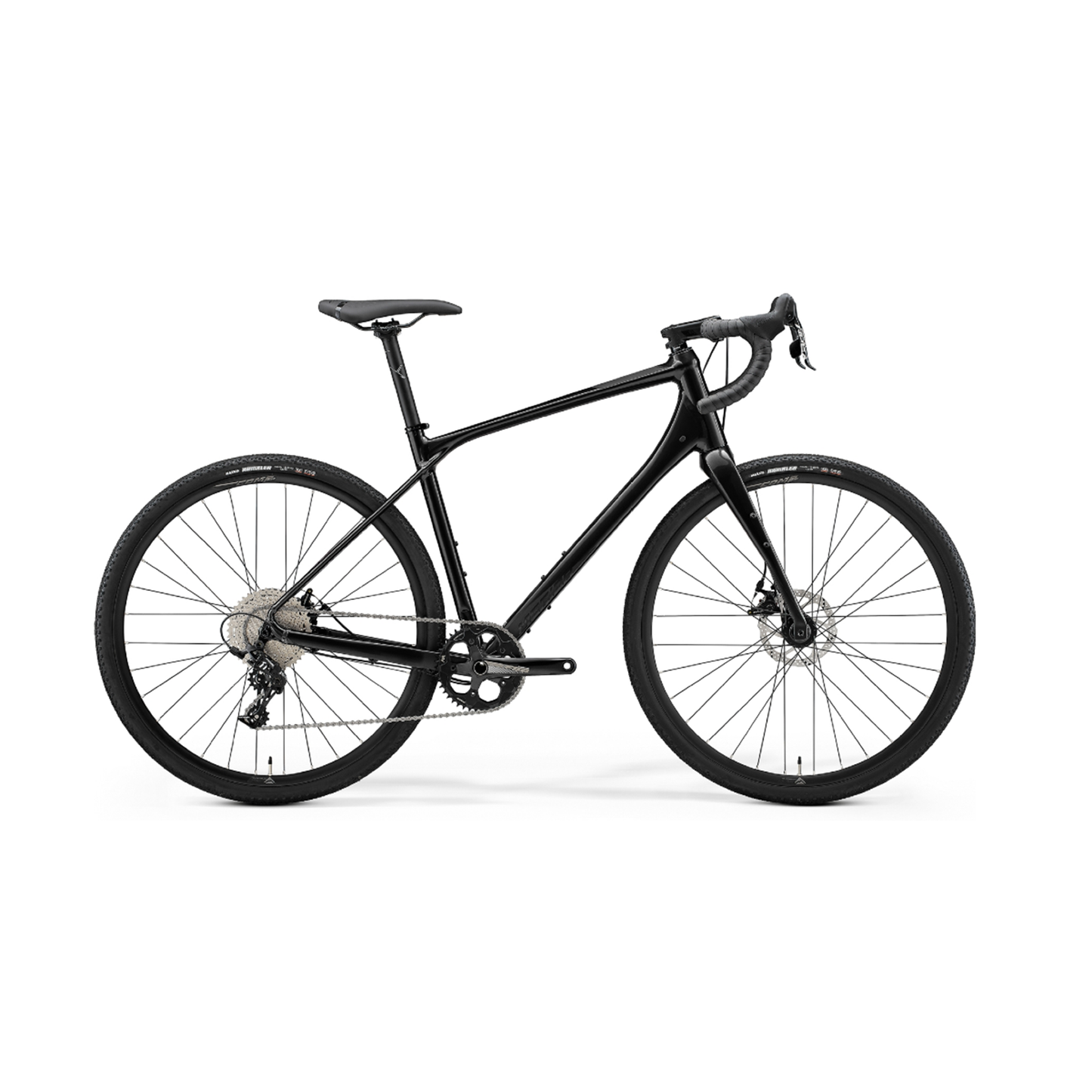

Lightweight aluminum gravel bike with full carbon fork and single chainring setup. The SILEX 300 is ready to tackle your next cycling adventure, regardless of whether it is paved roads or more challenging dirt roads.

Based on the super versatile and comfortable aluminum frame and full carbon fork combination, the SILEX 300 loves adventure. The simple but extremely effective single chainring setup offers one of the cleanest looks in our SILEX range, whilst still offering a wide range of gears for steeper gradients and fast road sections. The SILEX geometry offers an extremely comfortable riding position and exceptional stability, even on the roughest off-road detours.

Specifications

CHASSIS SILEX LITE
  • material: aluminium
  • 700x38C / 650Bx45C max.WHS
  • 100x12/142x12mm standard axle
  • BB86 standard bottom bracket
COLOR GLOSSY BLACK (MATT BLACK)
FRAME SIZE XS, S, M, L, XL
FORK SILEX CF2
  • Tapered
  • material: carbon
  • 700x38C / 650Bx45C max. wheelsize
BRAKES Tektro Spyre
  • Mechanical Disc
DISCS Tektro M160
  • 160 SC
HEADSET MERIDA M2331
HANDLEBAR BEND MERIDA EXPERT GR
  • material: aluminium
  • 400mm (XS-S)
  • 420mm (M)
  • 440mm (L/XL)
HANDLEBAR STEM MERIDA EXPERT CW
  • material: aluminium
  • 31.8mm diameter
  • -8° stem angle
  • 80 mm
KNOBS MERIDA ROAD Expert
EXCHANGE Sram Apex1
COMMANDS Sram Apex 1
CRANKSET FSA Gossamer
  • 44 teeth
  • 170mm-XS/S, 172.5mm-M, 175mm-L/XL
SEAT POST MERIDA COMP CC
  • material: aluminium
  • 30.9mm diameter
  • 0mm setback
MORS. SEAT POST MERIDA EXPERT
SADDLE MERIDA COMP SL
  • V-mount
CHAIN KMC X11
SPROCKET PACK Sunrace CSMS8
  • 11-42 teeth
  • 11 speed
MOVEMENT SERIES FSA PF86 MegaExo
CIRCLES MERIDA COMP SL
  • 17mm inner width
  • 22mm height
  • material: aluminium
  • Tubeless ready (tubeless tape and valves not included)
HUBS VP 173SB / VP 273SB
  • 100x12mm width front hub
  • 32 spoke holes
  • 6 bolts
  • 142x12mm width rear hub
  • 32 spoke holes
  • 6 bolts
PINS MERIDA EXPERT SL
  • including removable lever
  • 6/4mm allen key
RAYS Black stainless
TIRES Maxxis Rambler
  • 700x38C
  • fold
  • TR
  • EXO
ALLOWED TOTAL WEIGHT 120kg

*The manufacturer reserves the right to change information on the website without notice, including specifications, models, colors and materials.

*Images are for indicative purposes only and may not correspond to the product description.

Geometries

Image frame geometries

FRAME SIZE XS S M L XL
TIRE SIZE 28" 28" 28" 28" 28"
ST SEAT POST MM. 440 470 500 530 560
TT TOP TUBE MM. 548 554 579 600 620
CS REAR CARRIAGE MM 430 430 430 430 430
HTA STEERING ANGLE DEGREES 71 71 71 71 71
STA DEGREES COLUMN TUBE ANGLE 74 74 74 74 74
BD BOTTOM BRACKET MM. 75 75 75 75 75
HT HEIGHT OF HEAD TUBE MM. 160 180 200 220 240
FI FORK LENGTH MM. 397 397 397 397 397
R REACHS MM 380 380 400 415 430
S STACKS MM 587 606 625 644 663
WB DISTANCE MM 1027 1034 1060 1082 1103
SH STAND OVER HEIGHT MM 716 744 772 799 826
