Merida

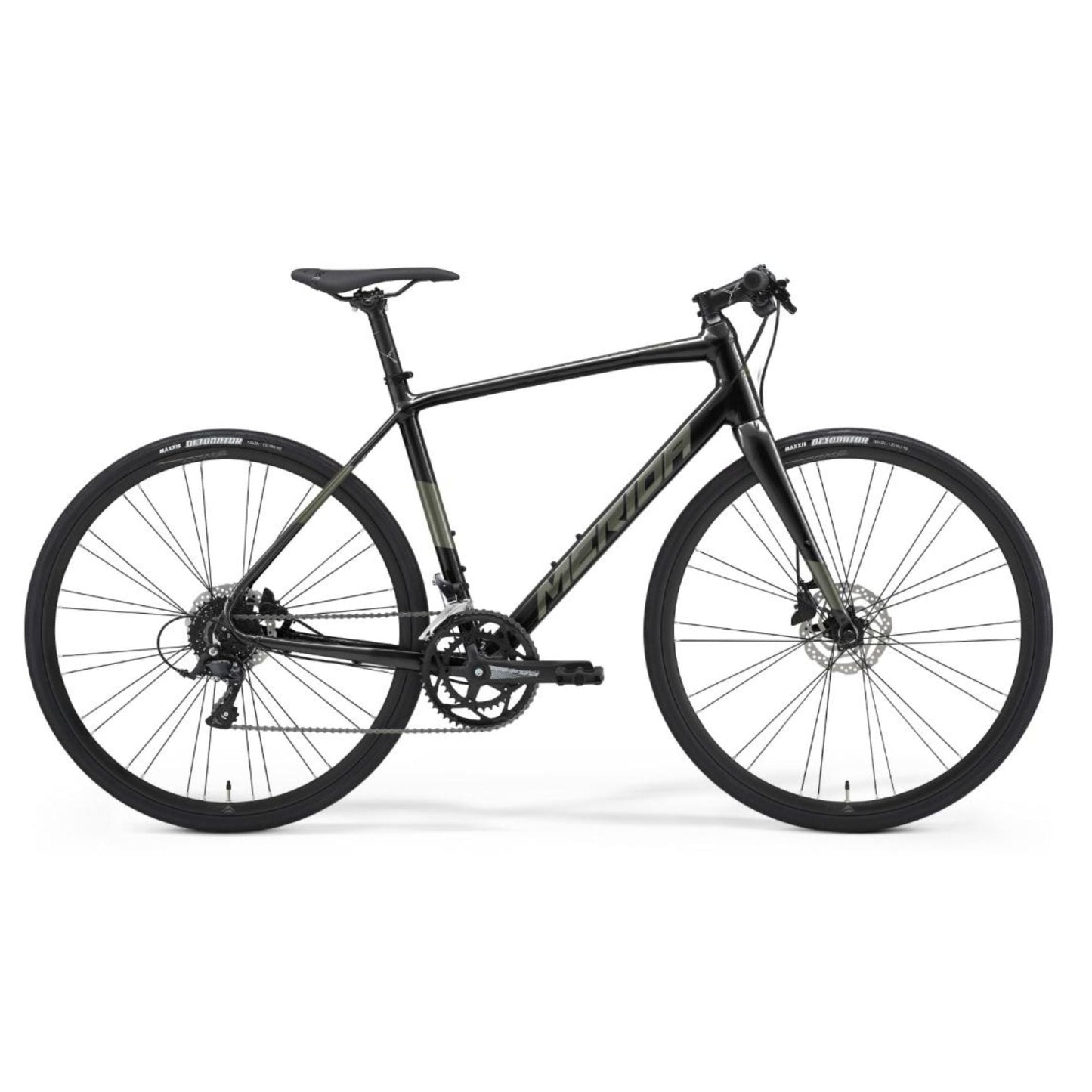

Merida Speeder 100
Merida Speeder 100
Merida Speeder 100
TECHNICAL FEATURES
Color: SILK CHAMPAGNE (BLACK), SILK DARK SILVER (BLACK)
Sizes: L (56), ML (54), S (50), SM (52), XL (59), XS (47)
Frame: SPEEDER LITE III; aluminum MAT; Max. 700x35C WHS; Axle 100x9mm / 135x9mm AST; BSA BBR
Fork: MERIDA SPEEDER CF2; conical; carbon MAT; Max. 700x35C WHS
Brake levers: Shimano EF505
Front brake: Shimano BR-MT200
Rear brake: Shimano BR-MT200
Chain: Sunrace CN-M84
Crankset: Shimano TY301; 48-38-28 ATC
Gear: Shimano Acera-X
Cassette: Sunrace CSM558; 11-32 ATC; 8 speeds
Handlebar bend: MERIDA COMP TK; aluminum MAT; width 600 mm; flat design
Stem: MERIDA COMP CC; aluminum MAT; handlebar diameter 31.8 mm; 6 degree inclination
Headset: Merida M2331 Neck
Front hub: Joytech D471SBT-SC-CL; axis 100x9mm; 28 holes; centerlock system
Rear hub: Shimano FH-TX505; axis 135x9mm; 32 holes; centerlock system
Rims: MERIDA COMP SL; internal width 17 mm; height 22 mm; aluminum MAT
Saddle: MERIDA COMP SL; V-mount support
Seat post: MERIDA COMP CC; aluminum MAT; diameter 30.9mm; 5 degree inclination
Right shifter: Shimano ST-EF505-8 EZ-fire
Left shifter: Shimano ST-EF505
Spokes: Black stainless steel
Tyres: Maxxis Detonator; 700x32C; with cord
Pedals: VP VPE-891
Crank arm: 170 mm for all sizes
Movement series: FSA TH-7420ST, cartridge bearing
Doorbell: YWS-Alloy
Seat Clamp: MERIDA Expert
Grips: MERIDA Comp EC
Derailleur: Shimano TY710
