Trek Domane SL 6 AXS 4e gen
Trek Domane SL 6 AXS 4e gen

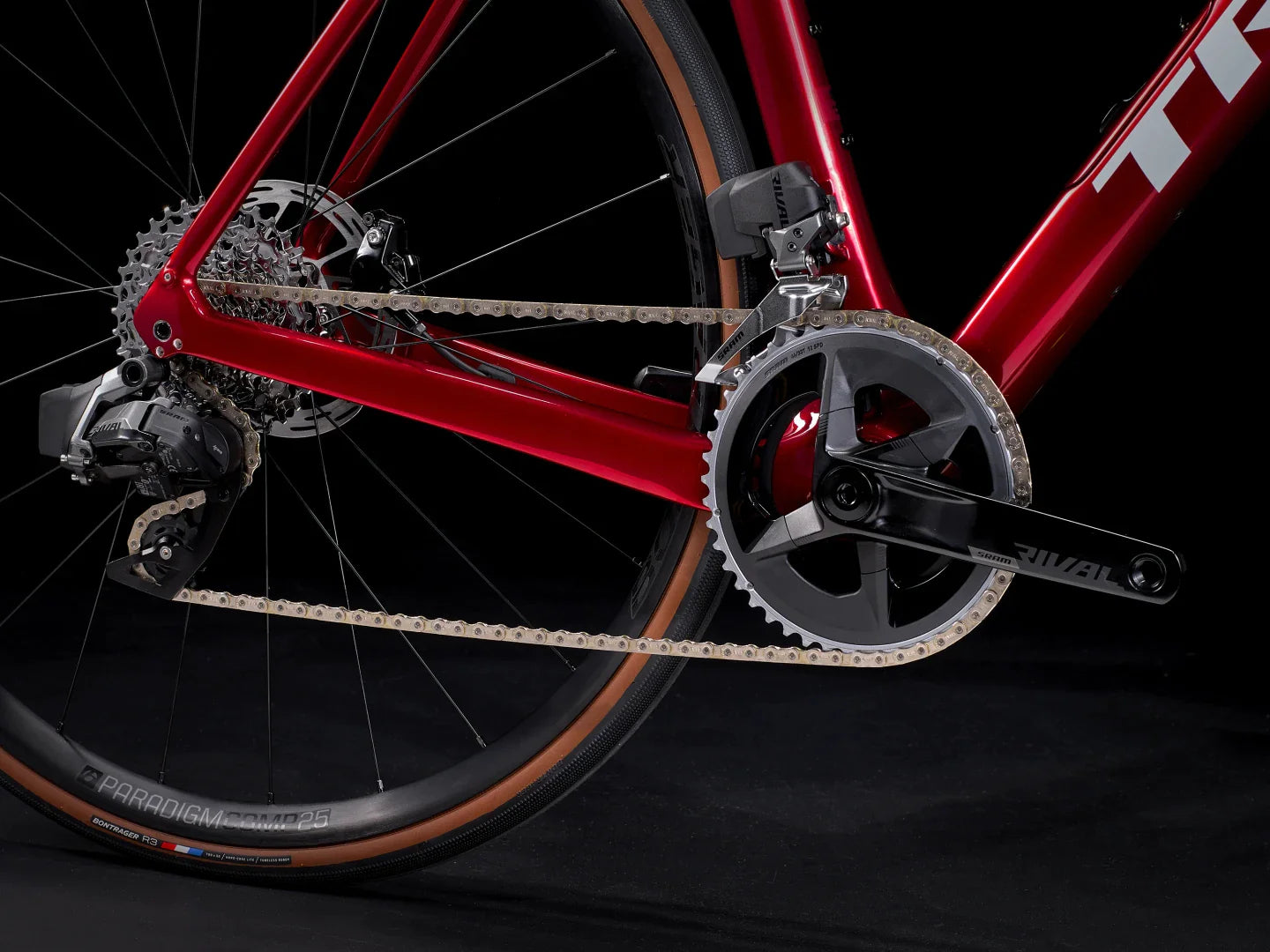

Domane SL 6 AXS is a light and aerodynamic endurance racing bike designed to tackle rough roads and long routes in complete comfort. Thanks to the enormous advantages of a completely wireless SRAM Rival AXS electronic transmission and wheel clearance for tires up to 38mm, the Domane SL 6 is ready to whiz across cobblestones and asphalt alike. The fully integrated handlebar helps create a sleek, elegant silhouette, while the easily accessible storage compartment allows you to store all your essentials. If you add to this the rear IsoSpeed decoupler which allows you to absorb the roughness of the road, the easy-access internal storage compartment and the tubeless ready wheels you will be able to speed both on asphalt surfaces and on cobblestones and light gravel.
Specifications
*Note: Specifications apply to all sizes unless listed separately
Chassis | 500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle |
---|---|
Fork | Domane SLR carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat mount disc, 12x100mm thru axle |
Chassis alignment | Endurance |
Weight | 56 - 8.89kg/19.61lbs |
---|---|
Weight Limit | This model has an overall maximum limit (combined weight of bicycle, rider and load) of 125kg. |
Command | SRAM Rival eTap AXS, 12 speed |
---|---|
Front derailleur | SRAM Rival eTap AXS, weld-on |
Rear derailleur | SRAM Rival eTap AXS |
*Crankset |
Measure: 44, 47 SRAM Rival, 46/33, DUB, 165mm length |
Measure: 50, 52 SRAM Rival, 46/33, DUB, 170mm length |
|
Measure: 54, 56 SRAM Rival, 46/33, DUB, length 172.5mm |
|
Measure: 58, 60, 62 SRAM Rival, 46/33, DUB, 175mm length |
|
Central movement | SRAM DUB, T47 threaded, internal bearing |
Cassette | SRAM XG-1250, 10-36, 12 speed |
Max. size of the crown | 1x : 48 dts, 2x : 52/36 |
Front wheel | Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru axle |
---|---|
Rear wheel | Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, SRAM XD-R 12-speed freehub, 142x12 thru axle |
Front hub | Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru axle |
Circle | Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width |
Tire | Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120tpi, 700x32mm |
Max. dimensions of the tyre | 38mm without fenders, 35mm with fenders |
*Saddle |
Measure: 44, 47, 50, 52 Bontrager Verse Short Comp, steel rails, 155mm width |
---|---|
Measure: 54, 56, 58, 60, 62 Bontrager Verse Short Comp, steel rails, 145mm width |
|
*Seatpost |
Measure: 44, 47, 50, 52, 54, 56 Domane carbon seatpost, KVF profiles, 20mm offset, 280mm length |
Measure: 58, 60, 62 Domane carbon seatpost, KVF profiles, 20mm offset, 320mm length |
|
*Handlebar |
Measure: 44, 47 Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, Di2 internal routing, 75mm reach, 128mm drop, 36cm width |
Measure: 50 Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, Di2 internal routing, 75mm reach, 128mm drop, 38cm width |
|
Measure: 52 Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, Di2 internal routing, 75mm reach, 128mm drop, 40cm width |
|
Measure: 54, 56 Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, Di2 internal routing, 75mm reach, 128mm drop, 42cm width |
|
Measure: 58, 60, 62 Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, Di2 internal routing, 75mm reach, 128mm drop, 44cm width |
|
Handlebar tape | Bontrager Supertack Perf Tape |
*Handlebar stem |
Measure: 44 Trek RCS Pro, -7 degrees, 60mm length |
Measure: 47 Trek RCS Pro, -7 degrees, 70mm length |
|
Measure: 50 Trek RCS Pro, -7 degrees, 80mm length |
|
Measure: 52, 54 Trek RCS Pro, -7 degrees, 90mm length |
|
Measure: 56, 58 Trek RCS Pro, -7 degrees, 100mm length |
|
Measure: 60, 62 Trek RCS Pro, -7 degrees, 110mm length |
|
Brake | SRAM Rival hydraulic disc |
Brake rotor | SRAM Paceline, rounded, centerlock, 160 mm |
Disk size | Max brake rotor size: 160mm front & rear |
Drums | SRAM eTap battery (with charger) |
---|
We reserve the right to make changes to product information on the site at any time without notice, including equipment, specifications, models, colors, materials and prices. Due to supply chain issues, compatible parts may be replaced at any time without notice.
Bike and frame weights are for pre-production painted products at the time of printing. The weight of the finished product may vary.
Measures
Measure | Rider height | Inside leg |
---|---|---|
44 |
150 - 153 cm 4'11" - 5'0" |
71 - 73 cm 28" - 29" |
47 |
152 - 158 cm 5'0" - 5'2" |
71 - 75 cm 28" - 30" |
50 |
158 - 163 cm 5'2" - 5'4" |
74 - 77 cm 29" - 30" |
52 |
163 - 168 cm 5'4" - 5'6" |
76 - 79 cm 30" - 31" |
54 |
168 - 174 cm 5'6" - 5'9" |
78 - 82 cm 31" - 32" |
56 |
174 - 180 cm 5'9" - 5'11" |
81 - 85 cm 32" - 33" |
58 |
180 - 185 cm 5'11" - 6'1" |
84 - 87 cm 33" - 34" |
60 |
185 - 190 cm 6'1" - 6'3" |
86 - 90 cm 34" - 35" |
62 |
190 - 195 cm 6'3" - 6'5" |
89 - 92 cm 35" - 36" |
