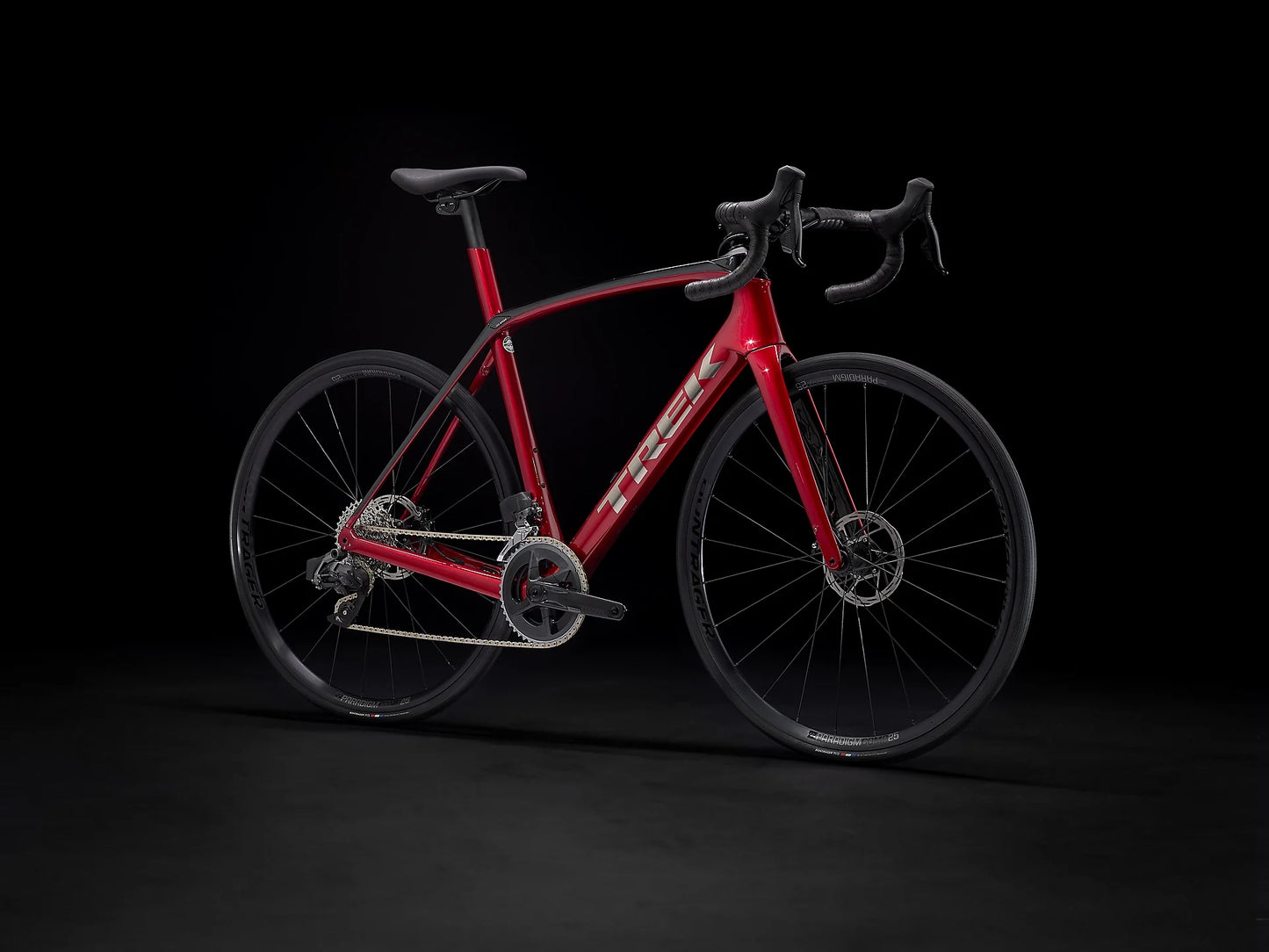

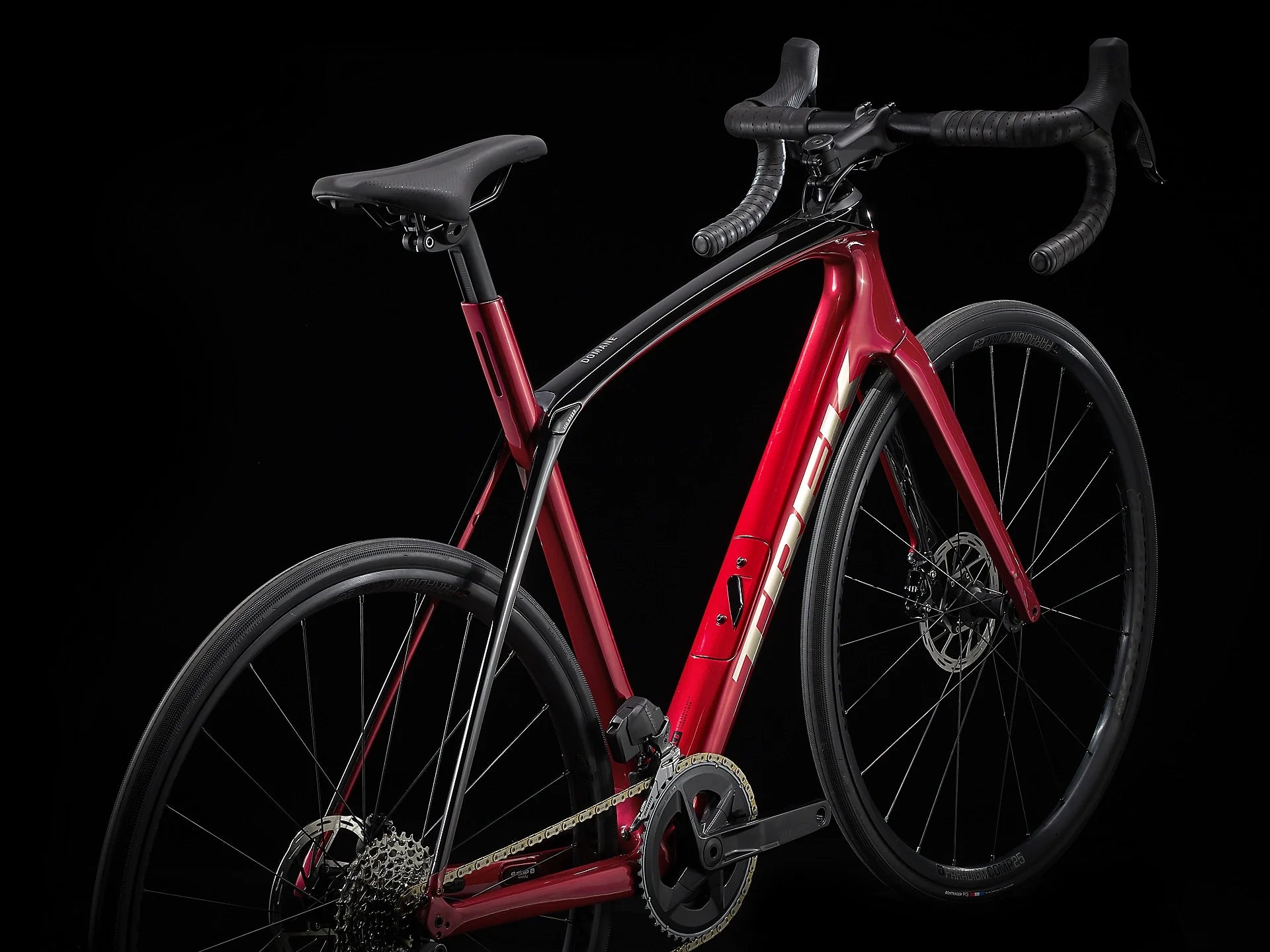

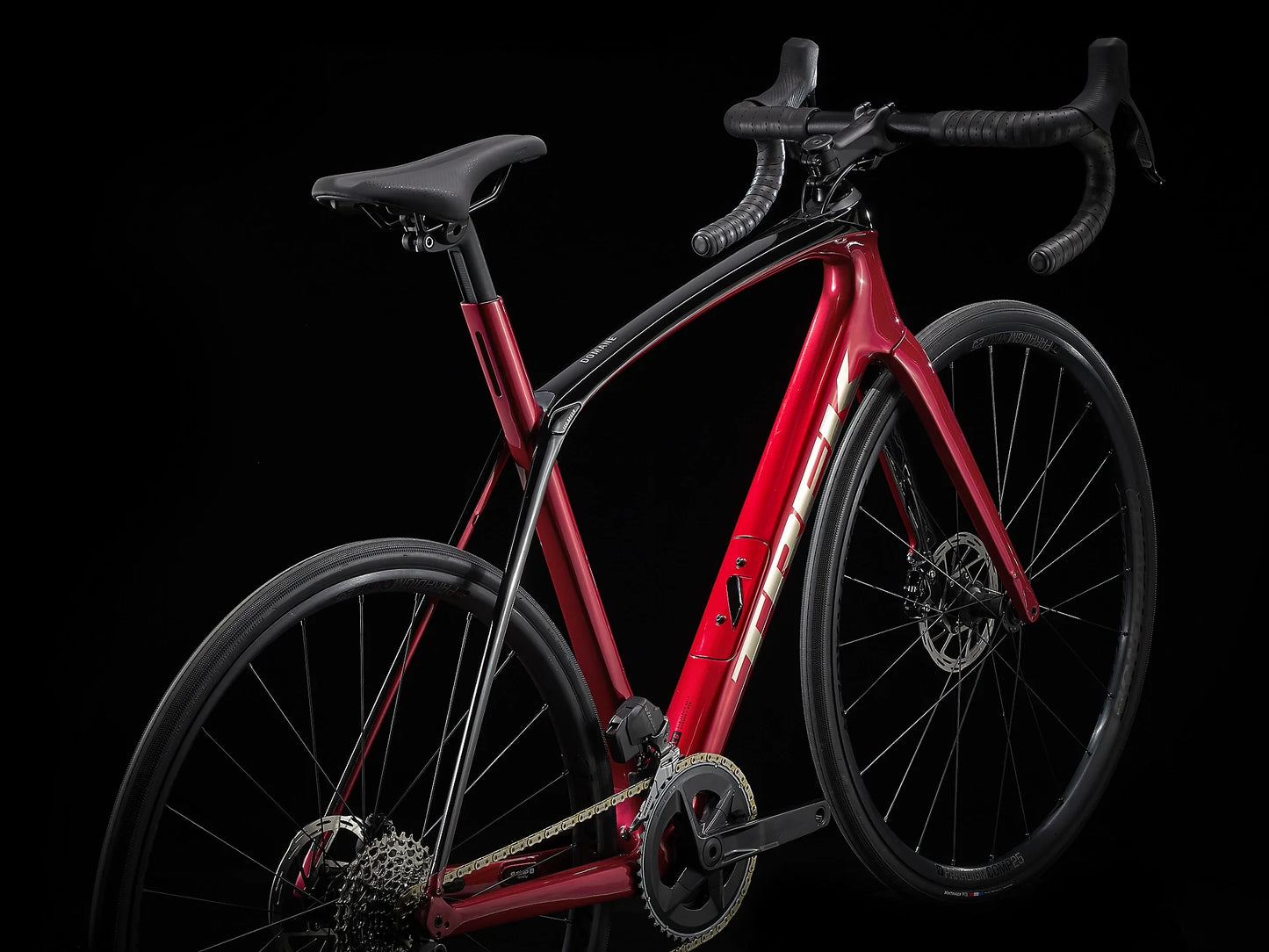

Trek Domane SL 6 AXS Gen 3
Trek Domane SL 6 AXS Gen 3

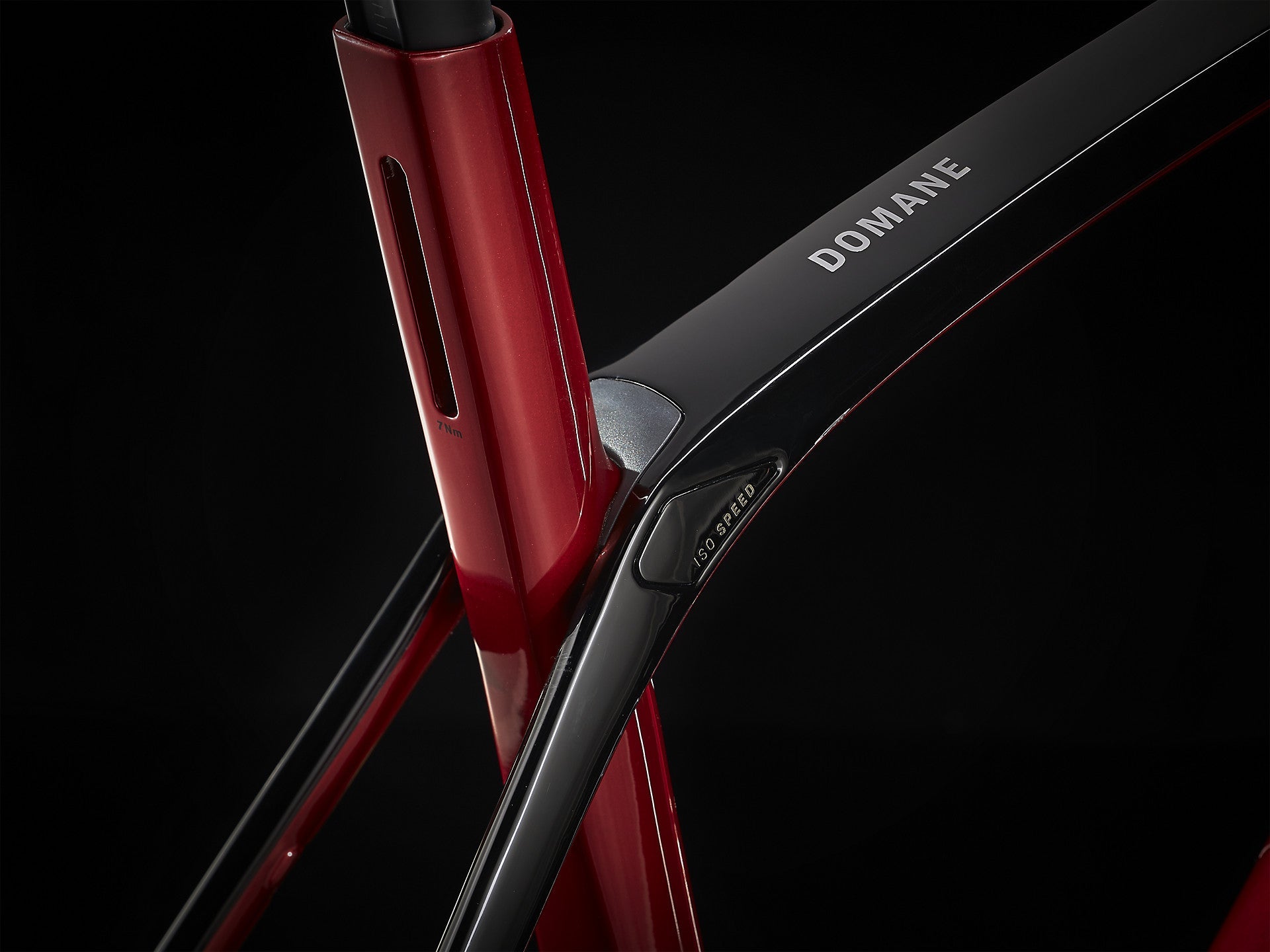

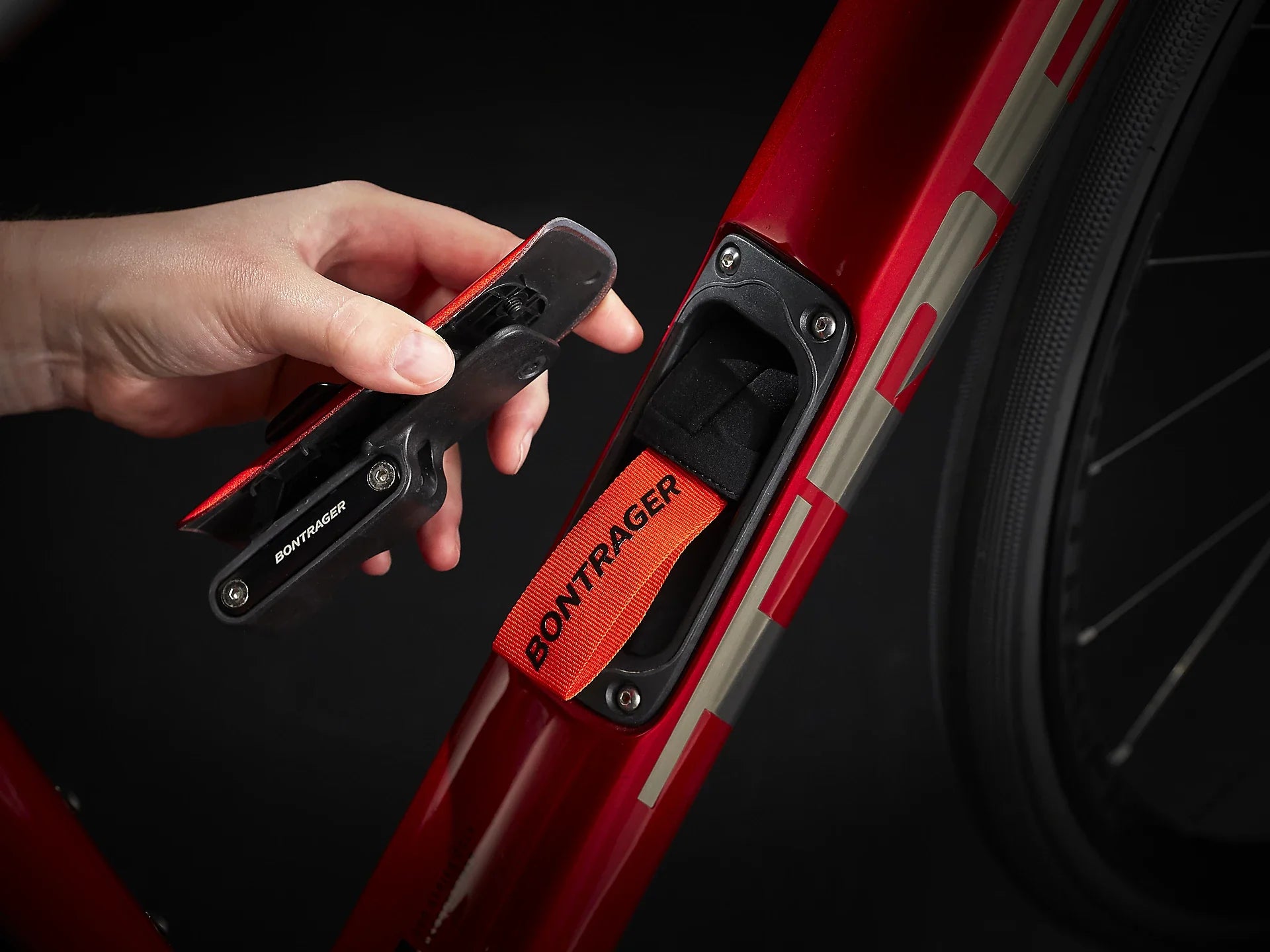

Domane SL 6 AXS is a high-performance endurance racing bike that offers the incredible advantage of SRAM Rival AXS fully wireless electronic drivetrain. If you add to this the front and rear IsoSpeed decouplers to absorb the roughness of the road surface, the practical internal storage compartment and the Tubeless Ready wheels, you will be able to pedal and have more fun than you imagine.
Specifications
*Note: Specifications apply to all sizes unless listed separately

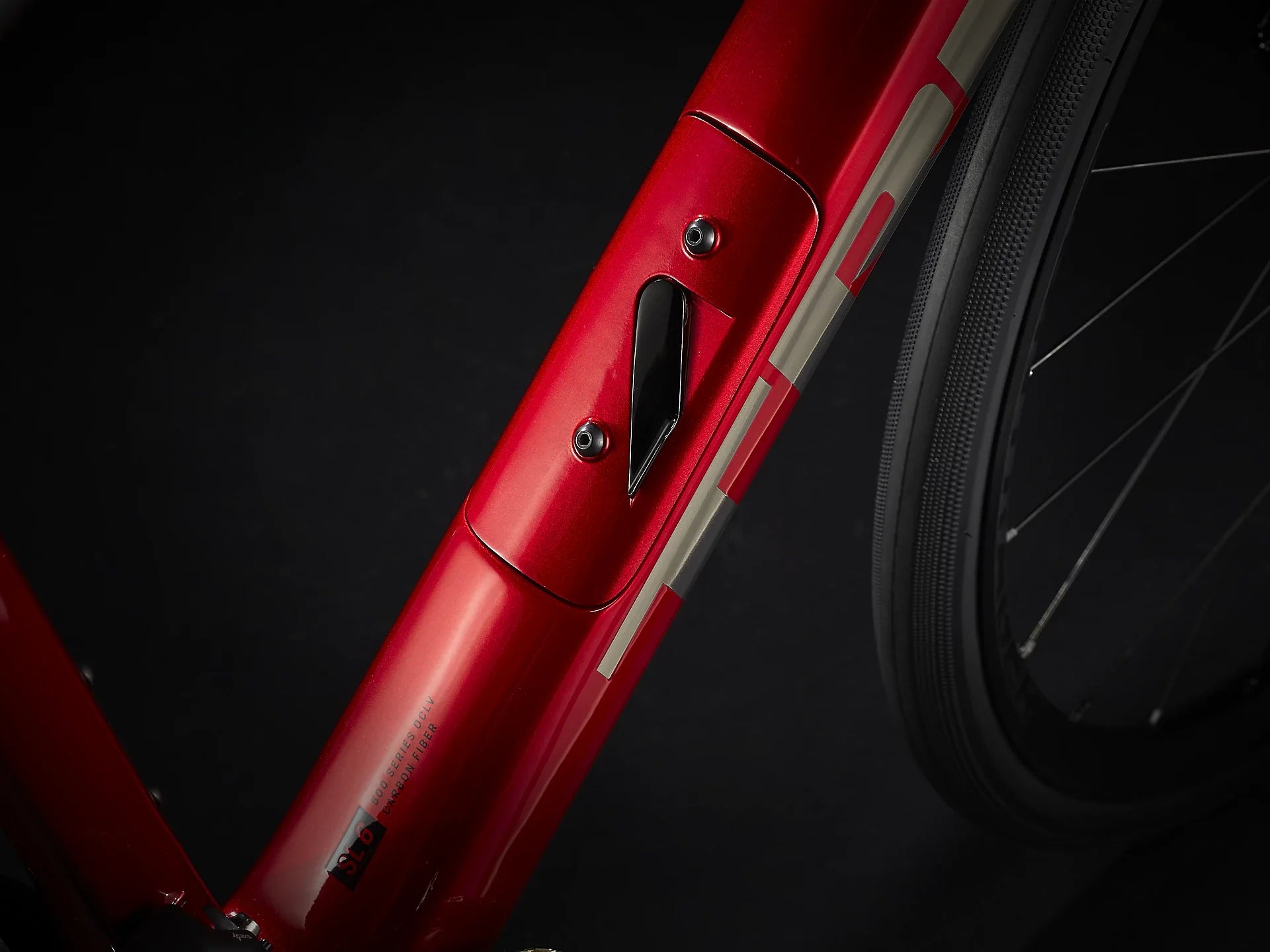

Chassis | 500 Series OCLV Carbon, front and rear IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, DuoTrap S compatible, fender mounts, flat mount disc, 142x12mm thru axle |
---|---|
Fork | Domane SLR carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat mount disc, 12x100mm thru axle |
Chassis alignment | Endurance |
Weight | 56" - 9.14kg |
---|---|
Weight Limit | This model has an overall maximum limit (combined weight of bicycle, rider and load) of 125kg. |
Drums | SRAM eTap battery (with charger) |
---|

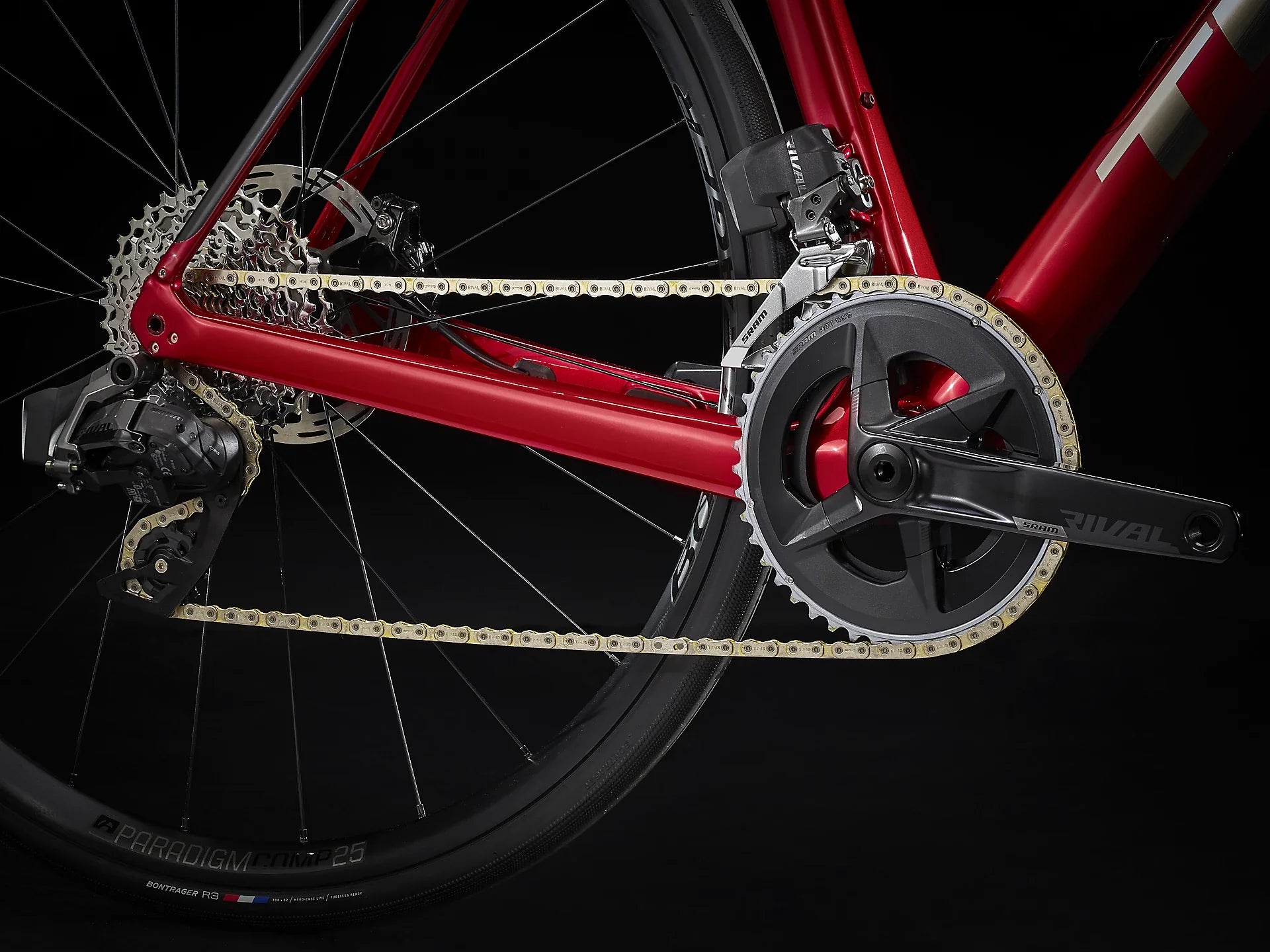

Command | SRAM Rival eTap AXS, 12 speed |
---|---|
Front derailleur | SRAM Rival D1 AXS, weld-on |
Rear derailleur | SRAM Rival AXS |
*Crankset |
Measure: 44, 47 SRAM Rival, 46/33, DUB, 165mm length |
Measure: 50, 52 SRAM Rival, 46/33, DUB, 170mm length |
|
Measure: 54, 56 SRAM Rival, 46/33, DUB, length 172.5mm |
|
Measure: 58, 60, 62 SRAM Rival, 46/33, DUB, 175mm length |
|
Central movement | SRAM DUB, T47 threaded, internal bearing |
Cassette | SRAM XG-1250, 10-36, 12 speed |
Max. size of the crown | 1x : 46 dts, 2x : 52/36 |
Front wheel | Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru axle |
---|---|
Rear wheel | Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, SRAM XD-R 12-speed freehub, 142x12 thru axle |
Front hub | Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru axle |
Front locking | Bontrager Switch thru axle, removable lever |
Rear locking | Bontrager Switch thru axle, removable lever |
Circle | Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width |
Tire | Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120tpi, 700x32mm |
Pneumatic component | Bontrager TLR Sealant, 6oz |
Max. dimensions of the tyre | 38mm |
*Saddle |
Measure: 44, 47, 50, 52 Bontrager Verse Comp, steel rails, 155mm width |
---|---|
Measure: 54, 56, 58, 60, 62 Bontrager Verse Comp, steel rails, 145mm width |
|

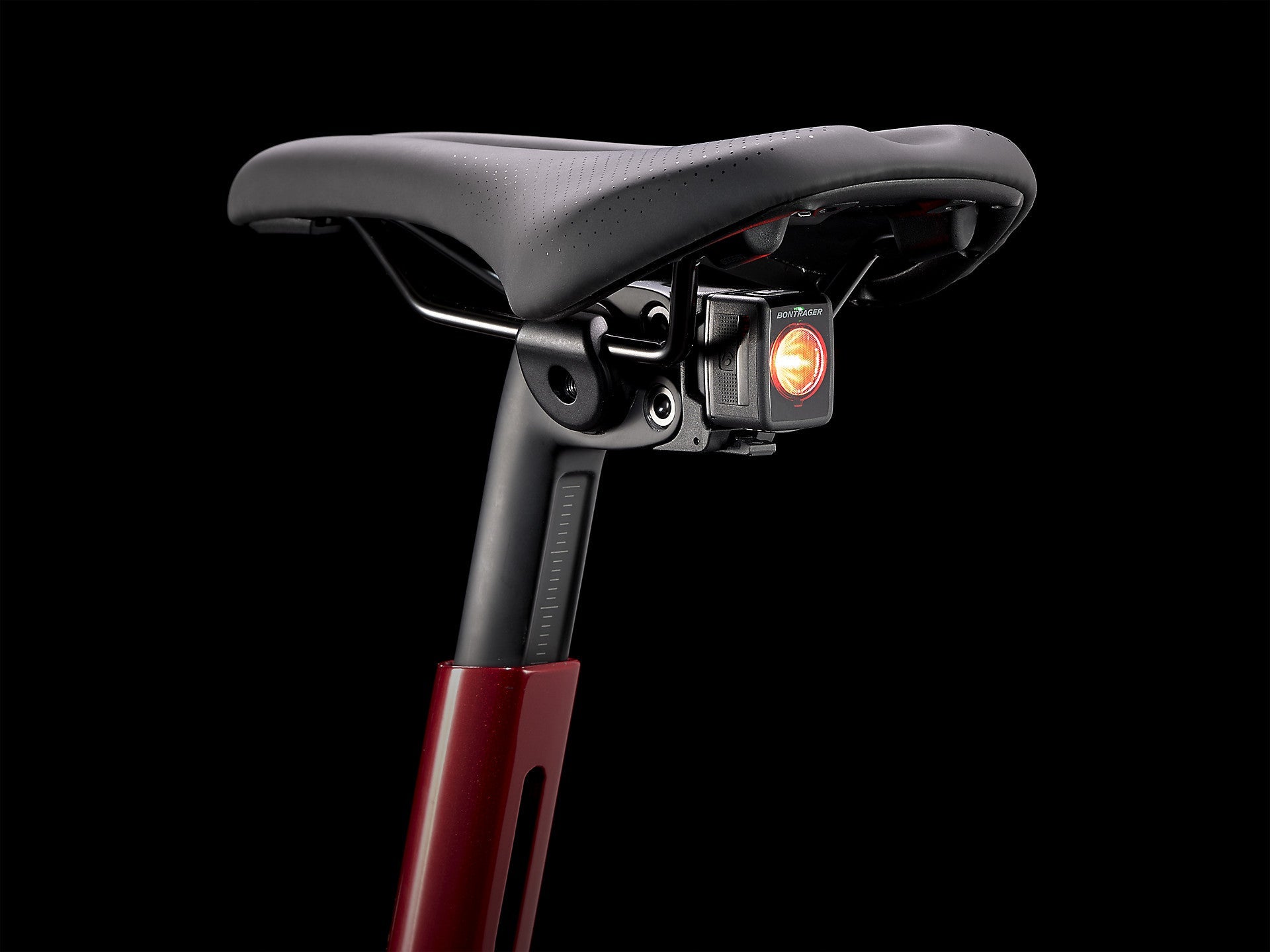

*Seatpost |

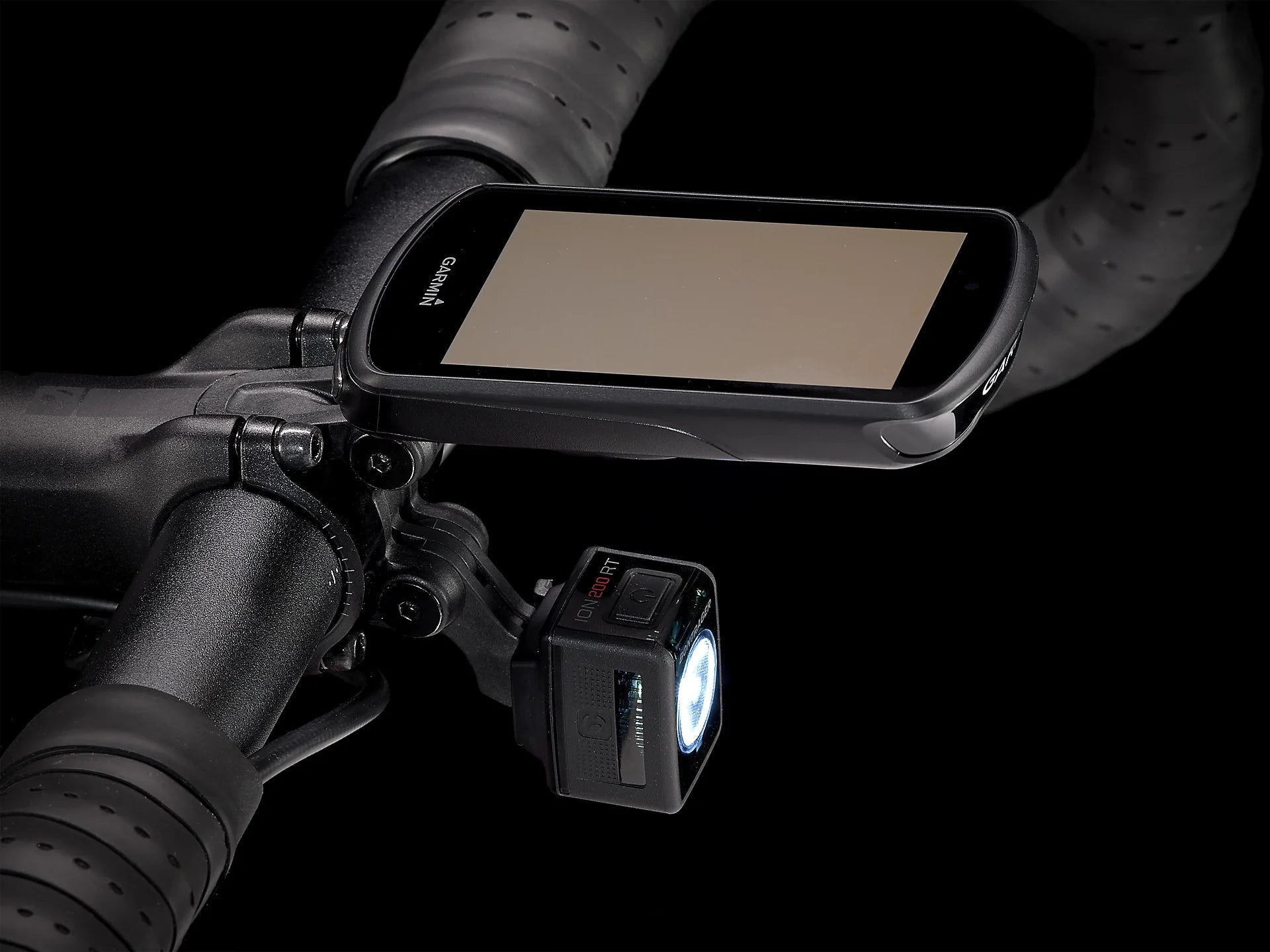

Measure: 44, 47, 50, 52, 54, 56 Bontrager carbon internal seatpost terminal, integrated light mount, 20mm offset, short length |
Measure: 58, 60, 62 Bontrager carbon internal seatpost terminal, integrated light mount, 20mm offset, long length |
|

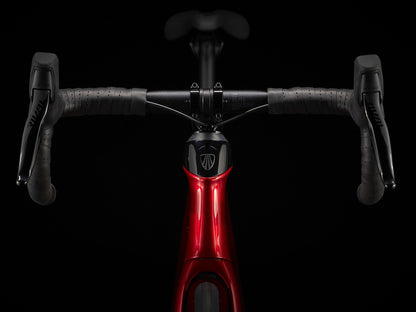

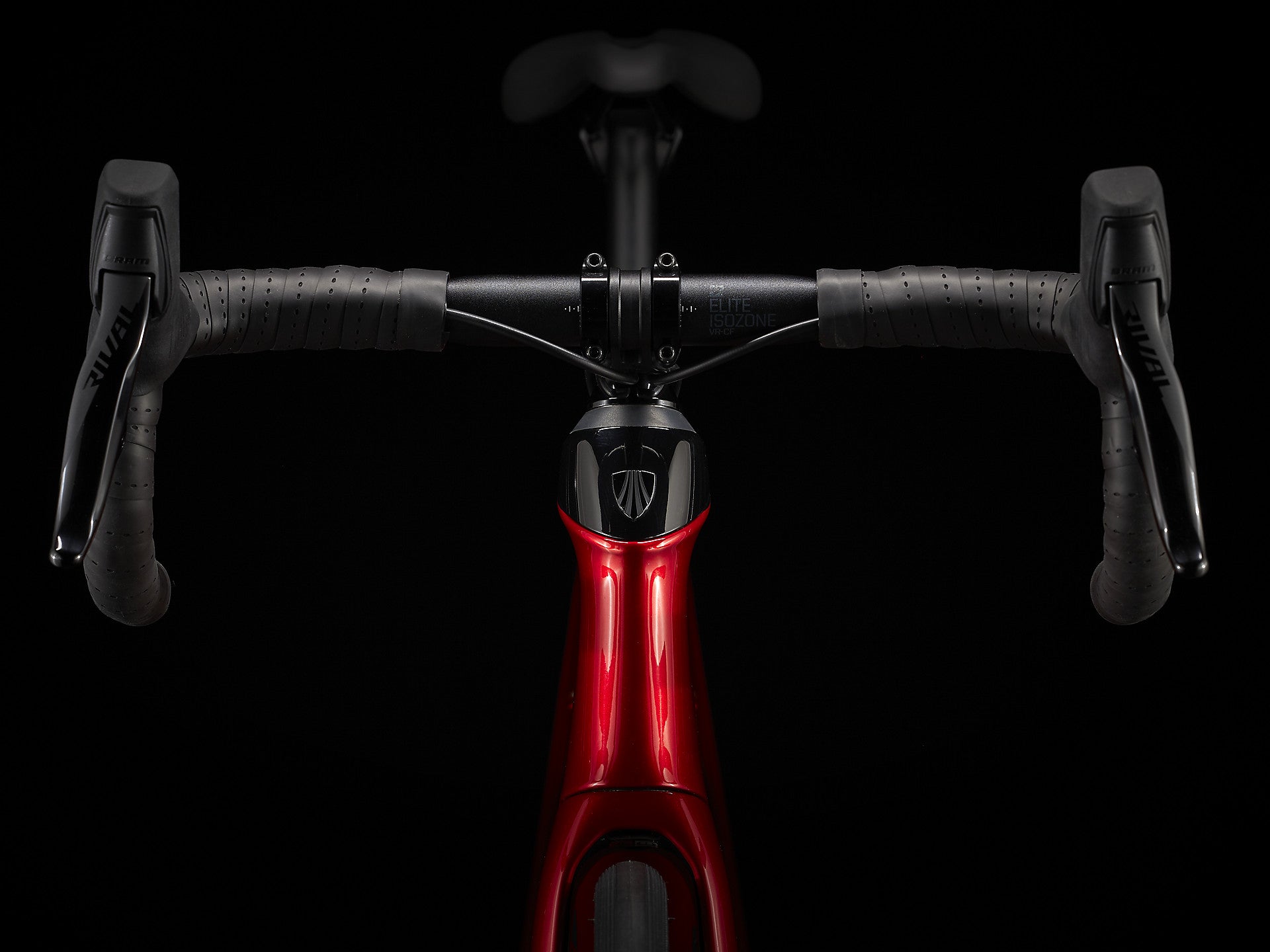

*Handlebar |
Measure: 44, 47 Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, Di2 internal routing, 75mm reach, 128mm drop, 36cm width |
Measure: 50 Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, Di2 internal routing, 75mm reach, 128mm drop, 38cm width |
|
Measure: 52 Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, Di2 internal routing, 75mm reach, 128mm drop, 40cm width |
|
Measure: 54, 56 Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, Di2 internal routing, 93mm reach, 123mm drop, 42cm width |
|
Measure: 58, 60, 62 Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, Di2 internal routing, 93mm reach, 123mm drop, 44cm width |
|
Handlebar tape | Bontrager Supertack Perf Tape |

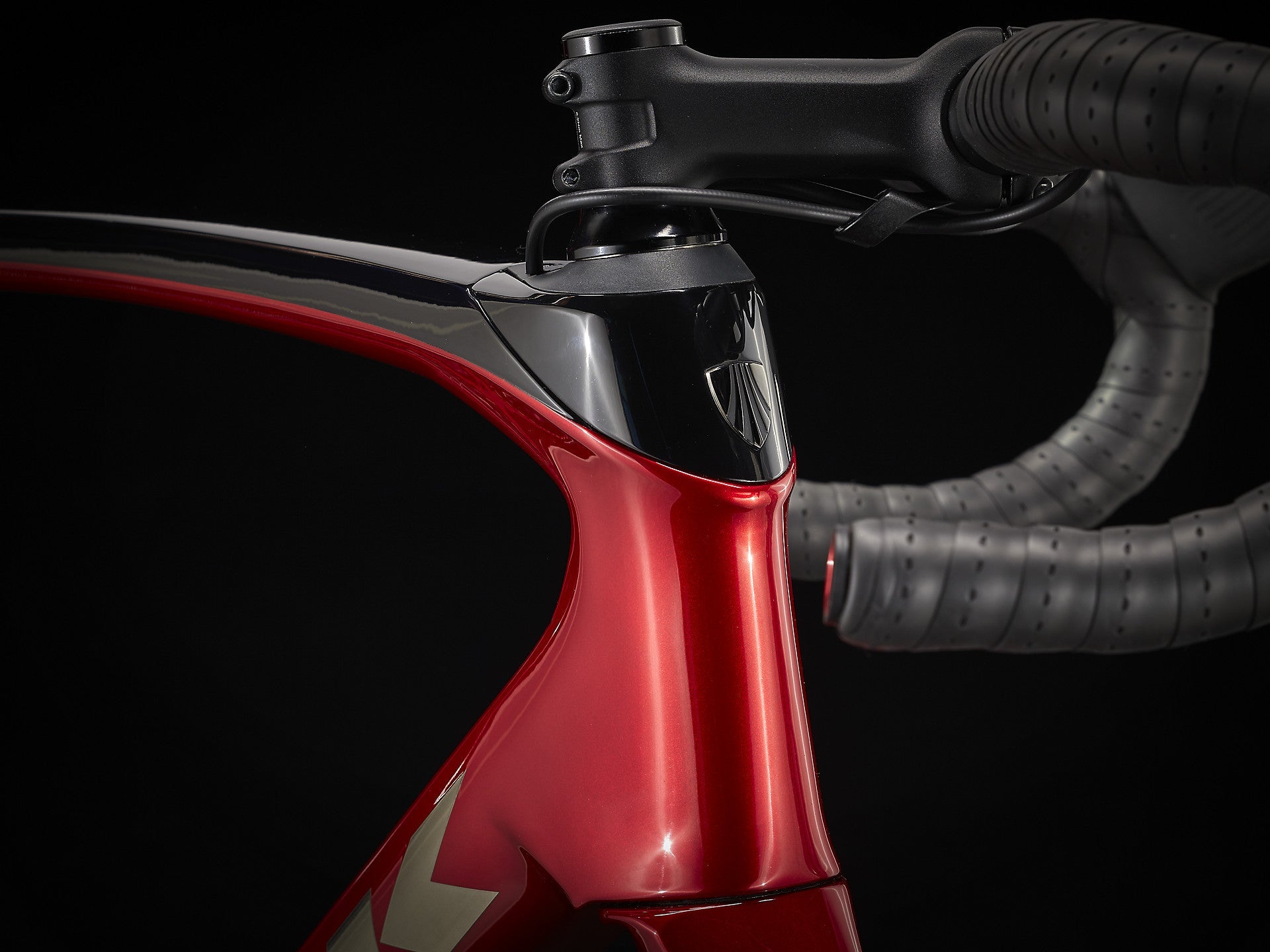

*Handlebar stem |
Measure: 44 Bontrager Pro, 31.8mm, Blendr compatible, 7 degrees, 60mm length |
Measure: 47 Bontrager Pro, 31.8mm, Blendr compatible, 7 degrees, 70mm length |
|
Measure: 50 Bontrager Pro, 31.8mm, Blendr compatible, 7 degrees, 80mm length |
|
Measure: 52, 54 Bontrager Pro, 31.8mm, Blendr compatible, 7 degrees, 90mm length |
|
Measure: 56, 58 Bontrager Pro, 31.8mm, Blendr compatible, 7 degrees, 100mm length |
|
Measure: 60, 62 Bontrager Pro, 31.8mm, Blendr compatible, 7 degrees, 110mm length |
|

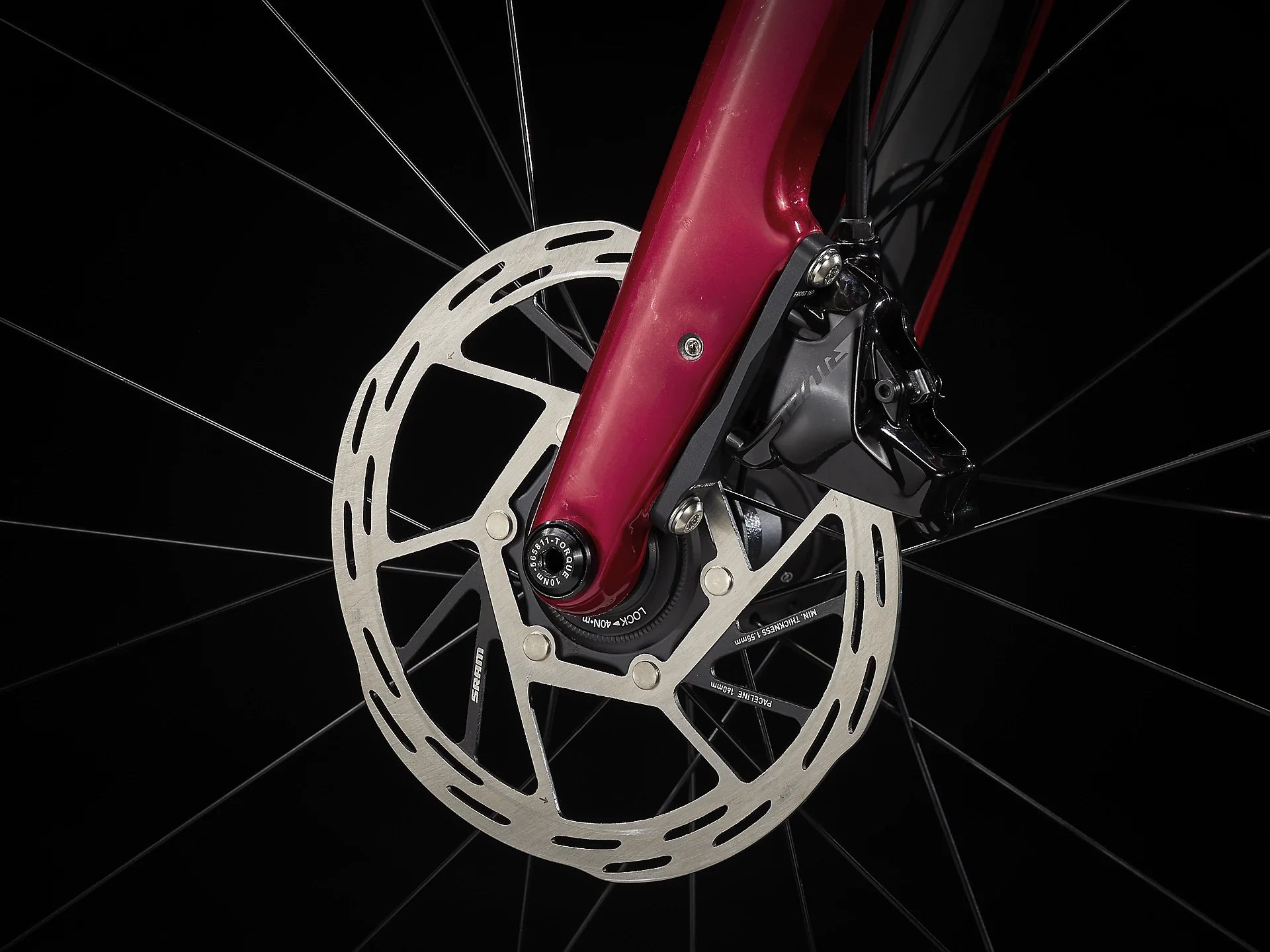

Brake rotor | SRAM Paceline, rounded, centerlock, 160 mm |
Disk size | Max brake rotor size: 160mm front & rear |
Bag | Bontrager BITS frame bag |
---|
We reserve the right to make changes to product information on the site at any time without notice, including equipment, specifications, models, colors, materials and prices. Due to supply chain issues, compatible parts may be replaced at any time without notice.
Bike and frame weights are for pre-production painted products at the time of printing. The weight of the finished product may vary.
Geometries and technologies
The tables below show recommended measurements based on height, but there are other factors, such as the length of your arms and legs, that determine your fit. This is why there are heights for which some recommended measurements overlap each other. Not all cyclists 170cm tall, for example, will have to choose the same size bicycle. The best way to find the correct alignment is to consult an expert at your nearest dealer.
Measure | Rider height | Inside leg |
---|---|---|
44 |
150 - 153 cm 4'11.1" - 5'0.2" |
71 - 73 cm 28.0" - 28.7" |
47 |
152 - 158 cm 4'11.8" - 5'2.2" |
71 - 75 cm 28.0" - 29.5" |
50 |
158 - 163 cm 5'2.2" - 5'4.2" |
74 - 77 cm 29.1" - 30.3" |
52 |
163 - 168 cm 5'4.2" - 5'6.1" |
76 - 79 cm 29.9" - 31.1" |
54 |
168 - 174 cm 5'6.1" - 5'8.5" |
78 - 82 cm 30.7" - 32.3" |
56 |
174 - 180 cm 5'8.5" - 5'10.9" |
81 - 85 cm 31.9" - 33.5" |
58 |
180 - 185 cm 5'10.9" - 6'0.8" |
84 - 87 cm 33.1" - 34.3" |
60 |
185 - 190 cm 6'0.8" - 6'2.8" |
86 - 90 cm 33.9" - 35.4" |
62 |
190 - 195 cm 6'2.8" - 6'4.8" |
89 - 92 cm 35.0" - 36.2" |
