Trek Domane SLR 7 Gen 4
Trek Domane SLR 7 Gen 4
Domane SLR 7 is an ultra-light carbon endurance racing bike, equipped with high-end components designed for fast, high-performance riding. Highest quality OCLV Carbon frame with rear IsoSpeed decoupler, new Shimano Ultegra Di2 wireless electronic drivetrain for precision shifting and OCLV Carbon wheels. Equipped with an easy-access storage compartment to store essentials, it offers versatile spacing for 38c tires that allow you to fly even on the roughest roads and beaten dirt paths.
Specifications
*Note: Specifications apply to all sizes unless listed separately
Chassis | 800 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle |
---|---|
Frame with fork | 800 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle |
*Fork |
Measure: 47, 50, 52, 54 Domane SLR Carbonio, tapered carbon steerer, internal brake routing, mudguard mounts, flat mount disc, carbon dropouts, 12x100mm thru axle |
Measure: 47, 50, 52, 54, 56, 58, 60, 62 Domane SLR carbon, tapered carbon steerer, internal brake cable routing, flat mount disc fender mounts, carbon dropout, 12x100mm thru axle |
|
Chassis alignment | Endurance |
Weight | 56 - 7.89kg |
---|---|
Weight Limit | This bike has a maximum overall weight limit (combined weight of bike, rider and load) of 125kg. |
Drums | Shimano BT-DN300 |
---|---|
Charger | Charging cable supplied |
*Command |
Measure: 47, 50, 52, 54, 56, 58, 60, 62 Shimano Ultegra R8170 Di2, 12 speed |
---|---|
Measure: 47, 50, 52, 54, 56, 58, 60, 62 Shimano Ultegra R8170, Di2, 12 speed |
|
Front derailleur | Shimano Ultegra R8150 Di2, weld-on, downward swing |
Rear derailleur | Shimano Ultegra R8150 Di2, sprocket 34T max |
*Crankset |
Measure: 47, 50 Shimano Ultegra R8100, 50/34, length 165mm |
Measure: 47 Shimano Ultegra R8100, 50/34, 165mm |
|
Measure: 50, 52, 54 Shimano Ultegra R8100, 50/34, length 170mm |
|
Measure: 56 Shimano Ultegra R8100, 50/34, length 172.5mm |
|
Measure: 58, 60, 62 Shimano Ultegra R8100, 50/34, length 175mm |
|
Central movement | Praxis, T47 threaded, internal bearing |
*Cassette |
Measure: 47, 50, 52, 54, 56, 58, 60, 62 Shimano Ultegra R8101, 11-34, 12 speed |
Measure: 47, 50, 52, 54, 56, 58, 60, 62 Shimano Ultegra R8100, 11-34, 12 speed |
|
Chain | Shimano Ultegra/XT M8100, 12 speed |
Max. size of the crown | 1x : 48 dts, 2x : 52/36 |
Front wheel | Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim profile, 100x12mm thru axle |
---|---|
Rear wheel | Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim profile, Shimano 11-speed freehub body, 142x12mm thru axle |
Front locking | Bontrager Switch thru axle, removable lever |
Rear locking | Bontrager Switch thru axle, removable lever |
Tire | Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120tpi, 700x32mm |
Pneumatic component | Bontrager TLR Sealant, 6oz |
Paranipple | Bontrager TLR |
Max. dimensions of the tyre | 38mm without fenders, 35mm with fenders |
*Saddle |
Measure: 47, 50, 52 Verse Short Elite, hollow magnesium rails, 155mm width |
---|---|
Measure: 47, 50, 52 Bontrager Verse Short Elite, stainless steel hollow rails, 155mm width |
|
Measure: 54, 56, 58, 60, 62 Verse Short Elite, hollow magnesium rails, 145mm width |
|
Measure: 54, 56, 58, 60, 62 Verse Short Elite, stainless steel hollow rails, 145mm width |
|
*Seatpost |
Measure: 47, 50, 52, 54, 56 KVF aero carbon seatpost, 20mm offset, 280mm length |
Measure: 58, 60, 62 KVF aero carbon seatpost, 20mm offset, 320mm length |
|
*Handlebar |
Measure: 47 Bontrager Pro Isocore VR-SF, 38cm |
Measure: 50, 52 Bontrager Pro Isocore VR-SF, 40cm |
|
Measure: 54, 56 Bontrager Pro Isocore VR-SF, 42cm |
|
Measure: 58, 60, 62 Bontrager Pro Isocore VR-SF, 44cm |
|
Handlebar tape | Bontrager Supertack Perf Tape |
*Handlebar stem |
Measure: 47 Trek RCS Pro, -7 degrees, 70mm length |
Measure: 50 Trek RCS Pro, -7 degrees, 80mm length |
|
Measure: 52, 54 Trek RCS Pro, -7 degrees, 90mm length |
|
Measure: 56, 58 Trek RCS Pro, -7 degrees, 100mm length |
|
Measure: 60, 62 Trek RCS Pro, -7 degrees, 110mm length |
|

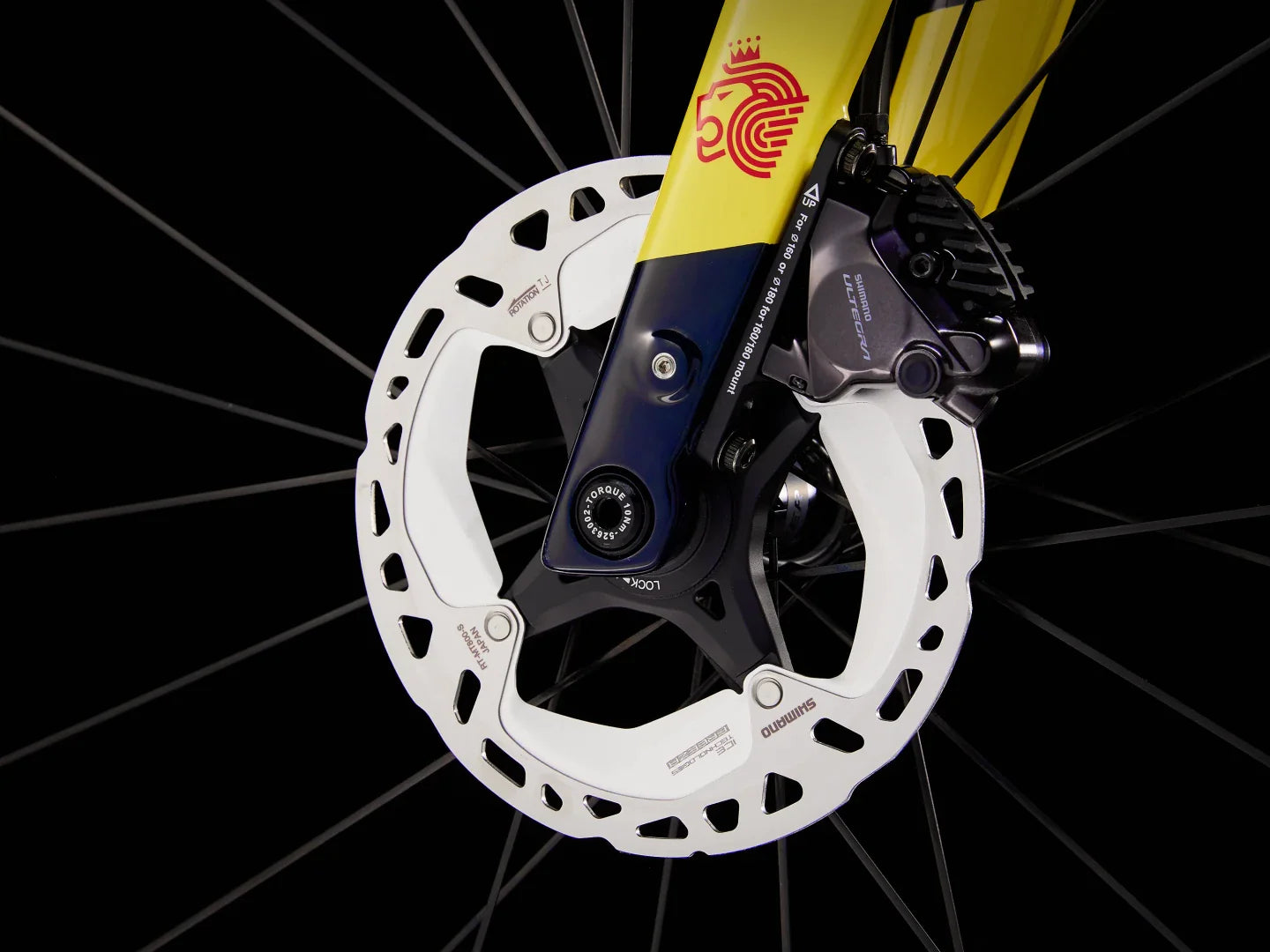

Brake | Shimano Ultegra hydraulic disc |
Brake rotor | Shimano CL800, centerlock, 160mm |
Disk size | Max brake rotor size: 160mm front & rear |
Bag | Bontrager BITS frame bag |
---|
We reserve the right to make changes to product information on the site at any time without notice, including equipment, specifications, models, colors, materials and prices. Due to supply chain issues, compatible parts may be replaced at any time without notice.
Bike and frame weights are for pre-production painted products at the time of printing. The weight of the finished product may vary.
Measures
Measure | Rider height | Inside leg |
---|---|---|
47 |
152 - 158 cm 5'0" - 5'2" |
71 - 75 cm 28" - 30" |
50 |
158 - 163 cm 5'2" - 5'4" |
74 - 77 cm 29" - 30" |
52 |
163 - 168 cm 5'4" - 5'6" |
76 - 79 cm 30" - 31" |
54 |
168 - 174 cm 5'6" - 5'9" |
78 - 82 cm 31" - 32" |
56 |
174 - 180 cm 5'9" - 5'11" |
81 - 85 cm 32" - 33" |
58 |
180 - 185 cm 5'11" - 6'1" |
84 - 87 cm 33" - 34" |
60 |
185 - 190 cm 6'1" - 6'3" |
86 - 90 cm 34" - 35" |
62 |
190 - 195 cm 6'3" - 6'5" |
89 - 92 cm 35" - 36" |
