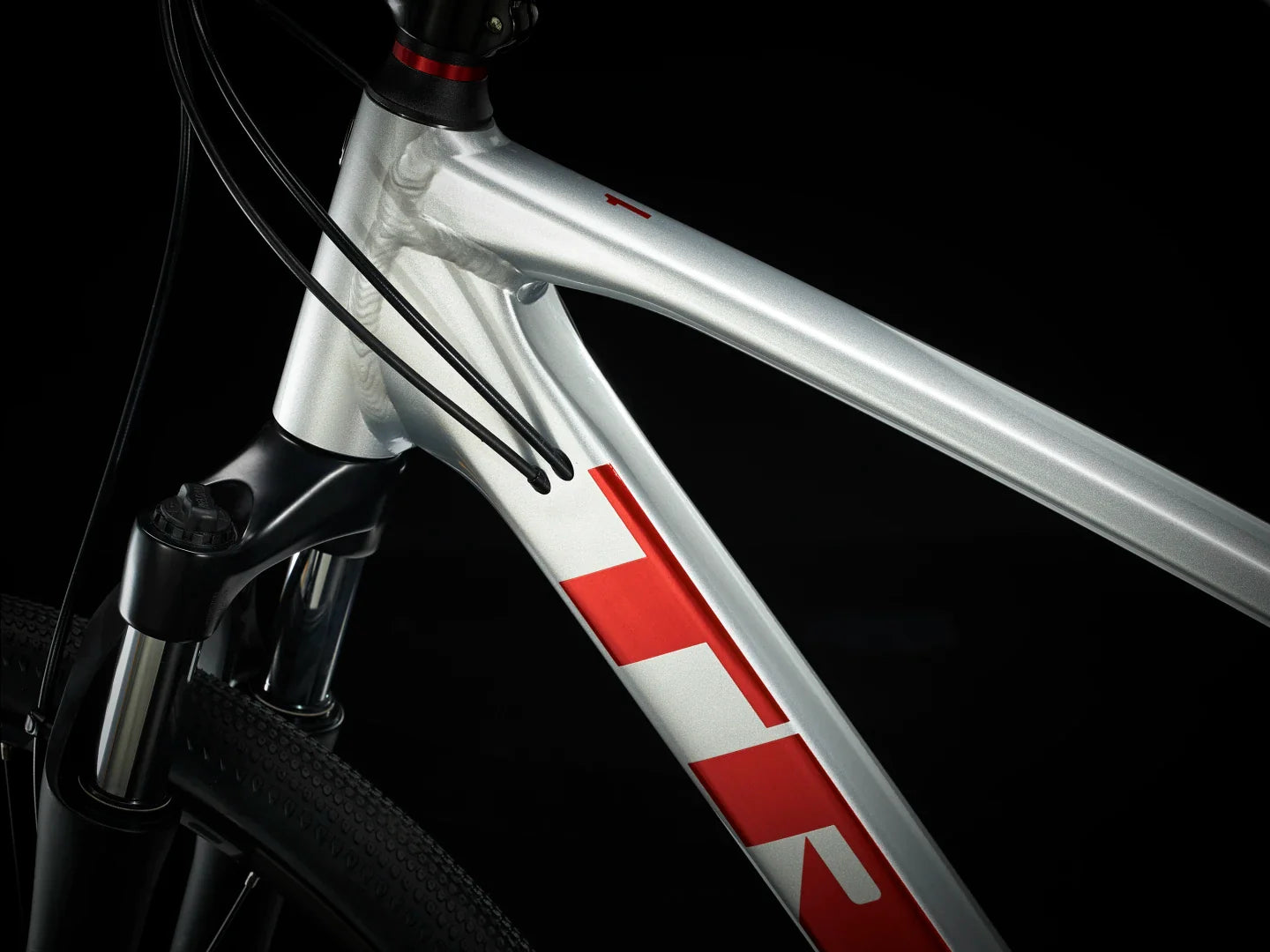

Trek Dual Sport 1 Gen 4
Trek Dual Sport 1 Gen 4
Couldn't load pickup availability
The Trek Dual Sport 1 is a hybrid bike in the true sense of the term: it excels on a variety of surfaces and can accompany you as efficiently on asphalt as on light off-road sections. A lightweight frame, front suspension and all-terrain tires make the Dual Sport 1 an incredibly efficient bike ideal for fitness and recreational rides.
Specifications
*Note: Specifications apply to all sizes unless listed separately
| Chassis | Alpha Gold Aluminium, DuoTrap S compatible, internal cable routing, fender and rack mounts, post mount disc, kickstand mount, 135x5mm QR |
|---|---|
| Fork | SR Suntour NEX, coil spring, preload, QR 100x5mm, 63mm travel |
Wheels
| Front hub | Formula DC-20, alloy, 6-bolt, 5x100mm QR |
|---|---|
| Rear hub | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR |
| Circle | Bontrager Connection, alloy, double chamber, 32 hole, Schrader valve |
| Tire | Bontrager GR1 Comp, cable bead, 60tpi, 700x40c |
| Max. dimensions of the tyre | Frame: 700x45c with fenders, 29x2.10" without fenders Fork: See manufacturer |
Transmission
| Command | Shimano EF500, 8 speed |
|---|---|
| Front derailleur | Shimano Tourney TY710, 34.9mm clamp, top swing, dual pull |
| Rear derailleur | Shimano Altus M310 |
| Crankset | Forged alloy, 46/30, chain guard, 170mm length |
| Central movement | Sealed cartridge, 68mm |
| Cassette | Shimano HG31, 11-32, 8 speed |
| Chain | KMC Z8.3 |
| Pedal | Wellgo nylon platform |
Components
| Saddle | Bontrager Sports |
|---|---|
| Seatpost | Bontrager alloy, 27.2mm, 12mm offset, 330mm length |
| *Handlebar | Size: S, M Bontrager Riser, steel, 25.4mm, 30mm rise, 600mm width |
| Size: L, XL Bontrager Riser, steel, 25.4mm, 30mm rise, 620mm width |
|
| Knobs | Bontrager Satellite |
| *Handlebar stem | Size: S, M Bontrager Alloy, 25.4mm clamp, 10 degrees, 90mm length |
| Size: L, XL Bontrager Alloy, 25.4mm clamp, 10 degrees, 110mm length |
|
| Headset | Sealed cartridge bearings, 1-1/8" threadless |
| Brake | Tektro MD-M280 mechanical disc, 160mm rotor |
| Weight | M - 13.54 kg / 29.86 lbs |
|---|---|
| Weight Limit | This bike has a maximum overall weight limit (combined weight of bike, rider and load) of 136kg. |
We reserve the right to make changes to product information on the site at any time without notice, including equipment, specifications, models, colors, materials and prices. Due to supply chain issues, compatible parts may be replaced at any time without notice.
Bike and frame weights are for pre-production painted products at the time of printing. The weight of the finished product may vary.
Measures
| Measure | Rider height | Inside leg |
|---|---|---|
| S |
155 - 165 cm 5'1" - 5'5" |
72 - 78 cm 28" - 31" |
| M |
165 - 175 cm 5'5" - 5'9" |
77 - 83 cm 30" - 33" |
| L |
175 - 186 cm 5'9" - 6'1" |
82 - 88 cm 32" - 35" |
| XL |
186 - 197 cm 6'1" - 6'6" |
87 - 93 cm 34" - 37" |
