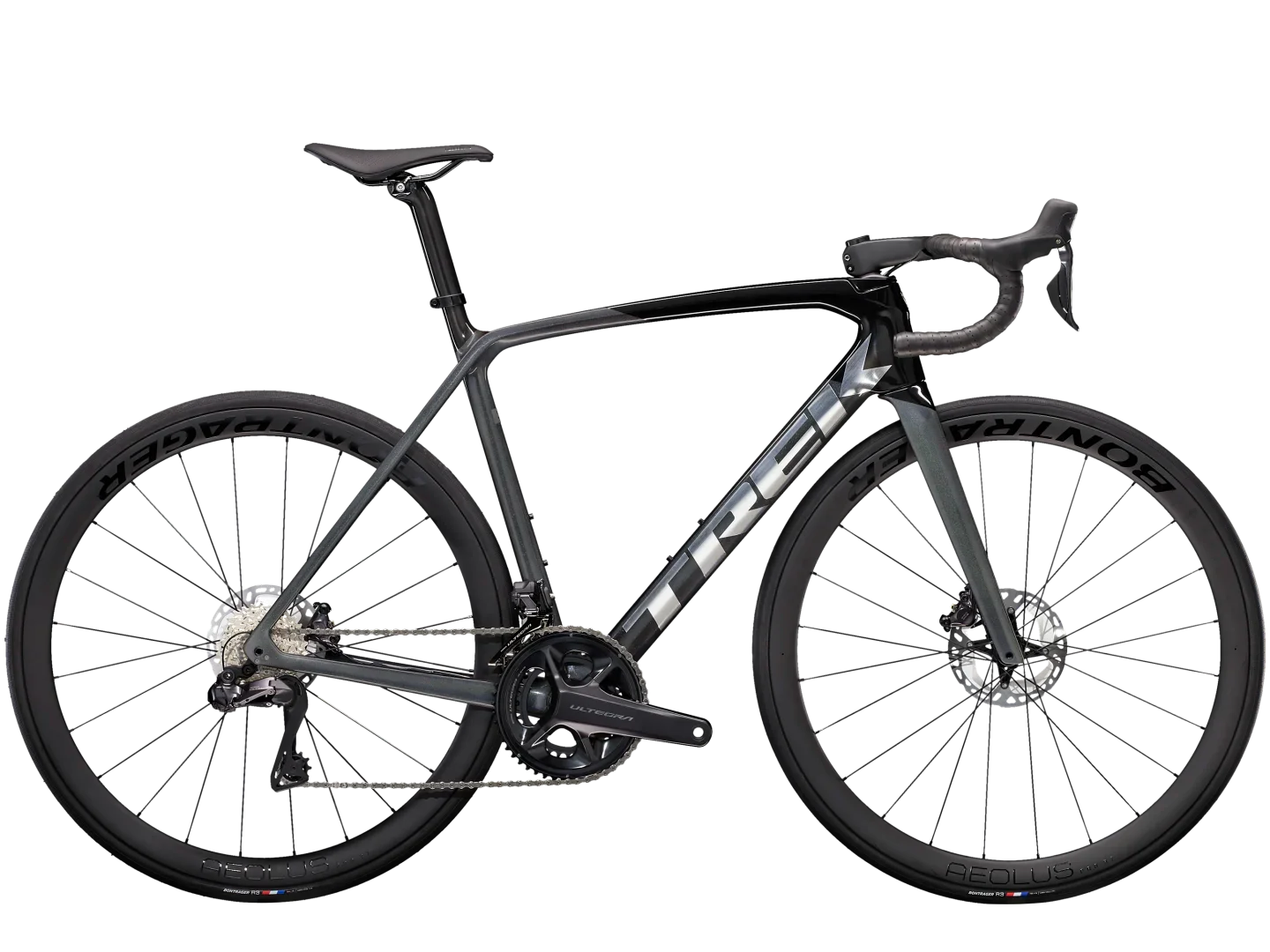

Trek Emonda SLR 7
Trek Emonda SLR 7
Couldn't load pickup availability
Émonda SLR 7 Disc is an ultra-light, aerodynamic carbon racing bike, designed and built to be the fastest climbing solution we've ever made. Discover the legendary ride quality and incredible speed of our platform achieved thanks to the aero tubes made from the lightest OCLV layering ever. You can also count on the speed and precision of the Shimano Ultegra Di2 wireless electronic transmission.
Specifications
*Note: Specifications apply to all sizes unless listed separately
| Chassis | Ultralight 800 Series OCLV Carbon, race-optimized carbon tube, tapered head tube, internal cable routing, DuoTrap S compatible, flat mount disc, 142x12mm thru axle |
|---|---|
| Fork | Émonda SLR full carbon, tapered carbon steerer, internal brake cable routing, flat mount disc, 12x100mm thru axle |
| Chassis alignment | H1.5 Race |
| Weight | 56 - 7.10 kg / 15.66 lbs |
|---|---|
| Weight Limit | This bike has a maximum overall weight limit (combined weight of bike, rider and load) of 125kg. |
| Drums | Shimano BT-DN300 |
|---|---|
| Charger | Charging cable supplied |
| *Command |
Measure: 47, 50, 52, 54, 56, 58, 60, 62 Shimano Ultegra R8170 Di2, 12 speed |
|---|---|
|
Measure: 47, 50, 52, 54, 56, 58, 60, 62 Shimano Ultegra R8170, Di2, 12 speed |
|
| Front derailleur | Shimano Ultegra R8150 Di2, weld-on, downward swing |
| Rear derailleur | Shimano Ultegra R8150 Di2, sprocket 34T max |
| *Crankset |
Measure: 47 Shimano Ultegra R8100, 52/36, length 165mm |
|
Measure: 50, 52 Shimano Ultegra R8100, 52/36, length 170mm |
|
|
Measure: 54, 56, 58 Shimano Ultegra R8100, 52/36, length 172.5mm |
|
|
Measure: 60, 62 Shimano Ultegra R8100, 52/36, length 175mm |
|
| Central movement | Praxis, T47 threaded, internal bearing |
| *Cassette |
Measure: 47, 50, 52, 54, 56, 58, 60, 62 Shimano Ultegra R8100, 11-30, 12 speed |
|
Measure: 47, 50, 52, 54, 56, 58, 60, 62 Shimano Ultegra R8101, 11-30, 12 speed |
|
| Chain | Shimano Ultegra/XT M8100, 12 speed |
| Max. size of the crown | 1x: 50T, 2x: 53/39 |
| Front wheel | Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim profile, 100x12mm thru axle |
|---|---|
| Rear wheel | Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim profile, Shimano 11-speed freehub body, 142x12mm thru axle |
| Front locking | Bontrager Switch thru axle, removable lever |
| Rear locking | Bontrager Switch thru axle, removable lever |
| Tire | Bontrager R3 Hard-Case Lite, aramid bead, 120tpi, 700x25mm |
| Max. dimensions of the tyre | 28mm |
| *Saddle |
Measure: 47, 50, 52 Bontrager Aeolus P2 Elite, 155mm width |
|---|---|
|
Measure: 54, 56, 58, 60, 62 Bontrager Aeolus Elite, austenite rails, 145mm width |
|
| *Seatpost |
Measure: 47, 50, 52, 54 Bontrager carbon seatpost terminal, 20mm offset, short length |
|
Measure: 56, 58, 60, 62 Bontrager alloy seat post, 20mm offset, long length |
|
| *Handlebar/stem (integrated) |
Measure: 47, 50 Bontrager Aeolus RSL integrated handlebar and stem, OCLV Carbon, Di2 routing, 100mm reach, 124mm drop, 38cm width, 80mm stem length |
|
Measure: 52 Bontrager Aeolus RSL integrated handlebar and stem, OCLV Carbon, Di2 routing, 100mm reach, 124mm drop, 40cm width, 90mm stem length |
|
|
Measure: 54 Bontrager Aeolus RSL integrated handlebar and stem, OCLV Carbon, Di2 routing, 100mm reach, 124mm drop, 42cm width, 90mm stem length |
|
|
Measure: 56 Bontrager Aeolus RSL integrated handlebar and stem, OCLV Carbon, Di2 routing, 100mm reach, 124mm drop, 42cm width, 100mm stem length |
|
|
Measure: 58 Bontrager Aeolus RSL integrated handlebar and stem, OCLV Carbon, Di2 routing, 100mm reach, 124mm drop, 42cm width, 110mm stem length |
|
|
Measure: 60, 62 Bontrager Aeolus RSL integrated handlebar and stem, OCLV Carbon, Di2 routing, 100mm reach, 124mm drop, 44cm width, 110mm stem length |
|
| Handlebar tape | Bontrager Supertack Perf Tape |
| Brake | Shimano Ultegra hydraulic disc |
| *Brake rotor |
Measure: 47, 50, 52, 54, 56, 58, 60, 62 Shimano MT800, centerlock, 160mm |
|
Measure: 47, 50, 52, 54, 56, 58, 60, 62 Shimano CL800, centerlock, 160mm |
|
| Disk size | Max brake rotor size: 160mm front & rear |
We reserve the right to make changes to product information on the site at any time without notice, including equipment, specifications, models, colors, materials and prices. Due to supply chain issues, compatible parts may be replaced at any time without notice.
Bike and frame weights are for pre-production painted products at the time of printing. The weight of the finished product may vary.
Measures
| Measure | Rider height | Inside leg |
|---|---|---|
| 47 |
152 - 158 cm 5'0" - 5'2" |
71 - 75 cm 28" - 30" |
| 50 |
158 - 163 cm 5'2" - 5'4" |
74 - 77 cm 29" - 30" |
| 52 |
163 - 168 cm 5'4" - 5'6" |
76 - 79 cm 30" - 31" |
| 54 |
168 - 174 cm 5'6" - 5'9" |
78 - 82 cm 31" - 32" |
| 56 |
174 - 180 cm 5'9" - 5'11" |
81 - 85 cm 32" - 33" |
| 58 |
180 - 185 cm 5'11" - 6'1" |
84 - 87 cm 33" - 34" |
| 60 |
185 - 190 cm 6'1" - 6'3" |
86 - 90 cm 34" - 35" |
| 62 |
190 - 195 cm 6'3" - 6'5" |
89 - 92 cm 35" - 36" |
