Trek

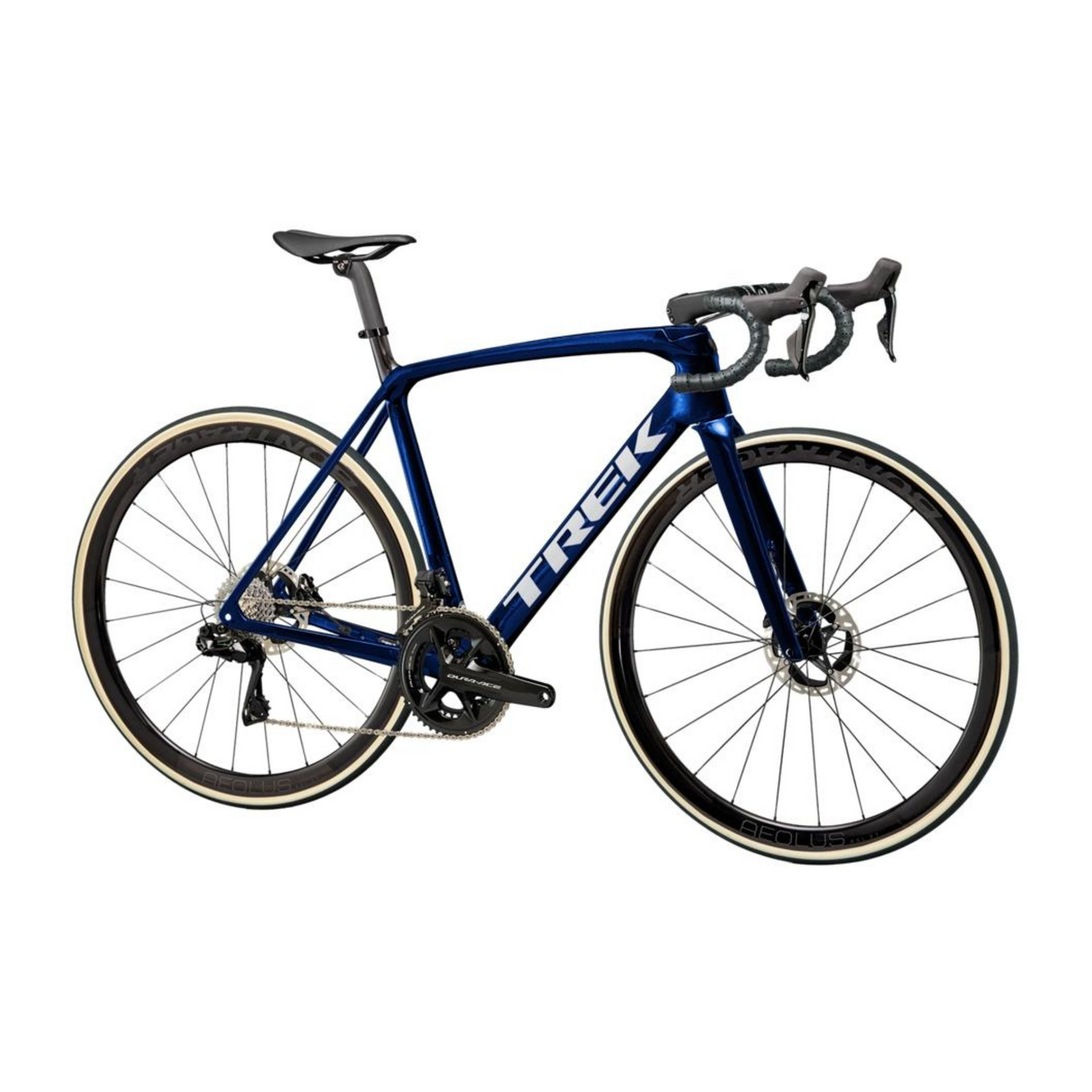

Trek Emonda SLR 9 Project One
Trek Emonda SLR 9 Project One
Couldn't load pickup availability
Trek Emonda SLR 9 Project One
Chassis
Ultralight 800 Series OCLV Carbon, race-optimized carbon tube, tapered head tube, internal cable routing, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
Fork
Émonda SLR full carbon, tapered carbon steerer, internal brake cable routing, flat mount disc, 12x100mm thru axle
Chassis alignment
H1.5 Race
Front wheel
Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim profile, 100x12mm thru axle
Rear wheel
Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim profile, Shimano 11/12 freehub 142x12mm thru axle
Front locking
Bontrager Switch thru axle, removable lever
Rear locking
Bontrager Switch thru axle, removable lever
Tire
Size: 47, 50, 52, 54, 56, 58, 60, 62
Bontrager R3 Hard-Case Lite, aramid bead, 120tpi, 700x25c
Size: 47, 50, 52, 54, 56, 58, 60, 62
Bontrager R4 320, 700x25c
Paranipple
Bontrager Aeolus XXX wheel cover tape
Max. dimensions of the tyre
28c
Command
Shimano Dura-Ace R9270 Di2, 12 speed
Front derailleur
Shimano Dura-Ace R9250 Di2, weld-on, downward swing
Rear derailleur
Shimano Dura Ace R9250 Di2
Crankset
Size: 47
Shimano Dura-Ace R9200, 52/36, 165mm length
Size: 50, 52
Shimano Dura-Ace R9200, 52/36, length 170mm
Size: 54, 56, 58
Shimano Dura-Ace R9200, 52/36, length 172.5mm
Size: 60, 62
Shimano Dura-Ace R9200, 52/36, length 175mm
Central movement
Praxis, T47 threaded, internal bearing
Cassette
Shimano Dura-Ace R9200, 11-30, 12 speed
Chain
Shimano Dura-Ace/XTR M9100, 12 speed
Max. size of the crown
1x: 50T, 2x: 53/39
Saddle
Size: 47, 50, 52
Bontrager Aeolus P2 Pro, carbon rails, 155mm width
Size: 47, 50, 52
Aeolus P2 RSL, carbon rails, 155mm width
Size: 54, 56, 58, 60, 62
Bontrager Aeolus Pro, carbon rails, 145mm width
Size: 54, 56, 58, 60, 62
Aeolus P2 RSL, carbon rails, 145mm width
Seatpost
Size: 47, 50, 52, 54
Bontrager carbon seatpost terminal, 20mm offset, short length
Size: 56, 58, 60, 62
Bontrager alloy seat post, 20mm offset, long length
Integrated handlebar + stem
Size: 47, 50
Bontrager Aeolus RSL integrated handlebar and stem, OCLV Carbon, Di2 routing, 100mm reach, 124mm drop, 38cm width, 80mm stem length
Size: 52
Bontrager Aeolus RSL integrated handlebar and stem, OCLV Carbon, Di2 routing, 100mm reach, 124mm drop, 40cm width, 90mm stem length
Size: 54
Bontrager Aeolus RSL integrated handlebar and stem, OCLV Carbon, Di2 routing, 100mm reach, 124mm drop, 42cm width, 90mm stem length
Size: 56
Bontrager Aeolus RSL integrated handlebar and stem, OCLV Carbon, Di2 routing, 100mm reach, 124mm drop, 42cm width, 100mm stem length
Size: 58
Bontrager Aeolus RSL integrated handlebar and stem, OCLV Carbon, Di2 routing, 100mm reach, 124mm drop, 42cm width, 110mm stem length
Size: 60, 62
Bontrager Aeolus RSL integrated handlebar and stem, OCLV Carbon, Di2 routing, 100mm reach, 124mm drop, 44cm width, 110mm stem length
Handlebar tape
Bontrager Supertack Perf Tape
Brake rotor
Shimano MT900, centerlock, 160mm
Disk size
Max brake rotor size: 160mm front and rear
Drums
TQ 360Wh
Charger
Charging cable supplied
Weight
56 - 6.60 kg / 14.56 lbs
Weight Limit
This model has an overall maximum limit (combined weight of bicycle, rider and load) of 125 kg.
We reserve the right to make changes to product information on the site at any time without notice, including equipment, specifications, models, colors, materials and prices. Due to supply chain issues, compatible parts may be replaced at any time without notice.
Bike and frame weights are for pre-production painted products at the time of printing. The weight of the finished product may vary.
