Trek Fuel EXE 9.8 GX AXS
Trek Fuel EXE 9.8 GX AXS
Regular price
€6.899,00
Regular price
€10.969,00
Sale price
€6.899,00
Unit price
/
per
Fuel EXe 9.8 GX AXS takes a revolutionary approach to electric mountain bikes with a new optimized motor, with space aeronautics technology in a tiny but powerful solution. The frame is made of carbon fiber which is light, stiff and agile for snappy and fun handling. And to make sure you don't miss anything, the bike features carbon wheels and wireless technology gears from SRAM GX AXS with fluid suspension from RockShox Lyrik Select+ and SuperDeluxe Select+ rear suspension.
Specifications
Frame KitChassis | OCLV Mountain Carbon, removable battery, internal cable routing, alloy rocker link, 34.9mm seat tube, high chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel |
---|---|
Fork | RockShox Lyrik Select+, DebonAir spring, Charger 2.1 RC damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 150mm travel |
Suspension | RockShox Super Deluxe Select+ RT, 205mm x 60mm |
Wheels
Front wheel | Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6 bolts, Boost110, 15mm thru axle |
---|---|
Rear wheel | Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD drive, Boost148, 12mm thru axle |
Rear hub | Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108 teeth, SRAM XD drive, Boost148, 12mm thru axle |
Rear locking | Bontrager Switch thru axle, removable lever |
Circle | Bontrager Line Elite 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle |
*Tire | Size: S, M, L, XL Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120tpi. 29x2.50” |
Size: S, M, L, XL Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewall, aramid bead, 120tpi. 29x2.50” |
|
Pneumatic component | Bontrager TLR Sealant, 6oz |
Paranipple | Bontrager TLR |
Transmission
Command | SRAM GX Eagle AXS, 12 speed |
---|---|
Rear derailleur | SRAM GX Eagle AXS |
Crankset | E*thirteen E*spec Plus, 34T, 165mm length |
Crank | E*thirteen E*spec Race, carbon, 34T, 165mm length |
Crown | SRAM X-SYNC, 32T, alloy |
Cassette | SRAM Eagle XG-1275, 10-52, 12 speed |
Chain | SRAM GX Eagle, 12 speed |
Components
Saddle | Bontrager Arvada, austenite rails, 138mm width |
---|---|
*Seatpost | Size: S Bontrager Line Elite dropper seatpost, 100mm travel, MaxFlow, internal cable routing, 34.9mm, 345mm length |
Size: M Bontrager Line Elite dropper seatpost, 150mm travel, MaxFlow, internal cable routing, 34.9mm, 440mm length |
|
Measurement: L Bontrager Line Elite dropper seatpost, 170mm travel, MaxFlow, internal cable routing, 34.9mm, 485mm length |
|
Size: XL Bontrager Line Elite dropper seatpost, 200mm travel, MaxFlow, internal cable routing, 34.9mm, 550mm length |
|
*Handlebar + integrated stem | Size: S Bontrager RSL integrated handlebar/stem, OCLV Carbon, 27.5mm bar rise, 820mm width, 0 degree stem rise, 35mm stem length |
Size: M, L, XL Bontrager RSL integrated handlebar/stem, OCLV Carbon, 27.5mm bar rise, 820mm width, 0 degree stem rise, 45mm stem length |
|
Knobs | Bontrager XR Trail Elite, nylon lockout |

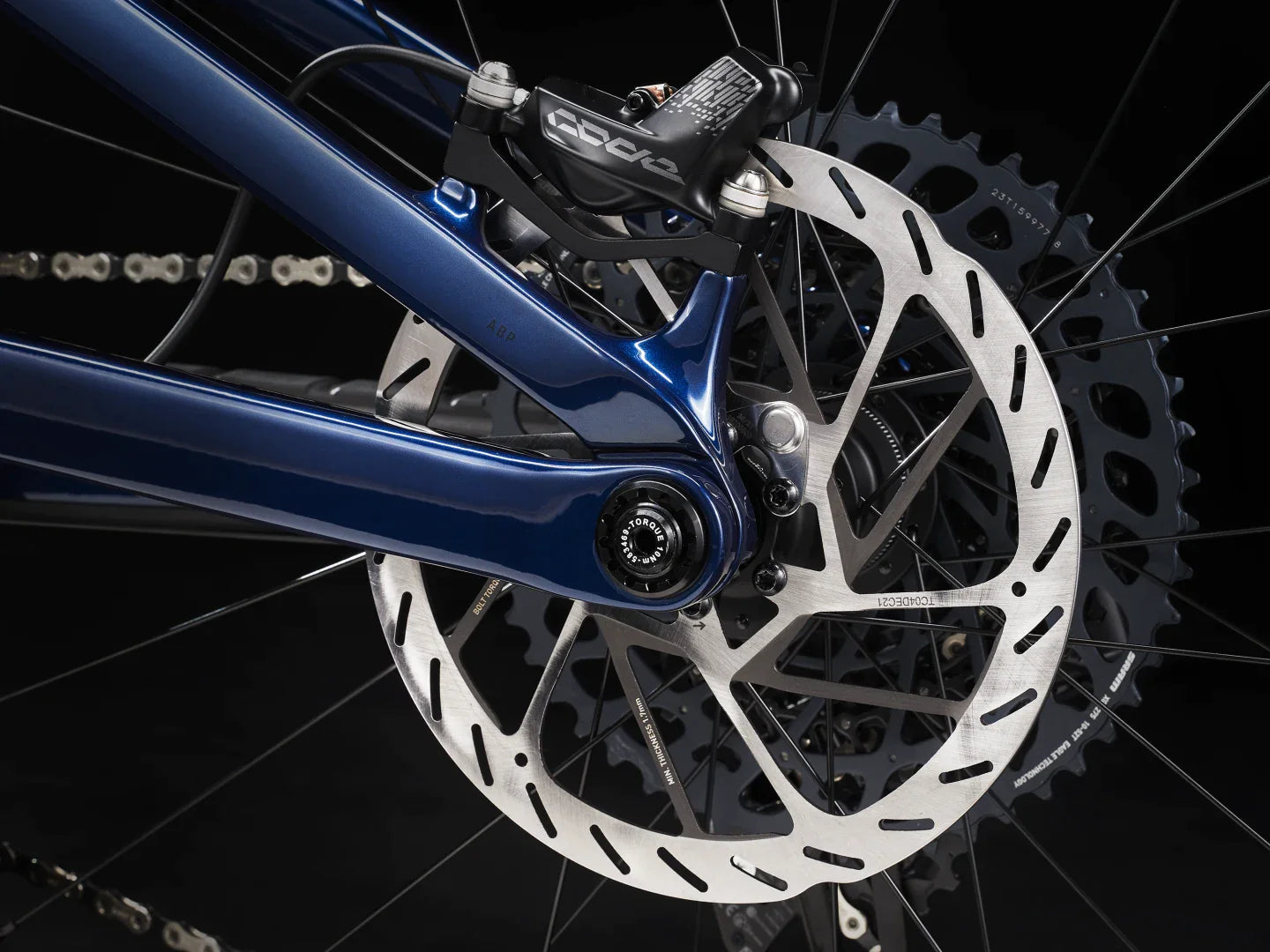

Brake rotor | SRAM 6 bolts, 200mm |
Brake set | SRAM Code R 4-piston hydraulic disc |
Accessories
Drums | TQ 360Wh |
---|---|
*Controllers | Size: S, M, L, XL TQ LED display with Bluetooth and ANT+ connectivity |
Size: S, M, L, XL TQ installed on the handlebar |
|
Motor | TQ-HPR50, 50 Nm, 250 watts maximum continuous power rating, 300 watts peak power |
*Electronics | Size: S, M, L, XL TQ 4A battery charger |
Size: S, M, L, XL SRAM AXS auxiliary power cable |
Weight
Weight | M - 18.17 kg / 40.06 lbs (with TLR sealant, without tube) |
---|---|
Weight Limit | This bike has a maximum overall weight limit (combined weight of bike, rider and cargo) of 136kg. |
- We reserve the right to make changes to product information on the site at any time without notice, including equipment, specifications, models, colors, materials and prices.
- Due to supply chain issues, compatible parts may be replaced at any time without notice. Prices shown are the manufacturer's suggested retail prices.
- Bike and frame weights are for pre-production painted products at the time of printing. The weight of the finished product may vary.
Measures
Measure | Rider height | Inside leg |
---|---|---|
S |
155 - 165 cm 5'1" - 5'5" |
74 - 78 cm 29" - 31" |
M |
165 - 176 cm 5'5" - 5'9" |
79 - 83 cm 31" - 33" |
L |
177 - 188 cm 5'10" - 6'2" |
84 - 89 cm 33" - 35" |
XL |
188 - 195 cm 6'2" - 6'5" |
89 - 91 cm 35" - 36" |
