Trek FX 1
FX 1 is a hybrid bike equipped with a lightweight aluminum frame and quality components capable of giving its all wherever you want to go. It's perfect for those who want to ride more, go out with the family, get some exercise or commute to work in a versatile vehicle backed by a lifetime warranty.
Specifications
*Note: Specifications apply to all sizes unless listed separately
Frame Kit

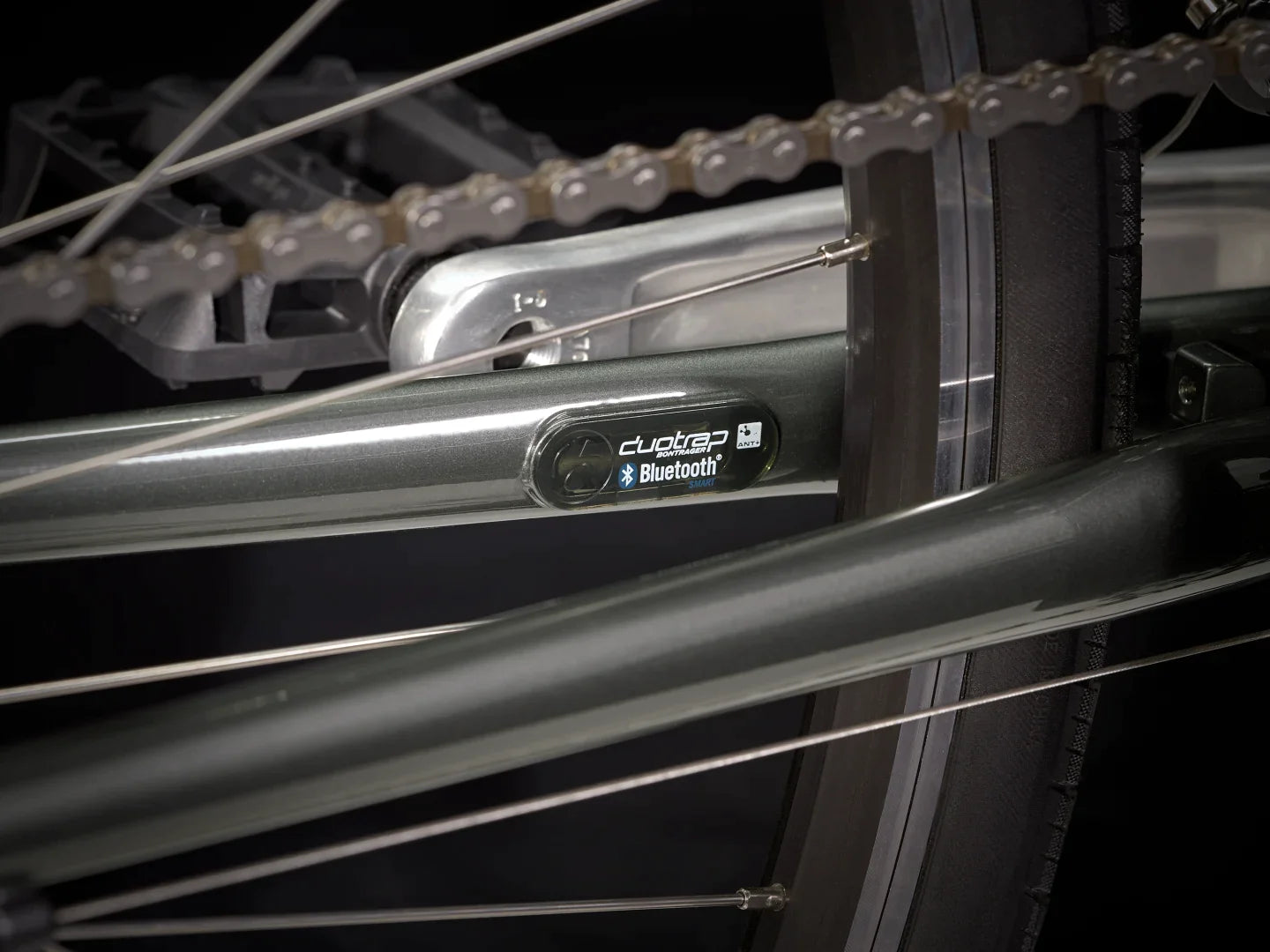

| Chassis | Alpha Gold Aluminum mounts, rack and fender mounts, DuoTrap S compatible, cantilever brake mount, 135x5mm QR |
|---|---|
| Fork | FX Steel, Threadless Steel Steerer, Rack Mounts, Cantilever Brake Mount, 405mm Axle Head, 5x100mm QR |
Wheels
| Front hub | Formula FM21 alloy, QR 100x5mm |
|---|---|
| Front locking | Formula QR22 |
| Rear hub | Formula FM31 alloy, 135x5mm QR |
| Circle | Bontrager Connection, alloy, double chamber, 32 hole, Schrader valve |
| Tire | Bontrager H2 Comp, cable bead, 30tpi, 700x35c" |
| Max. dimensions of the tyre | 38c without fenders, 35c with fenders |
Transmission
| Command | Shimano Altus EF500, 7 speed |
|---|---|
| Front derailleur | Shimano Tourney TY510, 34.9mm clamp, top swing, dual pull |
| Rear derailleur | Shimano Altus M310 |
| Crankset | Forged alloy, 48/38/28, chain guard, 170mm length |
| Central movement | VP BC73, 68mm, with thread |
| Cassette | SunRace MFM300 freewheel, 14-34, 7 speeds |
| Chain | KMC Z7 |
| Pedal | Wellgo nylon platform |
Component i
| Saddle | Bontrager Sports |
|---|---|
| Seatpost | Bontrager alloy, 27.2mm, 12mm offset, 330mm length |
| *Handlebar |
Size: S, M, L Bontrager Riser, steel, 25.4mm, 30mm rise, 600mm width |
|
Size: XL, XXL Bontrager Riser, steel, 25.4mm, 30mm rise, 620mm width |
|
| Knobs | Bontrager Satellite |
| *Handlebar stem |
Size: S, M Bontrager Alloy, 25.4mm clamp, 10 degrees, 90mm length |
|
Size: L, XL, XXL Bontrager Alloy, 25.4mm clamp, 10 degrees, 110mm length |
|
| Headset | Sealed cartridge bearings, 1-1/8" threadless |
| Brake | Alloy Tektro, linear draft |
| Weight | M - 12.57kg/27.72lbs |
|---|---|
| Weight Limit | This model has an overall maximum limit (combined weight of bike, rider and load) of 136kg (300 lbs). |
We reserve the right to make changes to product information on the site at any time without notice, including equipment, specifications, models, colors, materials and prices. Due to supply chain issues, compatible parts may be replaced at any time without notice.
Bike and frame weights are for pre-production painted products at the time of printing. The weight of the finished product may vary.
Measures
| Measure | Rider height | Inside leg |
|---|---|---|
| S |
155 - 165 cm 5'1" - 5'5" |
72 - 78 cm 28" - 31" |
| M |
165 - 175 cm 5'5" - 5'9" |
77 - 83 cm 30" - 33" |
| L |
175 - 186 cm 5'9" - 6'1" |
82 - 88 cm 32" - 35" |
| XL |
186 - 197 cm 6'1" - 6'6" |
87 - 93 cm 34" - 37" |
| 2XL |
197 - 203 cm 6'6" - 6'8" |
92 - 95 cm 36" - 37" |
