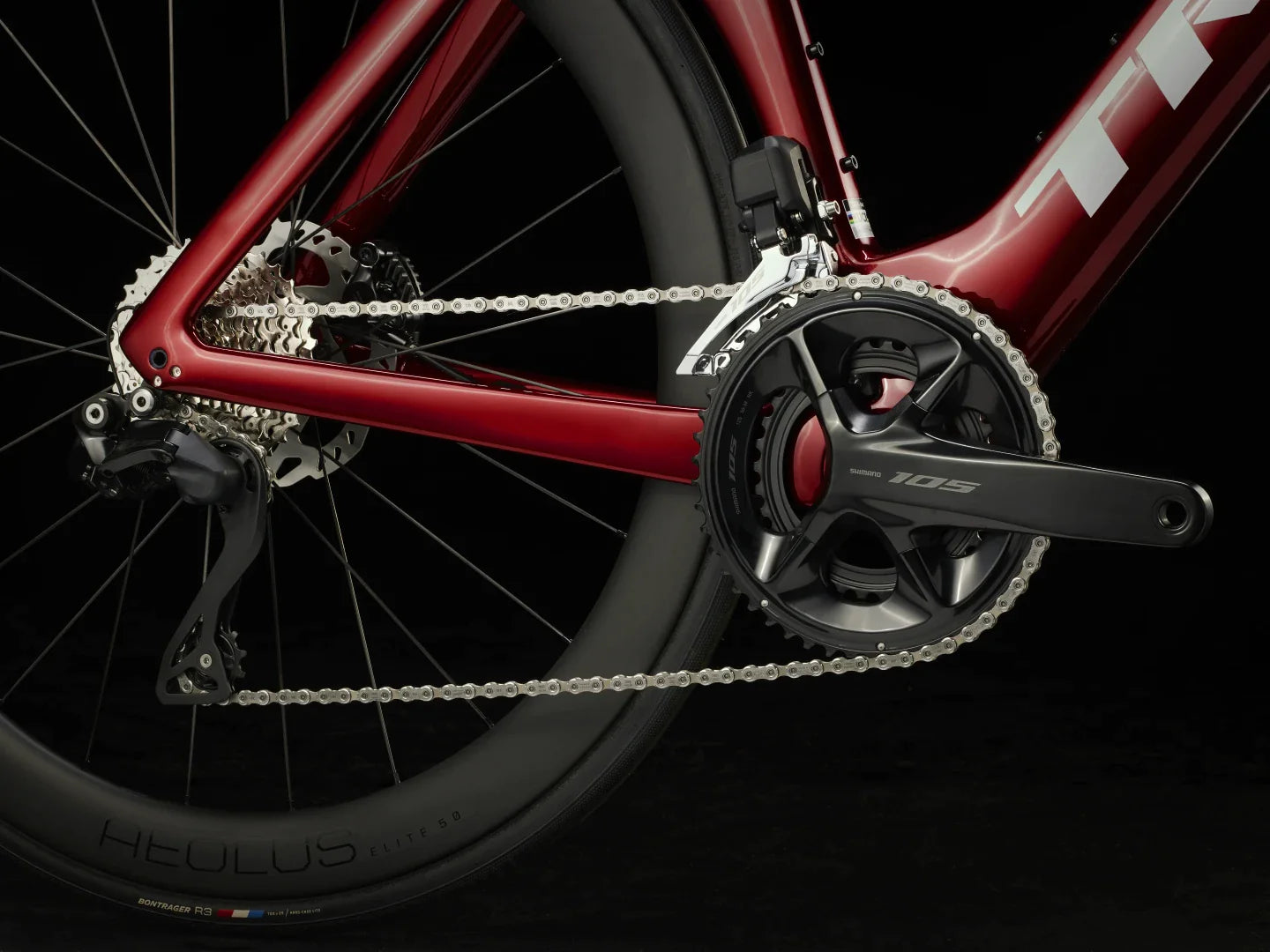

Trek Madone SL 6 Jan 7 2024
Trek Madone SL 6 Jan 7 2024
Madone SL 6 offers legendary speed, cutting-edge technology and incredible ride quality. All in a 500 Series OCLV Carbon package made for lightness and speed to express you to the max in road racing. IsoFlow technology smoothes out road roughness, reducing weight and offering a key aerodynamic advantage over the competition. Numerous features developed for speed, such as the new Kammtail aerodynamic profiles, the convenient Shimano 105 Di2 electronic drivetrain, carbon wheels and invisible cable routing, make it an uncompromising racing machine.
Specifications
*Note: Specifications apply to all sizes unless listed separately
Chassis | 500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube profile, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, 142x12mm thru axle |
---|---|
Fork | Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100mm thru axle |
Weight | 56" - 8.40 kg/18.52 lbs |
---|---|
Weight Limit | This bike has a maximum overall weight limit (combined weight of bike, rider and load) of 125kg. |
Charger | Charging cable supplied |
---|
Command | Shimano 105 R7170, 12 speed |
---|---|
Front derailleur | Shimano 105 R7150 Di2, weld-on, low clamp |
Rear derailleur | Shimano 105 R7150 Di2, 34T max cog |
*Crankset |
Measure: 47 Shimano 105 R7100, 50/34, length 165mm |
Measure: 50, 52 Shimano 105 R7100, 50/34, length 170mm |
|
Measure: 54, 56 Shimano 105 R7100, 50/34, length 172.5mm |
|
Measure: 58, 60, 62 Shimano 105 R7100, 50/34, length 175mm |
|
Central movement | Praxis, T47 threaded, internal bearing |
Cassette | Shimano 105 7101, 11-34, 12 speed |
Chain | Shimano SLX M7100, 12 speed |
Max. size of the crown | 1x: 50T, 2x: 54/40 |
Front wheel | Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 100x12mm thru axle |
---|---|
Rear wheel | Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 50mm rim profile, Shimano 11-speed freehub, 142x12mm thru axle |
Front locking | Bontrager Switch thru axle, removable lever |
Rear locking | Bontrager Switch thru axle, removable lever |
Tire | Bontrager R3 Hard-Case Lite, aramid bead, 120tpi, 700x25mm |
Max. dimensions of the tyre | 32mm (as measured, see manual for details) |
*Saddle |
Measure: 47, 50, 52 Bontrager Aeolus Comp, steel rails, 155mm width |
---|---|
Measure: 54, 56, 58, 60, 62 Bontrager Aeolus Comp, steel rails, 145mm width |
|
*Seatpost |
Measure: 47, 50, 52, 54 Madone aero carbon seatpost, 0mm offset, short |
Measure: 56, 58, 60, 62 Madone aero carbon seatpost, 0mm offset, long |
|
*Handlebar |
Measure: 47 Bontrager RSL Aero, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 35cm control width, 38cm drop width |
Measure: 50, 52 Bontrager RSL Aero, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 37cm control width, 40cm drop width |
|
Measure: 54, 56 Bontrager RSL Aero, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 42cm width |
|
Measure: 58, 60, 62 Bontrager RSL Aero, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 41cm control width, 44cm drop width |
|
Handlebar tape | Bontrager Supertack Perf Tape |
*Handlebar stem |
Measure: 47 Trek RCS Pro, -7 degrees, 70mm length |
Measure: 50 Trek RCS Pro, -7 degrees, 80mm length |
|
Measure: 52, 54 Trek RCS Pro, -7 degrees, 90mm length |
|
Measure: 56, 58 Trek RCS Pro, -7 degrees, 100mm length |
|
Measure: 60, 62 Trek RCS Pro, -7 degrees, 110mm length |
|
Brake | Shimano 105 hydraulic disc |
Brake rotor | Shimano RT70, centerlock, 160mm |
Disk size | Max brake rotor size: 160mm front and rear |
We reserve the right to make changes to product information on the site at any time without notice, including equipment, specifications, models, colors, materials and prices. Due to supply chain issues, compatible parts may be replaced at any time without notice.
Bike and frame weights are for pre-production painted products at the time of printing. The weight of the finished product may vary.
Measures
Measure | Rider height | Inside leg |
---|---|---|
47 |
152 - 158 cm 5'0" - 5'2" |
71 - 75 cm 28" - 30" |
50 |
158 - 163 cm 5'2" - 5'4" |
74 - 77 cm 29" - 30" |
52 |
163 - 168 cm 5'4" - 5'6" |
76 - 79 cm 30" - 31" |
54 |
168 - 174 cm 5'6" - 5'9" |
78 - 82 cm 31" - 32" |
56 |
174 - 180 cm 5'9" - 5'11" |
81 - 85 cm 32" - 33" |
58 |
180 - 185 cm 5'11" - 6'1" |
84 - 87 cm 33" - 34" |
60 |
185 - 190 cm 6'1" - 6'3" |
86 - 90 cm 34" - 35" |
62 |
190 - 195 cm 6'3" - 6'5" |
89 - 92 cm 35" - 36" |
