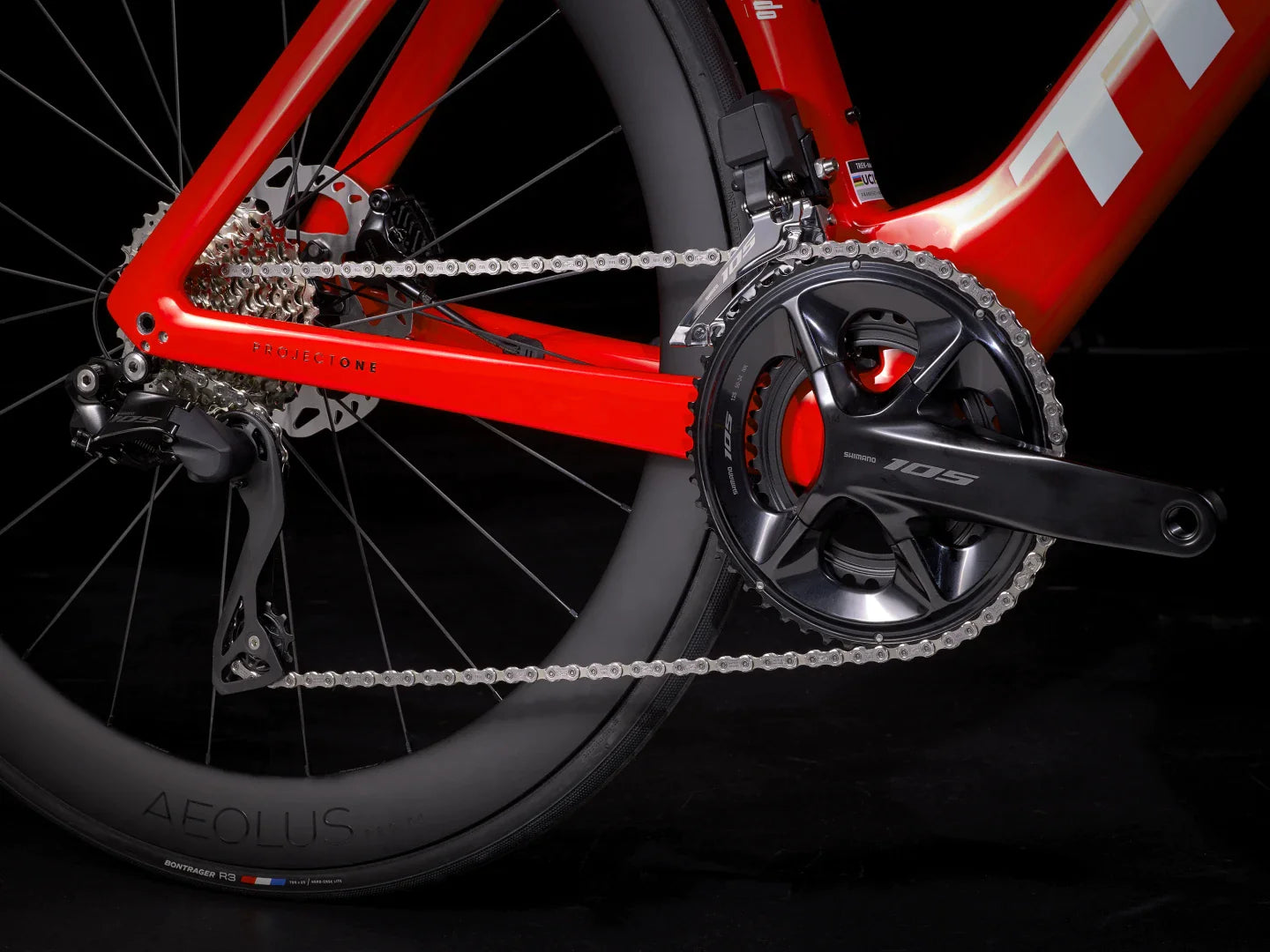

Trek Madone SLR 6 Gen 7
Trek Madone SLR 6 Gen 7
The Madone SLR 6 is a racing machine devoted to speed. It all starts with an 800 Series OCLV Carbon frame based on exclusive IsoFlow technology, designed to improve aerodynamics, reduce weight and smooth the road. Added to this is a series of tireless components, such as the 12-speed Shimano 105 Di2 wireless electronic transmission to handle the challenges of competitions and quickly change speed when the going gets tough. Plus, it features upgrades that make a difference, like high-profile carbon rims to maximize the aerodynamic effect.
Specifications
*Note: Specifications apply to all sizes unless listed separately
Chassis | 800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube profile, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, 142x12mm thru axle |
---|---|
Fork | Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100mm thru axle |
Chassis alignment | H1.5 Race |
Weight | 56 - 7.75kg |
---|---|
Weight Limit | This model has an overall maximum limit (combined weight of bicycle, rider and load) of 125kg. |
Drums | Shimano BT-DN300 |
---|---|
Charger | Charging cable supplied |
Command | Shimano 105 R7170, 12 speed |
---|---|
Front derailleur | Shimano 105 R7150 Di2, weld-on, low clamp |
Rear derailleur | Shimano R7150 |
*Crankset |
Measure: 47 Shimano 105 R7100, 50/34, length 165mm |
Measure: 50, 52 Shimano 105 R7100, 50/34, length 170mm |
|
Measure: 54, 56, 58 Shimano 105 R7100, 50/34, length 172.5mm |
|
Measure: 60, 62 Shimano 105 R7100, 50/34, length 175mm |
|
Central movement | Praxis, T47 threaded, internal bearing |
Cassette | Shimano 105 7100, 11-34, 12 speed |
Chain | Shimano SLX M7100, 12 speed |
Max. size of the crown | 1x: 50T, 2x: 54/40 |
Front wheel | Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle |
---|---|
Rear wheel | Bontrager Aeolus Pro 51, Tubeless Ready, Shimano 11/12 speed freehub, 142x12mm thru axle |
Front locking | Bontrager Switch thru axle, removable lever |
Rear locking | Bontrager Switch thru axle, removable lever |
Tire | Bontrager R3 Hard-Case Lite, aramid bead, 120tpi, 700x25mm |
Max. dimensions of the tyre | 32mm (as measured, see manual for details) |
*Saddle |
Measure: 47, 50, 52 Bontrager Aeolus P2 Elite, 155mm width |
---|---|
Measure: 54, 56, 58, 60, 62 Bontrager Aeolus Elite, austenite rails, 145mm width |
|
*Seatpost |
Measure: 47, 50, 52, 54 Madone aero carbon seatpost, 0mm offset, short |
Measure: 56, 58, 60, 62 Madone aero carbon seatpost, 0mm offset, long |
|
*Handlebar/stem (integrated) |
Measure: 47 Madone integrated handlebar/stem, OCLV Carbon, 80mm reach, 124mm drop, 35cm control width, 38cm drop width, 80mm stem length |
Measure: 50, 52 Madone integrated handlebar/stem, OCLV Carbon, 80mm reach, 124mm drop, 37cm control width, 40cm drop width, 90mm stem length |
|
Measure: 54 Madone integrated handlebar/stem, OCLV Carbon, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 90mm stem length |
|
Measure: 56, 58 Madone integrated handlebar/stem, OCLV Carbon, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 100mm stem length |
|
Measure: 60, 62 Madone integrated handlebar/stem, OCLV Carbon, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 110mm stem length |
|
Handlebar tape | Bontrager Supertack Perf Tape |
Brake | Shimano 105 hydraulic disc |
Brake rotor | Shimano RT70, centerlock, 160mm |
Disk size | Max brake rotor size: 160mm front & rear |
We reserve the right to make changes to product information on the site at any time without notice, including equipment, specifications, models, colors, materials and prices. Due to supply chain issues, compatible parts may be replaced at any time without notice. Prices shown are the manufacturer's suggested retail prices.
Measures
Measure | Rider height | Inside leg |
---|---|---|
47 |
152 - 158 cm 5'0" - 5'2" |
71 - 75 cm 28" - 30" |
50 |
158 - 163 cm 5'2" - 5'4" |
74 - 77 cm 29" - 30" |
52 |
163 - 168 cm 5'4" - 5'6" |
76 - 79 cm 30" - 31" |
54 |
168 - 174 cm 5'6" - 5'9" |
78 - 82 cm 31" - 32" |
56 |
174 - 180 cm 5'9" - 5'11" |
81 - 85 cm 32" - 33" |
58 |
180 - 185 cm 5'11" - 6'1" |
84 - 87 cm 33" - 34" |
60 |
185 - 190 cm 6'1" - 6'3" |
86 - 90 cm 34" - 35" |
62 |
190 - 195 cm 6'3" - 6'5" |
89 - 92 cm 35" - 36" |
