Trek Rail 5 625W Gen 3
Trek Rail 5 625W Gen 3
Rail 5 625 is an electric mountain bike created to tackle the most challenging routes. It features the same top-of-the-line technologies as our muscle trail bikes and is enhanced by a powerful Bosch motor that turns the bike into a personal ascent shuttle.
The technology you get
Sturdy alloy frame equipped with 150mm rear travel and integrated removable 625Wh battery, 160mm RockShox 35 Gold RL fork optimized for e-MTB and latest generation Bosch Performance Line CX Smart System capable of reaching speeds of up to 25km/h and equipped LED remote control with Bluetooth® connectivity and integrated navigation and activity monitoring functions via eBike Flow app. Plus, 1x12 drivetrain with a wide range of gears to always find the ideal cadence for the engine, telescopic seat post, powerful 4-piston brakes for maximum safety on descents and 29er wheels with robust 2.6" tires.
Specifications
*Chassis |
Size: S Alpha Platinum Aluminum, curved top tube, RIB (Removable Integrated Battery) system, tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel |
---|---|
Size: M, L, XL Alpha Platinum Aluminum, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel |
|
Fork | RockShox 35 Gold, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44mm offset, oversized eMTB fork, Boost110, Maxle Stealth 15mm, 160mm travel |
Suspension | RockShox Deluxe Select+ RT, 230mm x 57.5mm |
Max. excursion fork compatible | 170mm (580mm from pin to crown) |
Front hub | Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle |
---|---|
Rear hub | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12mm thru axle |
Rear locking | Bontrager Switch thru axle, removable lever |
Circle | Alex MD35, tubeless compatible, 32 holes, 35mm width, Presta valve |

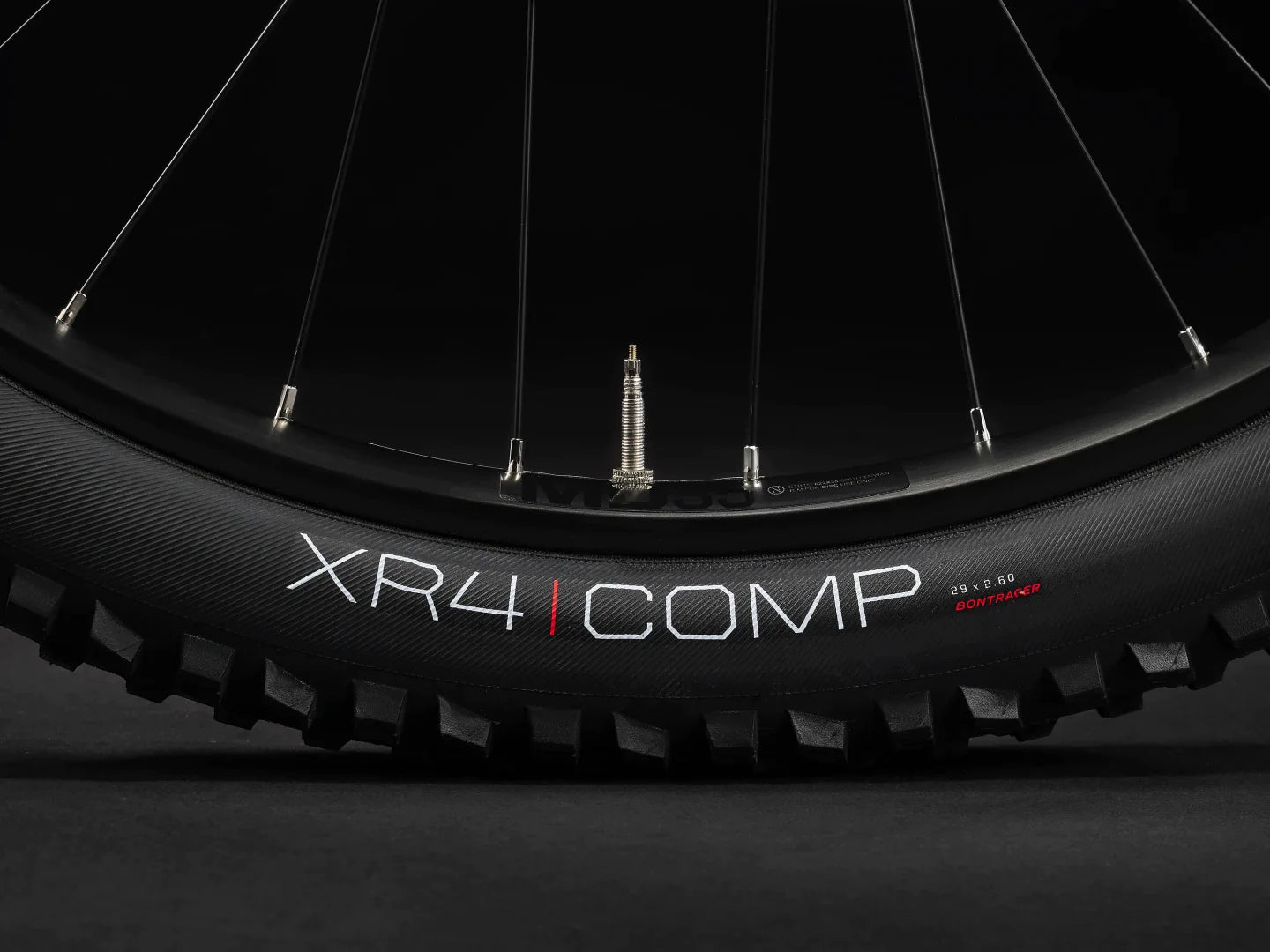

Tire | Bontrager XR4 Comp, cable bead, 30tpi, 29x2.60" |
Max. dimensions of the tyre | Frame: 29x2.40", Fork: See manufacturer |
Command | Shimano Deore M6100, 12 speed |
---|---|
Rear derailleur | Shimano Deore M6100, long cage |
Crankset | E*thirteen E*spec Plus, length 165mm |
Crown | E*thirteen E*spec, 34 alloy teeth, 55mm chainline |
Cassette | SunRace CSMZ800 11-51, 12 speed |
Chain | Shimano Deore M6100 |
Pedal | VP-536 nylon platform |
Max. size of the crown | 1x: 34T |
Saddle | Bontrager Arvada, steel rails, 138mm width |
---|---|
*Seatpost |
Size: S TranzX JD-YSP18, 100mm travel, internal cable routing, 31.6mm, 361mm length |
Size: M, L, XL TranzX JD-YSP18, 130mm travel, internal cable routing, 31.6mm, 425mm length |
|
Handlebar | Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
Knobs | Bontrager XR Trail Comp, nylon block |
Handlebar stem | Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degrees, 50mm length |
*Brake |
Size: S, M, L, XL Tektro HD-M745 hydraulic disc |
Size: S, M, L, XL Tektro HD-M745 4-piston hydraulic disc |
|
Brake rotor | Tektro, 6 bolt, 203mm |
Disk size | Max brake rotor size - Frame: 200mm, Fork: see fork manufacturer |
Drums | Bosch PowerTube 625Wh, intelligent system |
---|---|
Charger | Bosch standard 4A, 230V, intelligent system |
Motor | Bosch Performance Line CX, Smart System, magnesium motor body, 85 Nm |
Computer | Bosch LED remote control, intelligent system |
Weight | M - 24.88kg/54.86lbs |
---|---|
Weight Limit | This model has an overall maximum limit (combined weight of bicycle, rider and load) of 136kg. |
We reserve the right to make changes to product information on the site at any time without notice, including equipment, specifications, models, colors, materials and prices. Due to supply chain issues, compatible parts may be replaced at any time without notice.
Measures
Measure | Rider height | Inside leg |
---|---|---|
S |
155 - 165 cm 5'1" - 5'5" |
74 - 78 cm 29" - 31" |
M |
165 - 176 cm 5'5" - 5'9" |
79 - 83 cm 31" - 33" |
L |
177 - 188 cm 5'10" - 6'2" |
84 - 89 cm 33" - 35" |
XL |
188 - 195 cm 6'2" - 6'5" |
89 - 91 cm 35" - 36" |
