Trek Supercaliber SL 9.7 AXS Gen 2 (24)
Trek Supercaliber SL 9.7 AXS Gen 2 (24)
Couldn't load pickup availability
The Supercaliber SL 9.7 AXS is a carbon XC mountain bike built for shredding singletrack. It's based on a carbon frame that balances stiffness and elasticity to let you unleash all the power when you need it most. The IsoStrut rear suspension offers enough travel to soften the stresses of the rougher terrain typical of modern XC trails. It's ready to tackle any trail thanks to a fully wireless 12-speed SRAM GX AXS drivetrain for precise shifts, even under load.
Specifications
*Note: Specifications apply to all sizes unless listed separately
| Chassis | SL OCLV Mountain Carbon, IsoStrut, UDH, 80mm travel |
|---|---|
| Fork | RockShox Reba RL, Solo Air spring, Motion Control damper, remote lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 110mm travel |
| Suspension | IsoStrut Trek, RockShox SIDLuxe, 2-position shock remote control |
| Suspension lever | RockShox TwistLoc Ultimate |
| Max. excursion fork compatible | 120mm (533mm pin-head) |

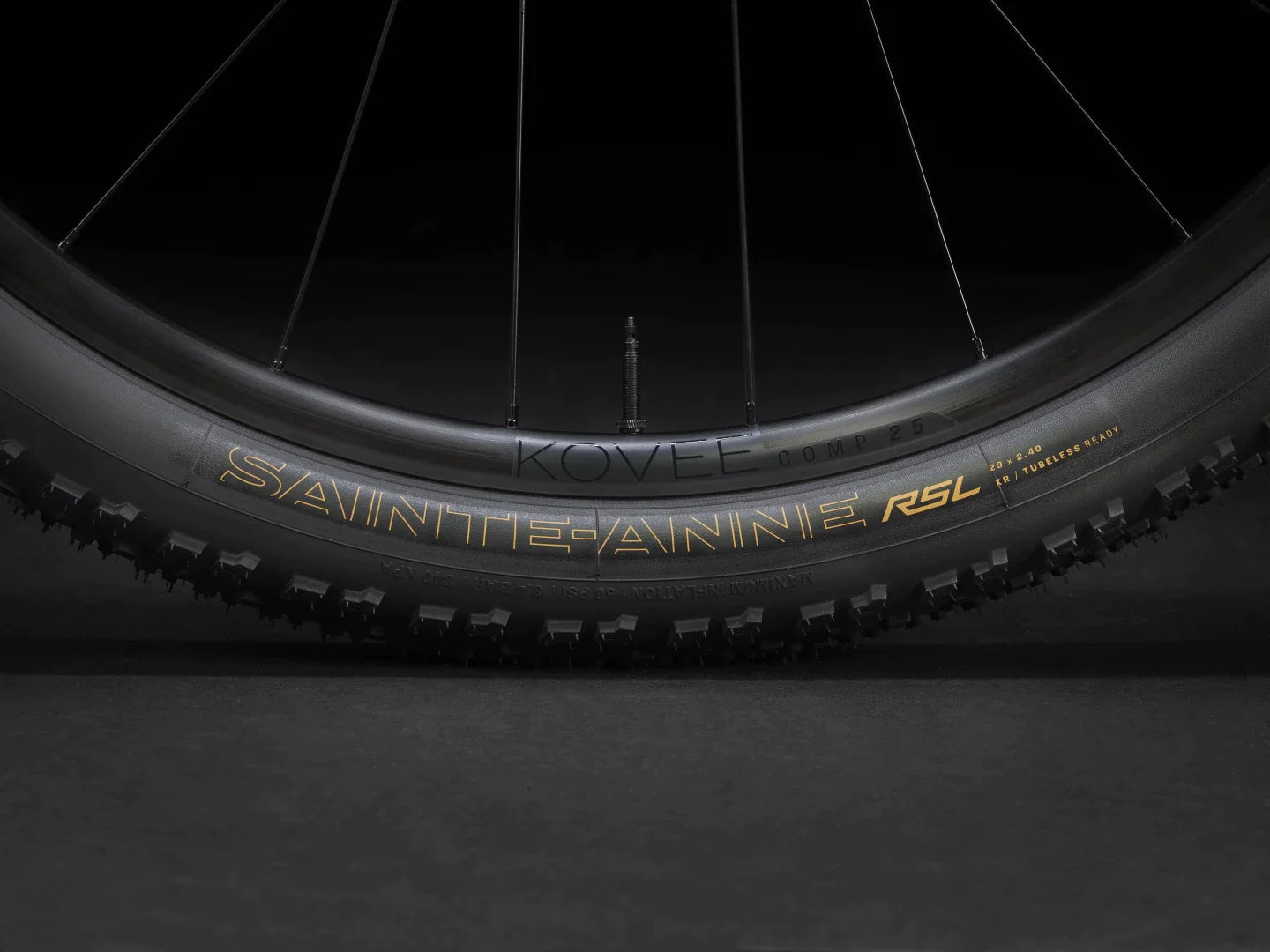

| Front wheel | Bontrager Kovee Comp 25, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle |
|---|---|
| Rear wheel | Bontrager Kovee Comp 25, Tubeless Ready, Rapid Drive 108, Boost148, 12mm thru axle |
| Max. dimensions of the tyre | Frame: 29x2.40", Fork: Consult manufacturer data |
| Command | SRAM Eagle AXS POD |
|---|---|
| Rear derailleur | SRAM GX Eagle AXS, T-Type |
| *Crankset |
Measure: S, M SRAM GX Eagle, DUB, T-Type, 34 teeth, 55mm chainline, 170mm length |
|
Measure: M/L, L, XL SRAM GX Eagle, DUB, T-Type, 34 teeth, 55mm chainline, 175mm length |
|
| Central movement | SRAM DUB, 92mm, PressFit |
| Cassette | SRAM Eagle XS-1275, T-Type,10-52, 12 speed |
| Chain | SRAM GX Eagle, T-Type, 12 speed |
| Max. size of the crown | 1x: 38T, min 30T |
| *Seatpost |
Measure: S Bontrager Line Dropper, 100mm travel, internal cable routing, 31.6mm, 345mm length |
|---|---|
|
Measure: M, M/L Bontrager Line Dropper, 125mm travel, internal cable routing, 31.6mm, 395mm length |
|
|
Measure: L, XL Bontrager Line Dropper, 150mm travel, internal cable routing, 31.6mm, 440mm length |
|
| Handlebar | Bontrager Line Pro, OCLV Carbon, 35mm, 15mm rise, 750mm width |
| *Handlebar stem |
Measure: S, M Bontrager Elite, 35mm, 13°, 60mm length |
|
Measure: M/L Bontrager Elite, 35mm, 13°, 70mm length |
|
|
Measure: L Bontrager Elite, 35mm, 13°, 80mm length |
|
|
Measure: XL Bontrager Elite, 35mm, 13°, 90mm length |
|
| Headset | FSA IS-2, 1-1/8" top, 1.5" bottom |
| Brake | SRAM Level Bronze 2-piston hydraulic disc |
| *Brake rotor |
Measure: S, M, M/L, L, XL SRAM CenterLine, 6-bolt, rounded edge, 160mm |
|
Measure: S, M, M/L, L, XL SRAM CenterLine, 6-bolt, rounded edge, 180mm |
|
| Disk size | Max brake rotor size: 160mm front and rear |
| Drums | SRAM eTap battery (with charger) |
|---|---|
| Instrument | Bontrager Switch Lever, with tool |
| Weight | M - 11.80 kg / 26.02 lbs (with TLR sealant, without tube) |
|---|---|
| Weight Limit | This model has an overall maximum limit (combined weight of bicycle, rider and load) of 136kg. |
We reserve the right to make changes to product information on the site at any time without notice, including equipment, specifications, models, colors, materials and prices. Due to supply chain issues, compatible parts may be replaced at any time without notice.
Bike and frame weights are for pre-production painted products at the time of printing. The weight of the finished product may vary.
Measures
| Measure | Rider height | Inside leg |
|---|---|---|
| S |
155 - 165 cm 5'1" - 5'5" |
74 - 78 cm 29" - 31" |
| M |
165 - 176 cm 5'5" - 5'9" |
79 - 83 cm 31" - 33" |
| M/L |
173 - 180 cm 5'8" - 5'11" |
81 - 86 cm 32" - 34" |
| L |
177 - 188 cm 5'10" - 6'2" |
84 - 89 cm 33" - 35" |
| XL |
188 - 195 cm 6'2" - 6'5" |
89 - 91 cm 35" - 36" |
